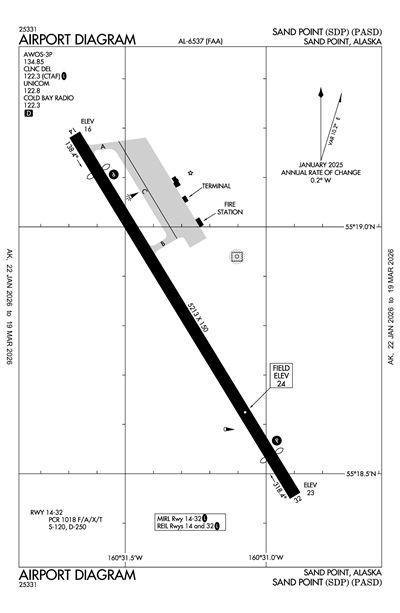

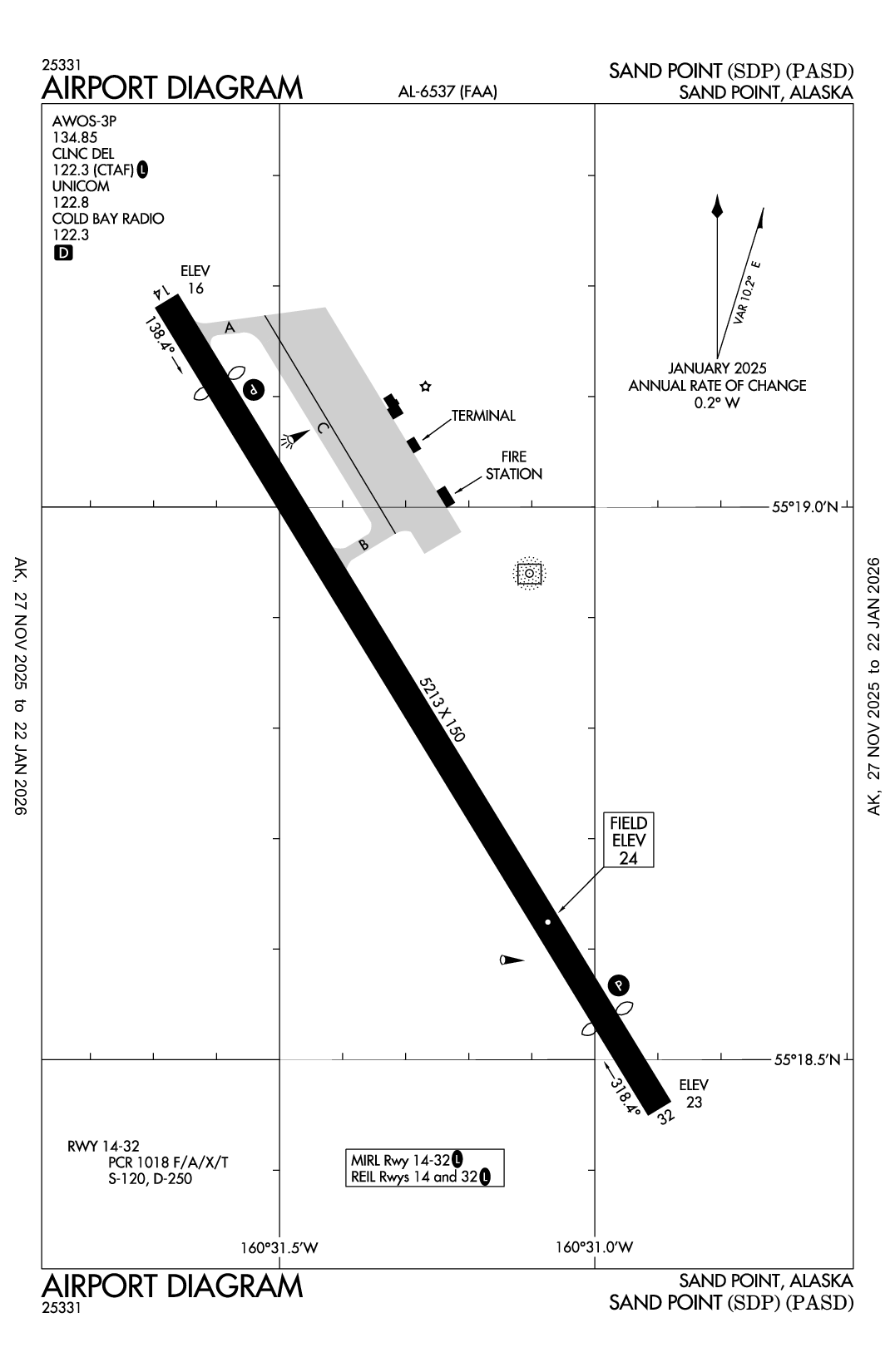

SAND POINT - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PASD
SAND POINT
PublicPUB

2 miles SW of SAND POINT, AK
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
55° 18' 49"N 160° 31' 17"W
24' MSL
1024' MSL
11E
JET A
COLD BAY (CDB)
COLD BAY
ANCHORAGE (ZAN)
11/28/24-12/26/24
PASD VFR
2:56 AM AKST
Clear
10sm
38°F
35°F
28.80"Hg
270° 6kts
AO2 SLP755 T00330017 10033 20028 51011 $
PASD 231156Z AUTO 27006KT 10SM CLR 03/02 A2880 RMK AO2 SLP755 T00330017 10033 20028 51011 $

PASD FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.3

AWOS-3P

AWOS-3P
907-383-5387
134.85

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PASD
Mon, 12/23 2:34 AM AKST
Mon, 12/23 3:00 AM AKST - Tue, 12/24 3:00 AM AKST
VFR
3:00 AM AKST - 1:00 PM AKST
Broken 3,500'
Scattered 1,500'
6sm
260° 5kts
MVFR
1:00 PM AKST - 6:00 PM AKST
Broken 2,500'
Scattered 1,500'
6sm
220° 7kts
MVFR
6:00 PM AKST - 3:00 AM AKST
Overcast 2,500'
Broken 1,500'
6sm
170° 10kts
PASD 231134Z 2312/2412 26005KT P6SM SCT015 BKN035
   FM232200 22007KT P6SM SCT015 BKN025
   FM240300 17010KT P6SM BKN015 OVC025
PASD
Domestic
12/19/242339Z !SDP 12/066 SDP SVC AUTOMATED WX BCST SYSTEM UNREL 2412192339-2501251500EST
12/18/241606Z !SDP 12/056 SDP RWY 32 PAPI U/S 2412181606-2501261500EST
11/21/241705Z !SDP 11/062 SDP RWY 14 PAPI U/S 2411211705-2502221500EST
No
JAN - DEC MON - SAT 0800-1700
ALASKA DOT&PF SOUTHCOAST REGION
P.O. BOX 112506
JUNEAU, AK 99811-2506
Phone: (907) 465-1784
HAROLD KREMER
BOX 97
COLD BAY, AK 99571
Phone: 907-532-5000
COLD BAY FSS (CDB)
Toll Free: 1-800-478-7250
SDP
--
ACTVT REIL RWY 14 & 32; PAPI RWY 14 & 32; MIRL RWY 14/32 - CTAF.
ACTVT ROTG BCN - CTAF.
N/A
Yes - Lighted
Yes
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 14/32

5213 ft. x 150 ft.
ASPH
Good
GRVD
MED

120,000lbs
250,000lbs
--
--
  Runway 14 Runway 32
True Heading 148°328°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 55° 19' 11"N 55° 18' 27"N
Longitude 160° 31' 41"W 160° 30' 54"W
Elevation 16' 23'
Threshold Crossing Height 31 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3.6° 3.6°
Visual Slope Indicator P4L P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1BIRDS INVOF ARPT.
A110-10SAND POINT WX 0800-1800 - 132.05 OR 907-383-2403.
A110-280-320 FT CLIFF E SIDE OF RWY; EXP TURB ON APCH RWY 32.
A110-9SAND LRGR GRADATION THAN RECMD/SEE AC150/5200-30.
SAND POINT (ICAO: PASD, IATA: SDP) is a public airport located in SAND POINT, AK.
