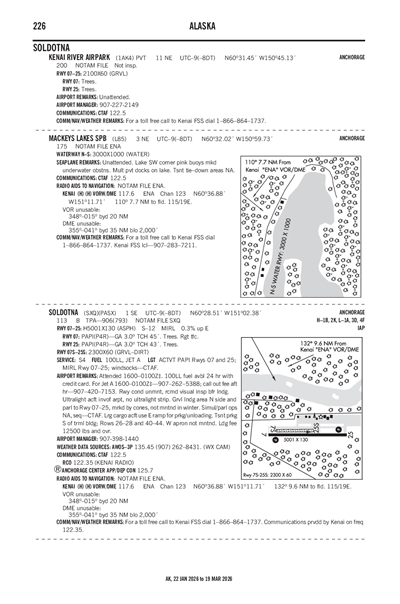

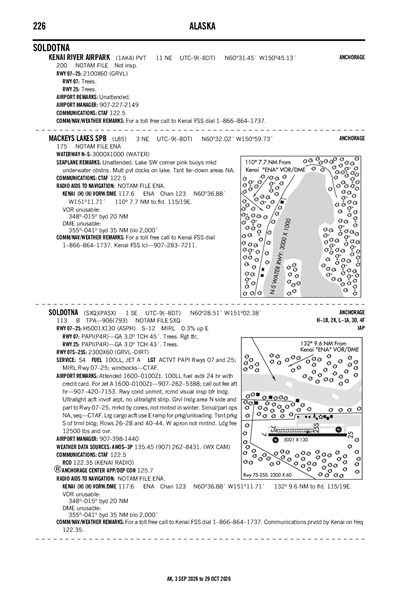

SOLDOTNA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PASX
SOLDOTNA
PublicPUB

1 miles SE of SOLDOTNA, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
60° 28' 31"N 151° 02' 23"W
113' MSL
906' MSL
15E
JET A, 100LL
KENAI (ENA)
ANCHORAGE
ANCHORAGE (ZAN)
11/28/24-12/26/24
PASX VFR
2:56 AM AKST
Broken 9,000'
Few 7,000'
10sm
40°F
30°F
28.74"Hg
060° 6kts
AO2 SLP739 60000 T00441011 10044 20039 55002
PASX 231156Z 06006KT 10SM FEW070 BKN090 04/M01 A2874 RMK AO2 SLP739 60000 T00441011 10044 20039 55002
Add Your Business

PASX FBOs

Promote Listing
Missionary Aviation Repair Center
UNICOM: 122.5
Phone: (907) 262-5388
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.5

AWOS-3P

AWOS-3P
907-262-8431
 135.45

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAEN (9nm)
Mon, 12/23 2:40 AM AKST
Mon, 12/23 3:00 AM AKST - Tue, 12/24 3:00 AM AKST
VFR
3:00 AM AKST - 11:00 AM AKST
Showers in vicinity
Overcast 6,000'
Scattered 4,000'
6sm
010° 15kts
VFR
Temporary 3:00 AM AKST - 6:00 AM AKST
Light Rain
Broken 4,000'
N/A
Calm
VFR
11:00 AM AKST - 3:00 AM AKST
Showers in vicinity
Broken 4,000'
6sm
040° 12kts
PAEN 231140Z 2312/2412 01015KT P6SM VCSH SCT040 OVC060
   TEMPO 2312/2315 -RA BKN040
   FM232000 04012KT P6SM VCSH BKN040
PASX
Domestic
12/21/241815Z !SXQ 12/028 SXQ NAV OLT NDB U/S 2412211815-2502201500
FDC
9/4/241556Z !FDC 4/9973 SXQ IAP SOLDOTNA, SOLDOTNA, AK.
RNAV (GPS) RWY 7, AMDT 1A...
CAT B CIRCLING MDA 820/HAA 707. DELETE NOTE: RNP APCH. PBN
REQUIREMENTS NOTE: RNP APCH-GPS.
THIS IS RNAV (GPS) RWY 7, AMDT 1B. 2409041556-PERM
9/4/241555Z !FDC 4/9971 SXQ IAP SOLDOTNA, SOLDOTNA, AK.
RNAV (GPS) RWY 25, AMDT 2...
CAT B CIRCLING MDA 820/HAA 707. DELETE NOTE: RNP APCH. PBN
REQUIREMENTS NOTE: RNP APCH-GPS.
THIS IS RNAV (GPS) RWY 25, AMDT 2A. 2409041555-PERM
9/22/231835Z !FDC 3/3671 SXQ ODP SOLDOTNA, SOLDOTNA, AK.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2A...
PROCEDURE NA RWY 7S/25S. 2309221835-2509221833EST
No
0700-1600
CITY OF SOLDOTNA
177 NORTH BIRCH ST
SOLDOTNA, AK 99669
Phone: 907-262-9107
KYLE KORNELIS
177 NORTH BIRCH ST
SOLDOTNA, AK 99669
Phone: 907-398-1440
KENAI FSS (ENA)
Toll Free: 1-866-864-1737
SXQ
--
ACTVT PAPI RWY 07 & 25; MIRL RWY 07/25; WINDSOCKS - CTAF.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Major
Major
None
None
Avionics
Charter Service
Aircraft Rental

Runway 07/25

5001 ft. x 130 ft.
ASPH
Fair
NONE
MED

12,000lbs
--
--
--
  Runway 07 Runway 25
True Heading 90°270°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 60° 28' 30"N 60° 28' 30"N
Longitude 151° 03' 08"W 151° 01' 28"W
Elevation 95' 112'
Threshold Crossing Height 45 ft. AGL 43 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4R
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 07S/25S

2300 ft. x 60 ft.
GRVL DIRT
Fair
NONE


--
--
--
--
  Runway 07S Runway 25S
True Heading 90°270°
Traffic Pattern
Markings NONE NONE
Markings Condition POOR POOR
Latitude 60° 28' 32"N 60° 28' 32"N
Longitude 151° 02' 57"W 151° 02' 11"W
Elevation 95' 100'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1LRG CARGO ACFT USE E RAMP FOR PRKG/UNLOADING.
A110-10SIMUL/PARL OPS NA; SEQ - CTAF.
A110-11GRVL LNDG AREA N SIDE & PARL TO RWY 07/25; MRKD BY CONES; NOT MNTND IN WINTER.
A110-2TSNT PRKG S OF TRML BLDG; ROWS 26-28 & 40-44.
A110-3W APRON NOT MNTND.
A110-5RWY COND UNMNT; RCMD VISUAL INSP BFR LNDG.
A110-8ULTRALIGHT ACFT INVOF ARPT, NO ULTRALIGHT STRIP.
A110-9WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
SOLDOTNA (ICAO: PASX, IATA: SXQ) is a public airport located in SOLDOTNA, AK.
