iFlightPlanner



...

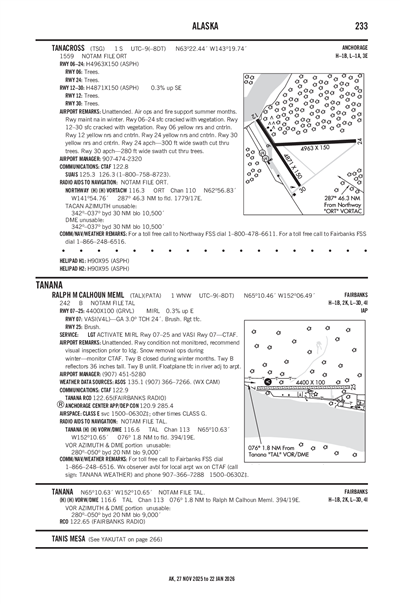

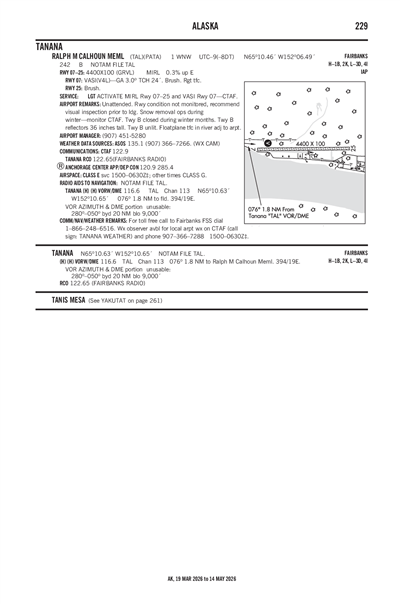

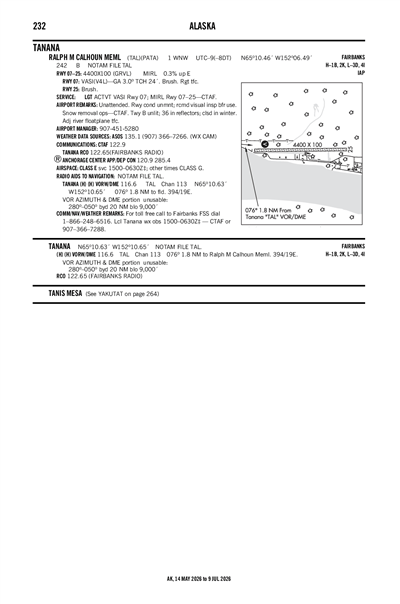

RALPH M CALHOUN MEML - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PATA
RALPH M CALHOUN MEML
PublicPUB

1 miles WNW of TANANA, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
65° 10' 28"N 152° 06' 29"W
242' MSL
1242' MSL
19E
None Listed
FAIRBANKS (FAI)
FAIRBANKS
ANCHORAGE (ZAN)
2/20/25-3/20/25
PATA VFR
5:52 AM AKDT
Overcast 3,200'
10sm
14°F
-1°F
29.56"Hg
Calm
AO2 SLP017 T11001183 TSNO $
PATA 091352Z AUTO 10SM OVC032 M10/M18 A2956 RMK AO2 SLP017 T11001183 TSNO $
Add Your Business

PATA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

ASOS

ASOS
907-366-7266
 135.1

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PATA
Sun, 3/9 3:20 AM AKDT
Sun, 3/9 4:00 AM AKDT - Mon, 3/10 4:00 AM AKDT
MVFR
4:00 AM AKDT - 7:00 AM AKDT
Overcast 2,700'
6sm
080° 12kts
VFR
7:00 AM AKDT - 4:00 AM AKDT
Sky Clear
6sm
060° 7kts
PATA 091120Z 0912/1012 08012KT P6SM OVC027
   FM091500 06007KT P6SM SKC
PATA
Domestic
3/8/251649Z !TAL 03/032 TAL RWY 25 FICON 100 PCT 1/2IN DRY SN OVER COMPACTED SN OBS AT 2503081649. 2503081649-2503091649
3/8/251648Z !TAL 03/031 TAL APRON ALL FICON 1/2IN DRY SN OVER COMPACTED SN OBS AT 2503081648. 2503081648-2503091648
3/8/251648Z !TAL 03/030 TAL TWY ALL FICON 1/2IN DRY SN OVER COMPACTED SN OBS AT 2503081648. 2503081648-2503091648
3/8/251647Z !TAL 03/029 TAL RWY 07 FICON 100 PCT 1/2IN DRY SN OVER COMPACTED SN OBS AT 2503081647. 2503081647-2503091647
11/26/241812Z !TAL 11/098 TAL OBST TOWER LGT (ASR UNKNOWN) 651739.00N152.00W (2.37NM E TAL) 90.0FT AGL U/S 2411261812-2512251812
11/22/240309Z !TAL 11/077 TAL RWY 07 VASI U/S 2411220309-2508031500EST
FDC
12/5/242149Z !FDC 4/2597 TAL ODP RALPH M CALHOUN MEML, TANANA, AK.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1A...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
TAL VOR/DME OUT OF SERVICE. 2412052149-2507172149EST
No
UNATNDD
ALASKA DOT&PF NORTHERN REGION
2301 PEGER RD
FAIRBANKS, AK 99709
Phone: (907) 451-5280
JASON LUDINGTON
2301 PEGER ROAD
FAIRBANKS, AK 99709
Phone: (907) 451-5280
FAIRBANKS FSS (FAI)
Toll Free: 1-866-248-6516
TAL
--
ACTVT MIRL RY 07/25 & VASI RY 07 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 07/25

4400 ft. x 100 ft.
GRAVEL
Good
NONE
MED

--
--
--
--
  Runway 07 Runway 25
True Heading 89°269°
Traffic Pattern Right Left
Markings NSTD NSTD
Markings Condition
Latitude 65° 10' 28"N 65° 10' 28"N
Longitude 152° 07' 21"W 152° 05' 38"W
Elevation 230' 242'
Threshold Crossing Height 24 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator V4L --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1SNOW REMOVAL OPERATIONS DURING WINTER--MONITOR CTAF.
A110-2RY COND NOT MONITORED; RECOMMEND VISUAL INSPECTION PRIOR TO LANDING.
A110-3FLOATPLANE TFC IN RIVER ADJ TO ARPT.
A110-4WX OBSERVER AVBL FOR LOCAL ARPT WX ON CTAF (CALL SIGN: TANANA WEATHER) & PHONE 907-366-7288 0600-2130.
A110-5WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV
A110-6TWY B CLOSED DURING WINTER MONTHS.
A110-7TWY B UNLIT.
A110-8TWY B REFLECTORS 36 INCHES TALL.
RALPH M CALHOUN MEML (ICAO: PATA, IATA: TAL) is a public airport located in TANANA, AK.
