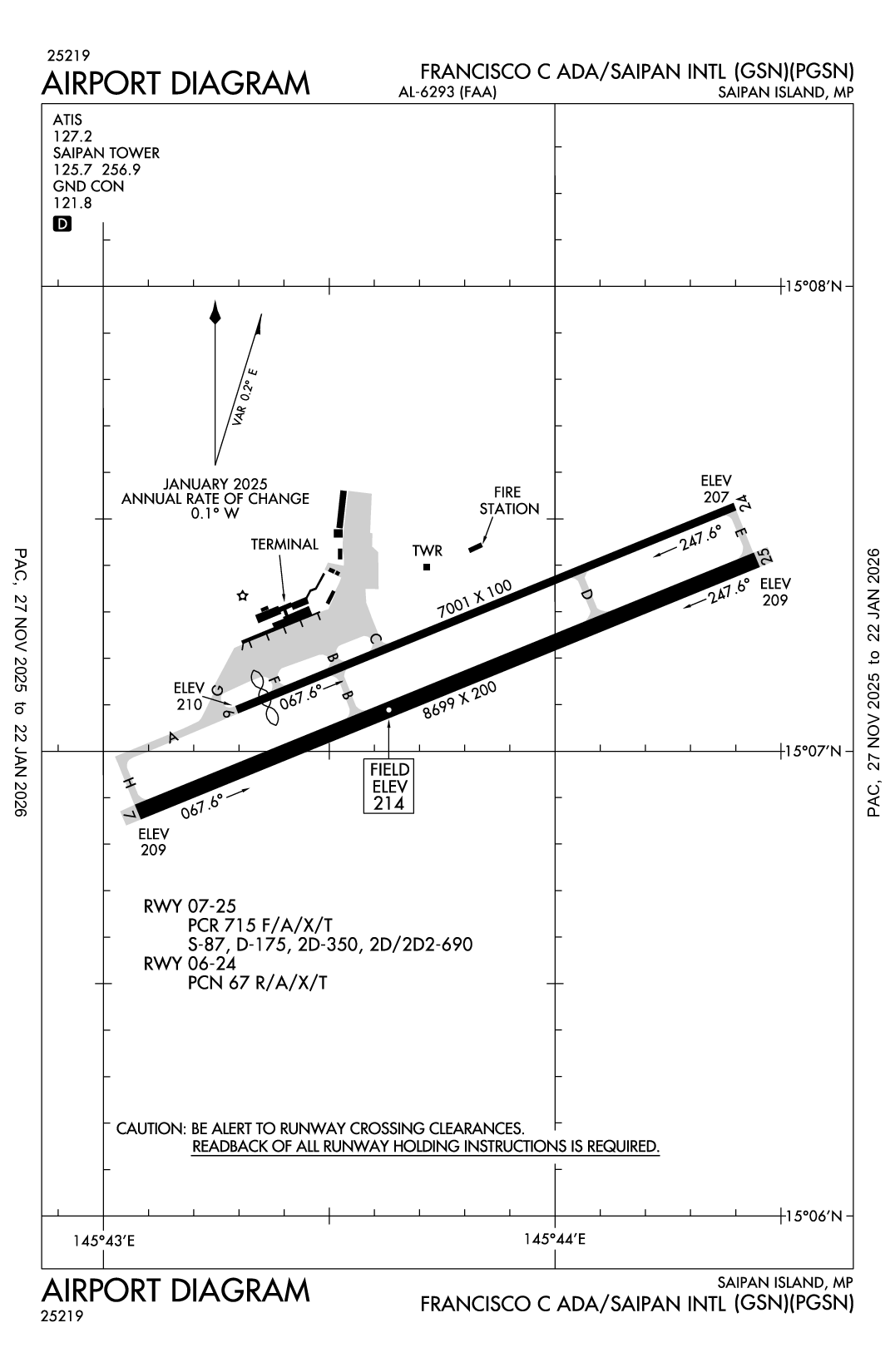

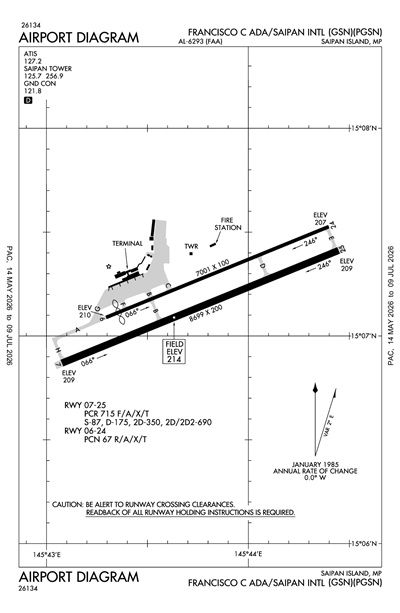

FRANCISCO C ADA/SAIPAN INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PGSN
FRANCISCO C ADA/SAIPAN INTL
PublicPUB

4 miles SW of SAIPAN ISLAND, MP
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
15° 07' 13"N 145° 43' 48"E
214' MSL
1214' MSL
02E
JET A-1+, 100LL, 100
HONOLULU (HNL)
GNC 7
GUAM (ZUA)
11/28/24-12/26/24
PGSN VFR
9:54 PM +10
Few 2,800'
10sm
81°F
73°F
29.90"Hg
090° 5kts
AO2 SLP147 70048 T02720228 10300 20267 51012
PGSN 231154Z 09005KT 10SM FEW028 27/23 A2990 RMK AO2 SLP147 70048 T02720228 10300 20267 51012
Add Your Business

PGSN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
 127.2

Ground

GND/P
 121.8

Tower

LCL/P
 125.7

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PGSN
Mon, 12/23 9:25 PM +10
Mon, 12/23 10:00 PM +10 - Tue, 12/24 10:00 PM +10
VFR
10:00 PM +10 - 10:00 PM +10
Scattered 2,300'
Few 1,700'
6sm
080° 8kts
PGSN 231125Z 2312/2412 08008KT P6SM FEW017 SCT023
PGSN
Domestic
11/10/241321Z !GSN 11/008 GSN RWY 25 PAPI HIGH INTST U/S 2411101321-2501042359EST
9/27/240300Z !GSN 09/019 GSN NAV ILS RWY 07 DME NOT MNT 2409270300-2502012359EST
9/27/240215Z !GSN 09/018 GSN NAV NDB U/S 2409270215-2501152359EST
7/8/241439Z !GSN 07/001 GSN OBST TOWER LGT (ASR UNKNOWN) 151115.12N1454436.81E (5.5NM N GSN) 1499FT (190AGL) U/S 2407081439-2507312359EST
Yes
ALL
COMMONWEALTH PORTS AUTH
PO BOX 501055
SAIPAN, MP 96950-1055
Phone: (670) 237-6500
LEO B. TUDELA
PO BOX 501055
SAIPAN, MP 96950-1055
Phone: 670-237-6500
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
GSN
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
Yes
Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Air Freight
Cargo Handling
Charter Service

Runway 06/24

7001 ft. x 100 ft.
ASPH
Fair
NONE
MED
67 /R/A/X/T
--
--
--
--
  Runway 06 Runway 24
True Heading 68°248°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 15° 07' 05"N 15° 07' 32"N
Longitude 145° 43' 18"E 145° 44' 24"E
Elevation 210' 206'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 07/25

8699 ft. x 200 ft.
ASPH
Fair
GRVD
HIGH

87,000lbs
175,000lbs
350,000lbs
690,000lbs
  Runway 07 Runway 25
True Heading 68°248°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 15° 06' 52"N 15° 07' 25"N
Longitude 145° 43' 05"E 145° 44' 27"E
Elevation 209' 209'
Threshold Crossing Height -- 75 ft. AGL
Visual Glide Path Angle -- 3°
Visual Slope Indicator -- P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1IMMIGRATION & CUSTOMS AVBL DURG SCHEDULED OPNS. OTHER TIMES PRIOR ARRANGEMENTS MUST BE MADE WITH CBP PORT DIRECTOR CALL (670)288-0025/26.
A110-2FOR ARPT SECURITY CALL (670) 237-6529.
A110-4RWY 06/24 OPEN FOR TAXIING ONLY (NOT AVBL FOR LDG AND TKOF). OPEN FOR LDG AND TKOF WHEN RWY 7/25 CLSD.
A110-5PPR FM EXECUTIVE DIRECTOR COMMONWEALTH PORTS AUTHORITY SAIPAN CALL (670) 237-6500 MON-FRI 0730-1630 OTHER TIMES CALL (670) 237-6535.
FRANCISCO C ADA/SAIPAN INTL (ICAO: PGSN, IATA: GSN) is a public airport located in SAIPAN ISLAND, MP.
