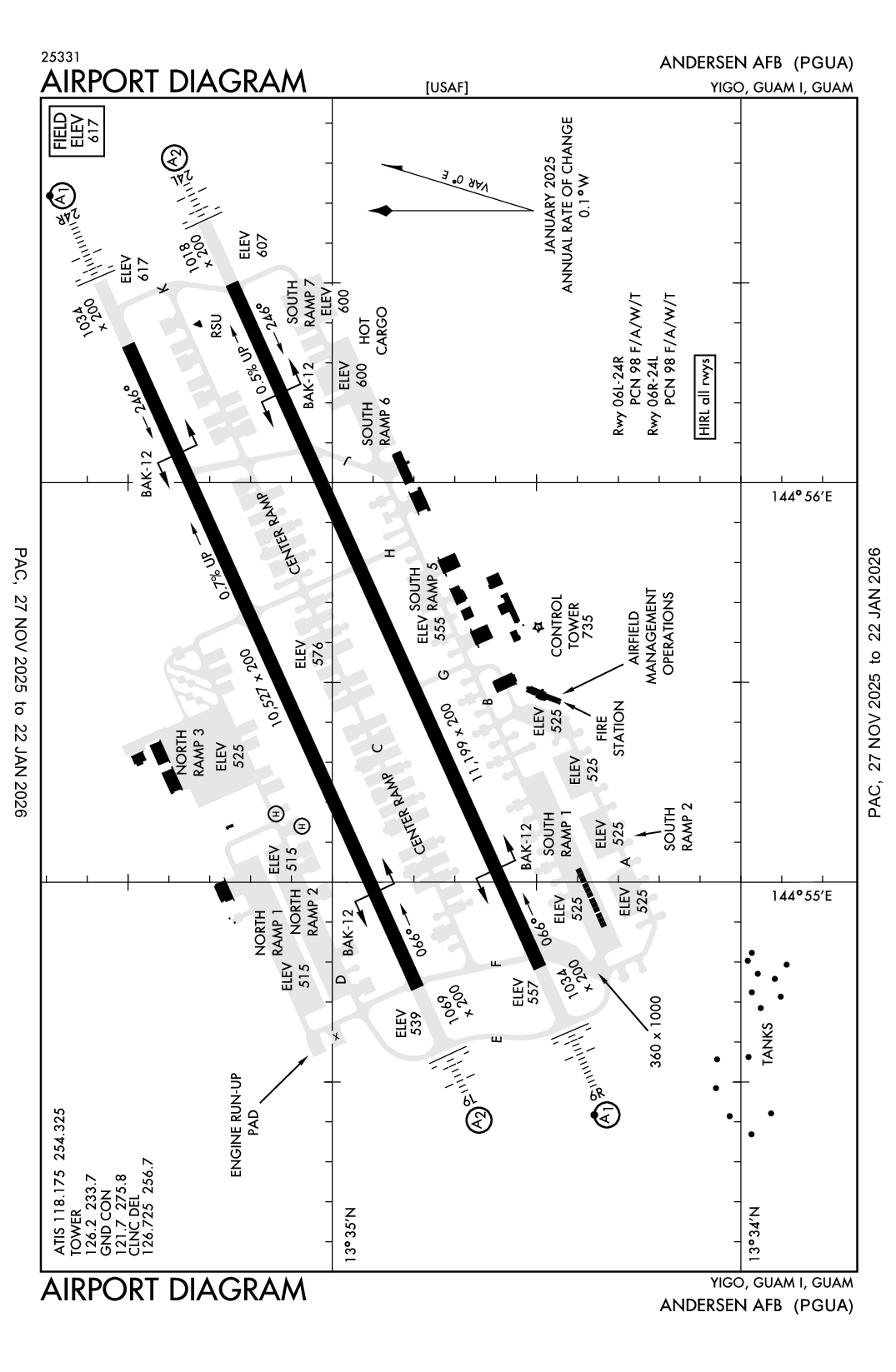

ANDERSEN AFB - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PGUA
ANDERSEN AFB
PrivatePVT

0 miles N of YIGO, GU
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
13° 35' 02"N 144° 55' 48"E
617' MSL
1617' MSL
02E
None Listed
HONOLULU (HNL)
GNC 7
GUAM (ZUA)
11/28/24-12/26/24
PGUA VFR
10:55 PM +10
Overcast 11,000'
Few 300'
10sm
79°F
77°F
29.87"Hg
070° 6kts
AO2 RAE15 SLP105 P0000 T02610250 $
PGUA 211255Z AUTO 07006KT 10SM FEW003 OVC110 26/25 A2987 RMK AO2 RAE15 SLP105 P0000 T02610250 $

PGUA FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
118.175

Clearance Delivery

CD/P
126.725

Emergency

EMERG
121.5

Ground

GND/P
121.7

Tower

LCL/P
126.2

Terminal Area Forecast

PGUA
Sat, 12/21 10:15 PM +10
Sat, 12/21 10:00 PM +10 - Mon, 12/23 2:00 AM +10
MVFR
10:00 PM +10 - 2:00 AM +10
Broken 1,200'
6sm
29.79"Hg
090° 10kts
Gusts 15kts
IFR
Temporary 10:00 PM +10 - 4:00 AM +10
Showers and Rain
Broken 700'
2.98sm
Calm
TAF AMD PGUA 211215Z 2112/2216 09010G15KT 9999 BKN012 QNH2979INS
   TEMPO 2112/2118 4800 SHRA BKN007 TX30/2202Z TN26/2118Z
PGUA
Military
12/21/241138Z RWY 06R/24L WET THIN WATER. RWY 06L/24R WET THIN WATER.
12/20/242331Z M2161/24 NOTAMC M2159/24
12/20/242330Z M2160/24 NOTAMC M2158/24
12/20/240937Z RWY 06R/24L HOLD SIGN AT TWY K AND TWY C INTERSECTION UNSERVICABLE.
12/20/240934Z !PGUA M2156/24 UAM TWY G TWY DIRECTION SIGN NOT LGTD LOCATED ON TWY B 2412200934-2502282300
12/20/240930Z !PGUA M2155/24 UAM TWY A TWY DIRECTION SIGN SOUTHWEST SIDE NOT LGTD 2412200930-2502282300
12/20/240606Z M2154/24 NOTAMC M2029/24
12/20/240605Z M2153/24 NOTAMC M1576/24
12/20/240116Z AIRFIELD CLOSED TO ALL AIR AND GROUND OPERATIONS FROM 06 JAN 1900L (06 JAN 0900Z) ALL AFLD ACTIVITY WILL CEASE AND ALL PERSONNEL MUST EXIT AIRFIELD NLT POSTED CLOSURE START TIME. NORMAL OPERATIONS RESUME AT: 06 JAN 2300L (06 JAN 1300Z). SAR & EMERGENCY ACFT ONLY MAY BE EXEMPT
12/20/240115Z AIRFIELD CLOSED TO ALL AIR AND GROUND OPERATIONS FROM 06 JAN 0130L (05 JAN 1530Z) ALL AFLD ACTIVITY WILL CEASE AND ALL PERSONNEL MUST EXIT AIRFIELD NLT POSTED CLOSURE START TIME. NORMAL OPERATIONS RESUME AT: 06 JAN 0600L (05 JAN 1600Z). SAR & EMERGENCY ACFT ONLY MAY BE EXEMPT
12/20/240113Z AIRFIELD CLOSED TO ALL AIR AND GROUND OPERATIONS FROM 22 DEC 2020L (22 DEC 1020Z) ALL AFLD ACTIVITY WILL CEASE AND ALL PERSONNEL MUST EXIT AIRFIELD NLT POSTED CLOSURE START TIME. NORMAL OPERATIONS RESUME AT: 22 DEC 2200L (22 DEC 1200Z). SAR & EMERGENCY ACFT ONLY MAY BE EXEMPT
12/20/240111Z AIRFIELD CLOSED TO ALL AIR AND GROUND OPERATIONS FROM 30 DEC 0130L (29 DEC 1530Z) ALL AFLD ACTIVITY WILL CEASE AND ALL PERSONNEL MUST EXIT AIRFIELD NLT POSTED CLOSURE START TIME. NORMAL OPERATIONS RESUME AT: 30 DEC 0600L (29 DEC 2000Z). SAR & EMERGENCY ACFT ONLY MAY BE EXEMPT
12/20/240109Z AIRFIELD CLOSED TO ALL AIR AND GROUND OPERATIONS FROM 30 DEC 1830L (30 DEC 0830Z) ALL AFLD ACTIVITY WILL CEASE AND ALL PERSONNEL MUST EXIT AIRFIELD NLT POSTED CLOSURE START TIME. NORMAL OPERATIONS RESUME AT: 30 DEC 2230L (30 DEC 1230Z). SAR & EMERGENCY ACFT ONLY MAY BE EXEMPT
12/20/240108Z AIRFIELD CLOSED TO ALL AIR AND GROUND OPERATIONS FROM 22 DEC 0100L (21 DEC 1500Z) ALL AFLD ACTIVITY WILL CEASE AND ALL PERSONNEL MUST EXIT AIRFIELD NLT POSTED CLOSURE START TIME. NORMAL OPERATIONS RESUME AT: 22 DEC 0430L (21 DEC 1830Z). SAR & EMERGENCY ACFT ONLY MAY BE EXEMPT
12/20/240013Z M2146/24 NOTAMC M2141/24
12/19/240825Z M2145/24 NOTAMC M2144/24
12/18/241426Z M2140/24 NOTAMC M2131/24
12/11/241039Z RWY 06R/24L RDR 4,000/7,000 NOT ILLUMINATED.
12/5/241257Z FUEL PIT N-12 UNSERVICEABLE
12/3/240220Z SOUTH RAMP SPOTS S52, S54 AND S56 CLOSED.
12/2/240429Z OBSTACLE ERECTED: 90FT CRANE LOCATED AT 13°34'44.5N 144°56'25.1E (APPROX CRS SNAKE PIT). 90FT AGL/702FT MSL.
12/1/241328Z 06L ILS UNSERVICEABLE
12/1/241325Z TWY C BETWEEN TWY J & TWY K CLOSED TO ALL AIRCRAFT. TWY J & TWY K NOT IMPACTED
12/1/241324Z OBSTACLE ERECTED: 151FT CRANE LOCATED AT 13"34 '46.10" N, 144°56' 17 .80" E (APPROX BLDG 18046). 151FT AGL/747FT MSL. CRANE IN USE DAILY FROM 0700L TO 1700L (2200Z TO 0700Z)
11/30/241927Z AIRFIELD CLOSED DAILY 23 DEC - 06 JAN FROM 2200-0800L (1200-2200Z)
11/30/241330Z RWY 24R PRECISION APPROACH PATH INDICATOR UNSERVICEABLE
11/30/241329Z CENTER RAMP SPOTS C-14, C-26, C-51, C-52, C-55, C-57, C-58, C-59, C-60, C-62, C-64, C-66, AND C-68 CLOSED
11/30/241325Z RWY 06R AND RWY 24R APPROACH LIGHTING SYSTEM (ALSF-1) PARTIALLY OBSTRUCTED BY VEGETATION WHICH MAY OBSCURE LIGHTING VISIBILITY
11/30/241323Z 24R APPROACH LIGHTING SYSTEM UNSERVICEABLE
11/30/241312Z PTD FREQUENCY 372.2 OUT OF SERVICE
11/30/241310Z HEAVY CONSTRUCTION TRAFFIC EASTSIDE OF TWY CHARLIE AND TWY KILO
11/30/241309Z RWY 06R/24L AAS SIGN SOUTH EAST OF 06R DEPARTURE END REMOVED
11/30/241306Z ACFT DEPARTING RWY 06R MUST START TAKEOFF ROLL FROM TWY F INTERSECTION (10,892 FEET AVAILABLE) TO PREVENT DAMAGE TO THE ILS LOCALIZER ANTENNA. DEVIATIONS REQUIRE 36 OG/CC APPROVAL
11/30/241305Z ALL AIRCRAFT REQUIRING DRY ICE MUST COORDINATE DIRECTLY WITH VENDOR: ISLAND EQUIPMENT COMPANY (2200Z - 0700Z, M-F) , COMM: 671-888-8976; 671-565-4574/2485; 671-797-2724. VENDOR REQUIRES 72 HOURS ADVANCE NOTICE FOR ALL ORDERS, AND ORDERS CANNOT BE PLACED OR PICKED UP ON WEEKENDS OR HOLIDAYS. VENDOR REQUIRES NAME, PAYMENT METHOD/CARD NUMBER, AND CARD EXPIRATION DATE. 734 AMS WILL PICK-UP AND DELIVER DRY ICE TO AIRCRAFT. REQUESTOR WILL SEND RECEIPT AND CONFIRMATION/PICK-UP TIME TO 734AMS.ATOC@US.AF.MIL AND 734AMS.CAPES.CAPESFORECASTING@US.AF.MIL. POC IS 734 AMS ATOC DUTY OFFICER AT COMM 671-366-3125 OR 734 AMS DIRECTOR OF OPERATIONS COMM: 671-366-7343/DSN 315-366-7343
11/30/241302Z RWY 06L/24R AAS SIGN SOUTH EAST OF 06L DEPARTURE END REMOVED
11/30/241300Z INCREASED POTENTIAL FOR WILDLIFE ACTIVITY ON AFLD DUE TO UNSERVICEABLE FENCING. REPORT ANY SIGHTINGS TO ATC
11/6/241205Z !PGUA M1894/24 UAM TWY B LOCATION SIGN SOUTHEAST SIDE NOT LGTD AT THE INTERSECTION OF TWY B AND TWY J 2411061205-2501312359
11/6/241204Z !PGUA M1893/24 UAM TWY K HOLD SIGN SOUTHWEST SIDE NOT STD 2411061204-2501312359
11/1/242125Z TWY C BIRD BATH (CLEAR WATER RINSE) UNSERVICEABLE
10/30/241746Z !PGUA V0745/24 UAM AERODROME INSTRUMENT APPROACH PROCEDURE LIMITED HI-ILS Y OR LOC/DME Y RWY 06L USE LOC IDENT I-GUA IN PLACE OF I-AND, TCH 47. 2410301746-2507312359
10/25/240637Z ANDERSEN AFB HAS REDUCED AIRCRAFT FIREFIGHTING CAPABILITIES. NFPA CAT 1-9 IS OPTIMAL LEVEL OF SERVICE (OLS). NFPA CAT 10 IS REDUCED LEVEL OF SERVICE (RLS). ALL AIRCRAFT IN THE REDUCED AND CRITICAL LEVELS OF SERVICE ARE ADVISED THAT THE SENIOR FIRE OFFICAL WILL MAKE THE DECISION OF OFFENSIVE OR DEFENSIVE ACTIONS BASED ON THEIR INITIAL SIZE UP. PERSONNEL MUST EXIT UNDER THEIR OWN POWER.
10/25/240614Z DUE TO UHF SIGNAL STRENGTH ISSUES, IF UNABLE TO REACH THE CP AT 30 MINUTES OUT, REATTEMPT AT 15-20 MINUTES OUT
10/23/240131Z !PGUA V0726/24 UAM AERODROME INSTRUMENT APPROACH PROCEDURE LIMITED ILS Z OR LOC/DME Z RWY 06L USE LOC IDENT I-GUA IN PLACE OF I-AND, TCH 47. 2410230131-2507312359
10/22/240051Z PGUA CURRENTLY HAS LIMITED IGLOO REFRESH CAPABILITIES. NO REQUESTS WILL BE FULFILLED BETWEEN THE HOURS OF 1530Z-1830Z(0130L-0430L) AND SHOULD WAIT TO BE ACCOMPLISHED AT NEXT DESTINATION UNTIL FURTHER NOTICE. AIRCRAFT LAVATORY/POTABLE WATER SERVICES ARE STILL AVAILABLE UPON REQUEST. IF YOU HAVE ANY QUESTIONS/CONCERNS, PLEASE CONTACT ATOC DUTY OFFICER OR SR CNTRLR AT DSN 315-366-3125/COMM 671-366-3125 OR VIA EMAIL 734AMS.ATOC@US.AF.MIL.
10/21/241318Z THE FOLLOWING OBSTRUCTION LIGHTS ARE NOT LGTD. OBSTACLE LIGHTS ON AIRFIELD BUILDING 2510. OBSTACLE LIGHTS ON AIRFIELD BUILDING 2641 (HSC 25 HANGAR). OBSTACLE LIGHTS ON ALTERNATE CONTROL TOWER. TWO OBSTRUCTION LIGHTS ON SR2 BALL PARK LIGHTS. LIGHTS ON RWY 24L AND 06R LOCALIZERS. RWY 06L-24R ARRESTING SYSTEM SHACK ON THE SOUTHWEST SIDE.
10/16/240526Z PILOT TO METRO UNSERVICABLE FREQ 346.6
10/15/240235Z ?AIRCREWS SHOULD EXPECT LIMITED CAPABILITIES AND SERVICES UPON ARR AND/OR DEP, DUE TO ONGOING REPAIRS TO AMC/AMS FAC. IF YOU HAVE ANY QUESTIONS/CONCERNS, PLEASE CONTACT ATOC DUTY OFFICER OR SR CNTRLR AT DSN 315-366-3125/COMM 671-366-3125 OR VIA EMAIL 734AMS.ATOC@US.AF.MIL/UNTIL FURTHER NOTICE?
10/1/241502Z LOW PROFILE BARRICADES ON TWY C UNLIT
9/27/240109Z PGUA CURRENTLY HAS LIMITED TO NO SPACE AVAILABLE FOR REFRIGERATED CARGO UNTIL FURTHER NOTICE. OTHER STATIONS PLEASE CALL CAPEFORECASTING OR ATOC TO COORDINATE FIRST AVAILABLE SPACE. IF YOU HAVE ANY QUESTIONS OR CONCERNS, PLEASE CALL ATOC AT DSN 315-366-3125/COMM 671-366-3125 OR CAPE FORECASTING AT DSN 315-366-3747/COMM 671-366-3747.
Yes
ALL
PPR DSN 366-4188/5212, NOT RQR FOR AMC MSN.
USAF
3 AD
ANDERSEN AFB, GUAM 69912
MAJOR BILLY G TOWLES
3 AD
ANDERSEN AFB, GUAM 69912
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
PGUA
--
--
N/A
Yes
No
No
Hangar
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
Low Pressure
Cargo Handling

Runway 06L/24R

10528 ft. x 200 ft.
ASPH
CONC
NONE
HIGH
98 /R/A/W/T
--
--
--
--
  Runway 06L Runway 24R
True Heading 66°246°
Traffic Pattern Left Right
Markings
Markings Condition
Latitude 13° 34' 49"N 13° 35' 32"N
Longitude 144° 54' 56"E 144° 56' 34"E
Elevation 539' 617'
Threshold Crossing Height 59 ft. AGL 59 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights SALS ALSF1
Centerline Lights No No
Runway End Identifier Lights No No

Runway 06R/24L

11200 ft. x 200 ft.
ASPH
CONC
NONE
HIGH
98 /R/A/W/T
--
--
--
--
  Runway 06R Runway 24L
True Heading 66°246°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 13° 34' 31"N 13° 35' 17"N
Longitude 144° 54' 59"E 144° 56' 43"E
Elevation 557' 607'
Threshold Crossing Height 44 ft. AGL 43 ft. AGL
Visual Glide Path Angle
Visual Slope Indicator P4L P4L
Approach Lights ALSF1 SALS
Centerline Lights No No
Runway End Identifier Lights No No
A110-1FREQUENT RAIN SHOWERS OF SHORT DURATION, EXPECT WET RWY BRAKEING ACTION.
A110-10RSTD: BA ON BOTH RWYS MAY BE LESS THAN EXP DUE TO RUBBER BUILD-UP; PROBABILITY OF HYDROPLANING EXISTS.
A110-12RSTD: ALL AEROMEDICAL EVAC MSN ARE RQRD TO CTC COMD POST (DSN 366-2961, C671-366-2961) BY ANY MEANS AVAIL 3 HRS PRIOR TO ARR. ALL ACFT RQRD TO MAKE CALL 30 MIN PRIOR TO ARR.
A110-17MISC: AFLD MGT HAS NO COMSEC STORAGE AVBL FOR TRAN AIRCREWS. TRANS AIRCREWS CAN STORE COMSEC UP TO TOP-SECRET AT 36 WG CP.
A110-18MISC: ALL AIRCREWS TO RON MUST CK INTO AFLD MGT OPS AND PROVIDE POC INFO UPON ARR.
A110-19MISC: WX OPR H24, DSN 315-366-5230. AUTOMATED SENSOR PRVDS OBSN; AUGMENTED DUR HAZ WX & SENSOR OUTAGES. HUMAN WX OBSN VIEW OBSTD BY BLDG N-SSE. WX STN PRVDS LTD WX BRIEF SUPPORT. REMOTE WX BRIEF AVBL H24 FR 17 OWS AT DSN 315-449-8333/7950, C808-448-3809; 2 HR NTC RQRD FOR TIMELY BRIEF.
A110-2HAZUS AIR TURB FINAL APCH RWYS 24L/24R. NO VSBY REF AVBL ON NGT TKOF BYD END RWY 6.
A110-21RSTD: ALL ACFT CTC 36 WG COMD POST 90 MIN OUT AND AT 30 MIN OUT PRIOR TO ARR.
A110-22MISC: AIRCRAFT EXCEEDING AFLD WEIGHTS MUST REQUEST WEIGHT BEARING CAPACITY WAIVER WITH 24 HR NOTICE TO AIRFIELD OPS TO PROCESS ANY APPROVALS NEEDED. IF REQUESTS ARE NOT MADE WITHIN 24 HRS EXPECT DELAYS.
A110-26SERVICE-A-GEAR: CONTACT CONTROL TOWER 30 MIN PRIOR FOR DEPARTURE END BAK12 CABLE CONFIGURATION. 60 MIN PN FOR CHG IN CONFIGURATION. BAK12 HOUSING LCTD 317' FROM RY CENTERLINE, 217' FROM RY EDGE, MAX HEIGHT 8'. NO ARRESTING-GEAR MARKER LCTD ON LEFT SIDE OF ALL APPROACH END BARRIERS.
A110-3A-GEAR BAK-12 RWYS 06L & 06R 30 MIN NTC RQR.
A110-30RSTD: PPR REQ DSN: AFLD MGMT 315-366-4188.
A110-31MISC: ATTN: ALL DRY ICE REQ MUST BE MADE THRU 734TH MS/ATOC DSN 315-366-3125/3137/3162 OR C671-366-3125/3137/3162. REQ MUST BE MADE AT LEAST 24 HR IN ADVANCE FOR ACFT LDG TUE-FRI AND 72 HR IN ADVANCE FOR ACFT LDG SAT-MON. DUR HOL, ADD 2 HR TO COORD TIME.
A110-33RSTD: RESTRICTIONS TO FLT OPNS DUR EA BWC. MOD: NO TOUCH AND GO LDG. RSTD LOW APPCH NO LOWER THAN 200' OR AS DETERMINED BY SOF. SEVERE: RSTD LOW APPCH NO LOWER THAN 200' OR AS DETERMINED BY SOF. EMERG LDG AND 36 OG/CC APV DEP ONLY. PHASE I: PHASE I:1 APR - 31 JUL. PHASE II: 1 AUG - 31 MAR.
A110-34RSTD 1 OF 2: THERE WILL BE NO OVFT OF MARIANA CROW TERRITORIES BLW 1,000 FT AGL FROM SEP-MAY. OVFT BLW 1,000 FT AGL IS ALLOWED BTN JUNE AND AUG, THE CROW NON-BREEDING SEASON.
A110-36MISC: RWY 06L AND 06R UNDERRUNS 1000' AVBL FOR TWY/TKOF. RWY 24R UNDERRUN AVBL 500' FOR TAXI/TKOF.
A110-37CAUTION: USE EXTREME CAUTION FOR EXTV UAS OPS IN VCNTY OF ANDERSEN AFB.
A110-38NS ABTMT: QUIET HR 1200-2000Z (2200-0600L) DLY. NO AFTERBURNER, OR OVR FLT OF BASE AND LCL POPULATED AREAS. OTHER RESTRICTIONS BY NOTAM.
A110-39CAUTION: 47' TACAN ANTENNAE LCTD 1,300 FT NE OF RY 24L & 1,300 FT SE OF RY 24R THLDS.
A110-4AREA BTN 1000' ROLL BAR AND THU LGT RWY 06R AND 06L UNLGTD. LAST 642' PRIOR TO THU LGT 24R UNLGTD.
A110-42SERVICE-FLUID: C-5 NITROGEN SVC CAPABILITY UNAVBL.
A110-44SERVICE-LGT: ARPT BCN 763 FT MSL LCTD 1.4 NM SSW OF AFLD.
A110-45MISC: PAVEMENT PRIOR TO RY 06R AND RY 06L THLDS AVBL FOR TKOF RUN WHEN NECESSARY FOR MSN ACCOMPLISHMENT.
A110-47MISC: ANDERSEN AFB DOES NOT HAVE CAPABILITY TO STORE REFRIGERATED CARGO.
A110-48RSTD: ACFT MUST ADHERE TO PPR ARR +/- 30 MIN. ACFT WITH WINGSPANS GREATER THAN 261' NOT AUTHORIZED.
A110-49RSTD: ALL OPR MUST OBTAIN APVL FR GND AND AMOPS PRIOR TO ENG RUNUP.
A110-5MAINT AVBL 0100-0400 WEEKDAY ONLY; CLOSED WEEKEND & HOL.
A110-52MISC: "NO VHF CAPABILITIES WITH AFLD MGMT."
A110-55ANY CREW RQRG ASSISTANCE FR AGENCIES OUTSIDE OF AFLD SUPPORT, CTC WING RECEPTIONS DSN 315-366-3464, C671-366-3464.
A110-57SERVICE-LGT: RAMP LGT UNAVBL FOR NGT TIME OPS, AND UNSAFE ACFT MVMT COND EXIST ON NORTH RAMP 3; ACFT TAXI AT THEIR OWN RISK. ALL AFLD ILS STOP LGT UNSVC. VEGETATION OBST RWY 06R AND RWY 24R APCH LGT SYS.
A110-59ILS/RADAR-ILS: ILS CRITICAL AREAS NOT PROTECTED.
A110-6BASE OPS V366-4188; FAX V366-6217.
A110-60ALL INBD ACFT TO INCL TACC/GDSS MSNS MUST COORD PPR REQ WITH AFLD MGMT AND HAVE VALID PPR NUMBER APV PRIOR TO ARR. PPR REQ MUST BE MADE MORE THAN 24 HR IN ADVANCE AND NO EARLIER THAN 14 DAYS PRIOR TO ARR/DEP. PPR REQ GIVEN WITHIN 24 HR WILL NOT BE APV.
A110-61MISC: RWY 06L/24R CLSD SECOND WED EACH MONTH 2000-2300Z(0600-0900L THU). RWY 06R/24L CLSD FOURTH WED EACH MONTH 2000-23000Z (0600-0900L THU).
A110-7TWY B AND C BTN TWY J AND K CLSD DUE TO CONSTRUCTION.
A110-8NO ARRESTING GEAR MARKERS LOCATED ON THE LEFT SIDE OF ALL APPROACH END BARRIERS.
ANDERSEN AFB (ICAO: PGUA, IATA: UAM) is a private airport located in YIGO, GU.
