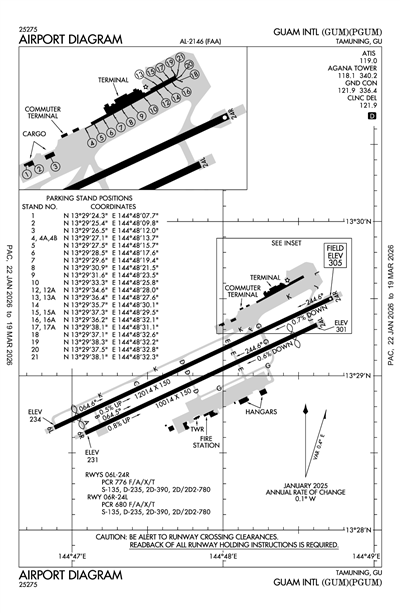

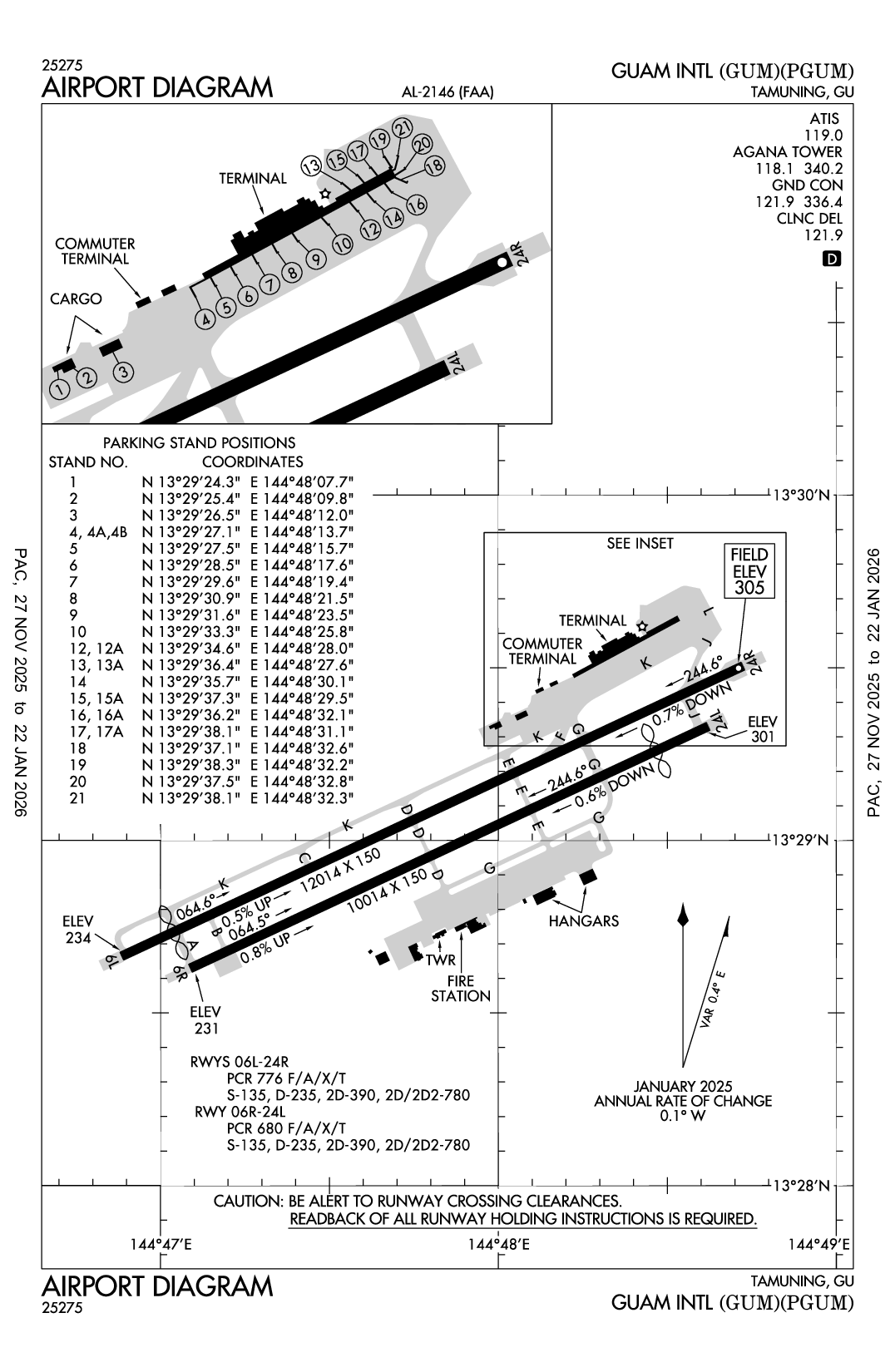

GUAM INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PGUM
GUAM INTL
PublicPUB

3 miles NE of GUAM, GU
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
13° 29' 02"N 144° 47' 50"E
305' MSL
1307' MSL
02E
JET A-1, 100LL
HONOLULU (HNL)
GNC 7
GUAM (ZUA)
11/28/24-12/26/24
PGUM VFR
9:54 PM +10
Few 2,300'
10sm
79°F
73°F
29.90"Hg
080° 5kts
AO2 SLP115 60000 70005 T02610228 10294 20261 51009
PGUM 231154Z 08005KT 10SM FEW023 26/23 A2990 RMK AO2 SLP115 60000 70005 T02610228 10294 20261 51009
Add Your Business

PGUM FBOs

Promote Listing
Tech Center Guam
Phone: (671) 477-0179
No Rating Available
0 Reviews (Read | Sign In To Write)
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- --

ATIS

ATIS
 119.0

Clearance Delivery

CD/P
 121.9

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 118.1

Other

RAMP CTL
 121.6

Terminal Area Forecast

PGUM
Mon, 12/23 9:25 PM +10
Mon, 12/23 10:00 PM +10 - Wed, 12/25 4:00 AM +10
VFR
10:00 PM +10 - 4:00 AM +10
Few 2,500'
6sm
090° 6kts
PGUM 231125Z 2312/2418 09006KT P6SM FEW025
PGUM
FDC
9/21/241615Z !FDC 4/8862 GUM SPECIAL GUAM INTL, GUAM, GU. RNAV (RNP) P RWY 24R,
AMDT 1, RNP 0.11...DA 671FT/HAT 366FT ALL CATS
MISSED APPROACH...473 FT TREE 132941.69N/1444923.42W (GU-021973)
2409211615-2506082359
Yes
ALL
A.B. WON PAT GUAM INT'L ARPT AUTHOR
P.O. BOX 8770
TAMUNING, GU 96931-1278
Phone: 671-646-0300
JOHN QUINATA
P.O. BOX 8770
TAMUNING, GU 96931
Phone: 671-646-0300
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
GUM
--
--
N/A
Yes - Lighted
No
Yes
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
Minor
Minor
High Pressure
High & Low Pressure
Air Freight
Cargo Handling
Charter Service
Pilot Instruction

Runway 06L/24R

12014 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
69 /F/B/X/U
135,000lbs
235,000lbs
390,000lbs
780,000lbs
  Runway 06L Runway 24R
True Heading 65°245°
Traffic Pattern Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 13° 28' 40"N 13° 29' 30"N
Longitude 144° 46' 53"E 144° 48' 43"E
Elevation 234' 305'
Threshold Crossing Height 73 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No No

Runway 06R/24L

10014 ft. x 150 ft.
ASPH CONC
Good
GRVD
HIGH
69 /F/B/X/U
135,000lbs
235,000lbs
390,000lbs
780,000lbs
  Runway 06R Runway 24L
True Heading 65°245°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 13° 28' 38"N 13° 29' 20"N
Longitude 144° 47' 05"E 144° 48' 37"E
Elevation 231' 301'
Threshold Crossing Height 76 ft. AGL 75 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4R P4L
Approach Lights MALSR
Centerline Lights No
Runway End Identifier Lights No
A110-1<1000' OVRN S END & 450' OVRN N END RWY 6L-24R.
A110-10DEP VFR ACFT MAINT RY HDG TIL PAST DEP END OF RY AND REACHING 1000 FT AGL; RGT PAT 24L/R DO NOT EXCEED 1500 FT AGL IN TFC PAT.
A110-11CLASS III ACFT ARE PROHIBITED FROM MAKING ANY TURNS ONTO OR OFF TWY GOLF (SOUTH) WHILE UTILIZING TWY ECHO.
A110-12THE FIRST 500 FT OF THE LEFT SHOULDER OF RWY 24L IS NOT VISIBLE FROM THE TWR. PILOTS ARE ADVISED TO CAUTION FOR ANY PRESENCE OF WILDLIFE IN THAT AREA.
A110-13FOR TAXG B747-8 ACFT ON TWY K FRONTING THE ACFT PRKG APN FROM GATES 5 - 16 AT THE MAIN TRML, MAX TAXG SPEED SHALL BE NO MORE THAN 15 MPH.
A110-14FOR THE B747-8, DRG RWY 24L & 24R OPS AND DUE TO JET BLAST EFCTS AT GATES 14, 16 & 18, THE B747-8 WILL BE TOWED FROM GATE 4 ON TWY K TO TWY J WITH THE ACFT PSND ON TWY J FACING TWD RWY 24R.
A110-15DRG TAXG OF THE B747-8 BTN GATES 5 - 16, ALL VEHICLES SHALL YIELD AND RMN CLEAR OF THE VEHICLE TFC PAT AND ARE RSTRD TO A MAX HGT OF 14 FT.
A110-16FOR ALL ARRS, THE B747-8 AIRLINE WILL TOW THE ACFT INTO GATES 4 OR 18 FROM TWY K AND AIRLINE TO PRVD WING-WALKERS AS THE ACFT IS BEING TOWED INTO GATES 4 OR 18.
A110-17ADG-VI AIRPLANES MAY DEPART ON RWY 6L AND RWY 24R WITH ACFT ON PARL TWY K AS LONG AS NO ADG-VI ACFT OCCUPIES THE PARL TWY BYD 1500 FT OF THE POINT OF TKOF ROLL.
A110-18RWY 06 AND RWY 24 WIND CONE NSTD.
A110-2FOR PARKING INFORMATION ALL ACFT CTC RAMP CTL. ALL ACFT DEP TERMINAL PARKING CTC RAMP CTL FOR ENGINE START AND PUSHBACK.
A110-3TSNT ACFT PRVD 24 HRS ADVN INFO TO EXEC MGR GUAM INTL ARPT AUTHORITY; 1-671-642-4455 MON-FRI 0800-1700 OR FAX 1-671-646-8567.
A110-6EFFECTIVE RY GRADIENT RY 06L 0.46% UP NE; RY 24R 0.70% DOWN SW; RY 06R 0.80 % UP NE; RY 24L 0.52% DOWN SW.
A110-8LGTD TWR 780 FT 1.3 NM ENE OF RY 24L THLD .
A110-9RISING TERRAIN 75 FT FM RY 24L THLD 140 FT EAST OF CNTRLN EXTENDED +8 FT.
GUAM INTL (ICAO: PGUM, IATA: GUM) is a public airport located in GUAM, GU.
