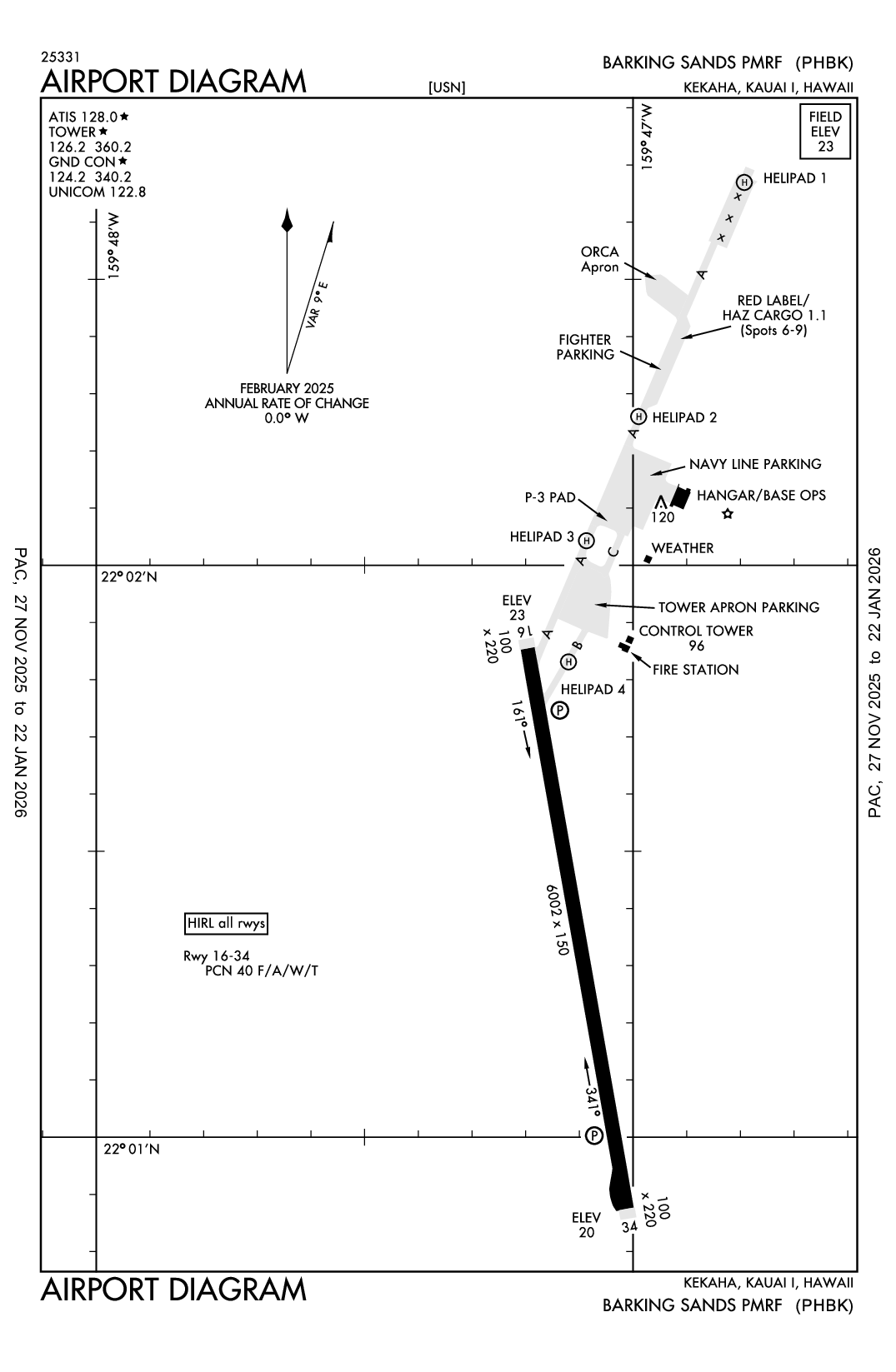

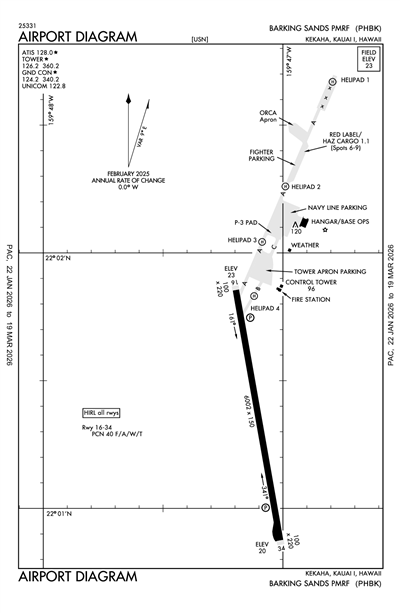

BARKING SANDS PMRF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PHBK
BARKING SANDS PMRF
PrivatePVT

5 miles NW of KEKAHA,KAUAI, HI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
22° 01' 22"N 159° 47' 06"W
23' MSL
1023' MSL
10E
None Listed
HONOLULU (HNL)
HAWAIIAN ISLANDS
HONOLULU CONTROL FACILITY (ZHN)
12/26/24-1/23/25
PHBK VFR
6:04 AM HST
Broken 3,600'
Few 2,600'
10sm
32°F
32°F
29.90"Hg
340° 24kts
Gusts 30kts
AO2 PK WND 35030/1603 $
PHBK 221604Z AUTO 34024G30KT 10SM FEW026 BKN036 A2990 RMK AO2 PK WND 35030/1603 $
Add Your Business

PHBK FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 --

ATIS

ATIS
Hours: 0700-1800 MON-FRI EXC HOL, OT BY OPE NEC ONLY.
 128.0

Emergency

EMERG
 121.5

Ground

GND/P
 124.2

Tower

LCL/P
 126.2

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PHLI (25nm)
Wed, 1/22 1:31 AM HST
Wed, 1/22 2:00 AM HST - Thu, 1/23 2:00 AM HST
VFR
2:00 AM HST - 3:00 AM HST
Broken 25,000'
Scattered 5,000'
Few 4,000'
6sm
270° 6kts
VFR
3:00 AM HST - 7:00 AM HST
Showers in vicinity
Overcast 5,000'
Scattered 2,500'
6sm
290° 6kts
MVFR
Temporary 4:00 AM HST - 7:00 AM HST
Light Showers and Rain and Mist
Broken 2,500'
4sm
Calm
MVFR
7:00 AM HST - 9:00 AM HST
Showers in vicinity
Overcast 5,000'
Broken 2,500'
6sm
360° 12kts
Gusts 20kts
VFR
9:00 AM HST - 5:00 PM HST
Broken 5,000'
Scattered 2,500'
6sm
360° 17kts
Gusts 24kts
VFR
5:00 PM HST - 2:00 AM HST
Few 5,000'
6sm
360° 12kts
PHLI 221131Z 2212/2312 27006KT P6SM FEW040 SCT050 BKN250
   FM221300 29006KT P6SM VCSH SCT025 OVC050
   TEMPO 2214/2217 4SM -SHRA BR BKN025
   FM221700 36012G20KT P6SM VCSH BKN025 OVC050
   FM221900 36017G24KT P6SM SCT025 BKN050
   FM230300 36012KT P6SM FEW050
PHBK
Military
1/24/251700Z !PHBK M0007/25 BKH TWY A CLSD FROM HELIPAD 2 TO HELIPAD 3. 2501241700-2501250400
1/23/251900Z !PHBK M0009/25 BKH HIBAL (10 FOOT DIAMETER WEATHER BALLOON) WILL ASCEND FROM 22-03-41.04N/159-46-45.78W. LAUNCH SITE LOCATED 9,254 FEET NORTH OF RWY 16 THRESHOLD AND 4,310 FEET EAST OF CENTERLINE. EXPECT 5 BALLOON LAUNCHES DURING THIS TIME PERIOD. DLY 1900-0200 2501231900-2501300200
1/23/251900Z ZEPHIR AND WINDCUBE WIND-FINDING LIDARS LOCATED AT 22-03-41.04N/159-46-45.78W (9,254 FEET NORTH OF RWY 16 THRESHOLD AND 4,310 FEET EAST OF CENTERLINE). ONE LASER USES FIVE PULSED BEAMS WITH ONE BEAM DIRECTLY VERTICAL AND FOUR BEAMS AT 90 DEGREES OF SEPARATION AND ANGLED 30 DEGREES OFF ZENITH. FLYING WITHIN 1000 FEET OF THE GROUND LASERS ARE PROHIBITED TO ALL AIRCRAFT.
1/14/251952Z RWY 16/34 E-28 ARRESTING GEAR SYSTEMS NOT AVAILABLE. BOTH APPROACH END AND DEPARTURE END SYSTEMS NOT AVAILABLE.
Yes
ALL
OPR 1700-0400Z MON-FRI EXC HOL. OT BY OPR NEC ONLY.
US NAVY
OCEANOGRAPHIC OFC - CODE 3142
WASHINGTON, DC 20373
N/A
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
N/A
--
AVBL ONLY DURING HRS OF OPERATION.
N/A
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 16/34

6002 ft. x 150 ft.

ASPH
NONE
HIGH
51 /F/A/W/T
--
--
--
--
  Runway 16 Runway 34
True Heading 170°350°
Traffic Pattern
Markings
Markings Condition
Latitude 22° 01' 51"N 22° 00' 53"N
Longitude 159° 47' 12"W 159° 47' 01"W
Elevation 23' 20'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1CLNC OBTAINED THRU CO PMRF HAW AREA. PHONE (HON) 471-6311,6254.
A110-10RWY-LGTS: RWY 16 AND RWY 34 - OLS.
A110-11RSTD - 72 HR PPR FOR ALL ACFT, USER REIMBURSE CONTRACTOR OVERTIME, DSN 315-421-6310/6311, C808-335-4310/4311. FOR R3101, CTC RNG OUTRIDER 322.85 OR TWR 126.2 PRIOR TO ENTRY.
A110-12CSTMS/AG/IMG FOR OVERSEAS ARR NOT AVAILABLE ON ROUTINE BASIS. SPECIAL REQUESTS RQR 5 DAYS PN; CTC CBP HONOLULU OFFICE C808-237-4601 TO ARRANGE INSPECTION; AIRCRAFT OPERATOR IS REQUIRED TO PAY EXPENSES. AG INSPECTION AVBL FOR MAINLAND ARR/DEP FLT; 24 HR PN RQR FOR INSPECTION., LIHUE AG C808-632-2511; WKEND/HOL SUBJ TO REIMBURSEMENT OVERTIME FEES.
A110-13MISC - EXTREMELY LTD TOW CAPABILITY; AIRCREW MUST PROVIDE QUALIFIED DRIVER FOR TOW VEH. NO AIR STAIRS. NO LAVATORY SERVICE. NO FLT PLANNING SVC. AERODROME LTD TO MSN ESSENTIAL PAX ONLY. NO SPACE-A SUPPORT.
A110-14SERVICE: A-GEAR - NOT AVBL FOR EMERG DIVERT WO PRIOR COORDN WITH AFLD MGR.
A110-15SERVICE: FUEL - LTD TO 50K FOR TSNT ACFT AND ONLY DD FORM 1896 (JET FUEL INDENTAPLATE) ACCEPTED. R/W HOT REFUEL RQR CREW MEMBER TO CONNECT FUEL HOSE TO ACFT. R/W (W/SKIDS) AND F/W COLD FUEL ONLY.
A110-16CAUTION (1 OF 2) - NUMEROUS UNLIT OBST WITHIN RWY SAFETY ZONES AND APCH/DEPARTURE CLEAR ZONES. SAND BERMS, TREES AND VEGETATION LOCATED 152' WEST OF CNTRLN EXTENDING FULL LEN OF RWY AND INTO RWY 16 AND 34 APCH ZONES. VEGETATION LOCATED 57' WEST OF PAVEMENT EDGE STRIPES FOR TURN AROUND AREA AT SOUTH END OF RWY. TREES AND VEGETATION LOCATED 250' EAST OF CNTRLN EXTENDING INTO RWY 34 APCH ZONE. KINIKINI DITCH (15' DEEP X 50' WIDE) LOCATED 150' SOUTH OF RUNWAY 34 THLD EXTENDING FR OCEAN AROUND THE RWY TO THE EAST WITH ROUTINE BIRD ACT. VEGETATION LOCATED 135' NORTH OF RWY 16 THLD EXTENDING INTO RWY 16 APCH ZONE. AIRCRAFT ON TWY ALPHA AT RWY HOLD POSN ARE WITHIN THE RWY 16/34 APCH/DEPARTURE CLEAR ZONES. NO TWY GUIDANCE SIGNS; REQ PROGRESSIVE TAXI IF REQRD. USE CAUTION FOR REDUCED BRAKING ACTION ON ALL TWYS AND APRONS DUR DRY CONDS, USE EXTRA CAUTION DUR WET CONDITIONS. TWY BRAVO PCN 31 F/A/W/T; 65' WIDE, LIMITED TO C-130 (WINGSPAN 134') OR SMALLER AIRCRAFT, AND UNLIT, 2' TALL OBST (PENTAGRAPH REFUELING PIPE) LOCATED 34' EAST OF CNTRLN ADJ TO HELIPAD 4. AIRCRAFT CARRYING HAZARDOUS CARGO RSTD TO PCN 41 F/A/W/T DUE TO TWY ALPHA LOAD BRG CHANGE NORTH OF TOWER APRON. FTR PARKING PCN 36 F/A/W/T. NAVY LINE PARKING PCN 31 F/A/W/T.
A110-17CAUTION (2 OF 2) - TWR APN PCN 51 F/A/W/T; CONC PORTION PCN 49 R/C/W/T. FRESH WATER RINSE FACILITY LCTD AT N END OF CONC PORTION. AIRCRAFT WASH RACK PCN 31 F/A/W/T LCTD ADJ TO FABRIC HGR. HELIPAD 1 (100'X100') LTD TO LOCALLY ASSIGNED AIRCRAFT. HELIPADS 2 AND 3 (70'X70') LCTD ON TWY ALPHA ADJ TO NAVY LINE PARKING APRON. HELIPAD 4 (59'X59') LCTD ON TWY BRAVO AND USED FOR HOT REFUEL.
A110-18SERVICE LGT: PAPI RY 16/34 INSTALLED WITH 3 DEGREE GLIDE ANGLE AND 40 FT TCH FOR ACFT W/WHEEL TO COCKPIT HEIGHT OF 10 FT OR LESS.
A110-19CAUTION: EXTV R/W EXTERNAL LOAD TFC.
A110-2AIRFIELD RESTRICTED TO GROSS WEIGHT CAT 2 (ALL UP WEIGHT 60000) UNTIL FURTHER NOTICE PER ARPT MGR.
A110-21FOR CD CTC HONOLULU CONTROL FACILITY AT 808-840-6262.
A110-22SERVICE: JASU - 2(AM32-108).
A110-3NS ABTMT - N SHORELINE KAUAI AND THE ISLAND OF NIHAU EXTREMELY NOISE SENSITIVE, ACFT AVOID BY AT LEAST 5 NM.
A110-5A+ AVBL 1700-0430Z MON-FRI, CLSD SAT, SUN AND HOL.
A110-8CAUTION - EXTV R/W EXTERNAL LOAD TFC. BIRD HAZ.
A110-9MISC - CRASH CREW CAN NML PROVIDE CAT 2 MIN RESPONSE, LTD CAT 3 MIN RESPONSE AVBL.
BARKING SANDS PMRF (ICAO: PHBK, IATA: BKH) is a private airport located in KEKAHA,KAUAI, HI.
