KAPALUA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PHJH
KAPALUA
PrivatePVT

5 miles NW of LAHAINA, HI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
20° 57' 47"N 156° 40' 23"W
256' MSL
1256' MSL
11E
None Listed
HONOLULU (HNL)
HAWAIIAN ISLANDS
HONOLULU CONTROL FACILITY (ZHN)
5/16/24-6/13/24
PHOG (14nm) VFR
5:54 PM HST
Broken 6,000'
Scattered 3,000'
10sm
77°F
66°F
30.06"Hg
060° 17kts
Gusts 27kts
AO2 PK WND 07027/0322 SLP185 T02500189
PHOG 010354Z 06017G27KT 10SM SCT030 BKN060 25/19 A3006 RMK AO2 PK WND 07027/0322 SLP185 T02500189
Add Your Business

PHJH FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.7

AWOS-3PT

AWOS-3PT
808-665-6101
 118.525

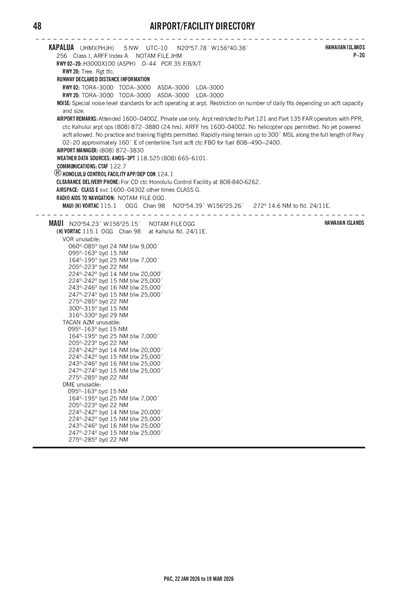

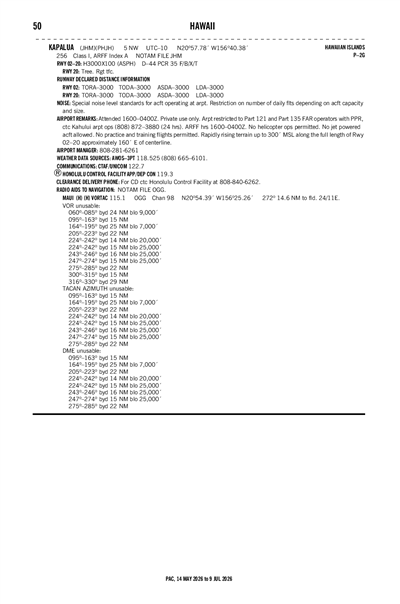

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PHJH
Fri, 5/31 1:41 PM HST
Fri, 5/31 2:00 PM HST - Sat, 6/1 2:00 PM HST
VFR
2:00 PM HST - 8:00 PM HST
Scattered 4,000'
Few 2,500'
6sm
050° 15kts
VFR
8:00 PM HST - 10:00 AM HST
Showers in vicinity
Broken 4,000'
Scattered 2,500'
6sm
050° 11kts
VFR
10:00 AM HST - 2:00 PM HST
Scattered 4,000'
Few 3,000'
6sm
040° 15kts
PHJH 312341Z 0100/0124 05015KT P6SM FEW025 SCT040
   FM010600 05011KT P6SM VCSH SCT025 BKN040
   FM012000 04015KT P6SM FEW030 SCT040
PHJH
FDC
8/2/231846Z !FDC 3/7074 JHM SPECIAL KAPALUA, LAHAINA, HI.
SPECIAL TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES, AMDT 4 ...
TAKEOFF MINIMUMS: RWY 2, 400-1 OR STANDARD WITH MINIMUM CLIMB OF 332 FT PER NM TO 600. ALL OTHER DATA REMAINS THE SAME. 2308021846-2503311846EST
No
0600-1800
STATE OF HAWAII AIRPORTS DIVISION
HONOLULU INTL AIRPORT
HONOLULU, HI 96819
Phone: 808-838-8701
MARVIN MONIZ
KAPALUA AIRPORT
LAHAINA, HI 96761
Phone: 808-872-3830
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
JHM
--
--
N/A
Yes
Yes
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 02/20

3000 ft. x 100 ft.
ASPH
Good
NONE

2 /F/B/W/T
--
44,000lbs
--
--
  Runway 02 Runway 20
True Heading 28°208°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 20° 57' 33"N 20° 57' 60"N
Longitude 156° 40' 30"W 156° 40' 15"W
Elevation 241' 256'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1ARPT RESTRICTED TO PART 121 & 135 FAR OPERATORS WITH PPR CTC KAHULUI ARPT OPNS 808-872-3880 (24 HRS).
A110-2NO HELICOPTER OPNS PERMITTED.
A110-3NO JET POWERED ACFT ALLOWED.
A110-4NO PRACTICE & TRAINING FLTS PERMITTED.
A110-5SPECIAL NOISE LEVEL STANDARDS FOR ACFT OPER AT ARPT.
A110-6RESTRICTION ON NUMBER OF DAILY FLTS DEPENDING ON ACFT CAPACITY & SIZE.
A110-7RAPIDLY RISING TERRAIN UP TO 300 FT MSL ALONG THE FULL LENGTH OF RWY 02/20 APPROX 160 FT EAST OF CENTERLINE.
A110-9FOR CD CTC HONOLULU CONTROL FACILITY AT 808-840-6262.
KAPALUA (ICAO: PHJH, IATA: JHM) is a private airport located in LAHAINA, HI.
