PHMU
WAIMEA-KOHALA
PublicPUB

1 miles SW of KAMUELA, HI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
20° 00' 05"N 155° 40' 05"W
2671' MSL
3671' MSL
11E
None Listed
HONOLULU (HNL)
HAWAIIAN ISLANDS
HONOLULU CONTROL FACILITY (ZHN)
11/28/24-12/26/24
PHSF (16nm) VFR
1:55 AM HST
Clear
10sm
48°F
38°F
30.45"Hg
080° 10kts
AO2 SLP208 T00890035 10138 20084 57007 $
PHSF 231155Z AUTO 08010KT 10SM CLR 09/04 A3045 RMK AO2 SLP208 T00890035 10138 20084 57007 $
Add Your Business

PHMU FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
808-887-8127
 120.0

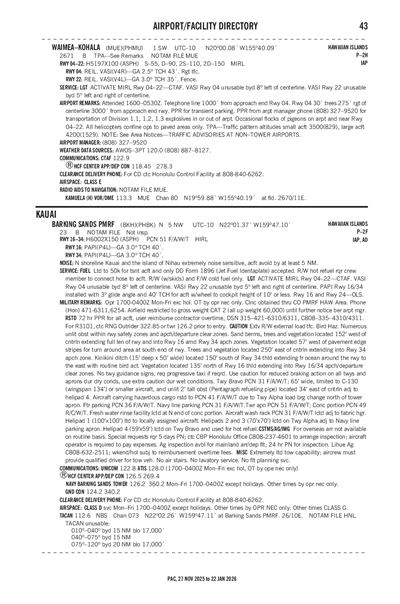

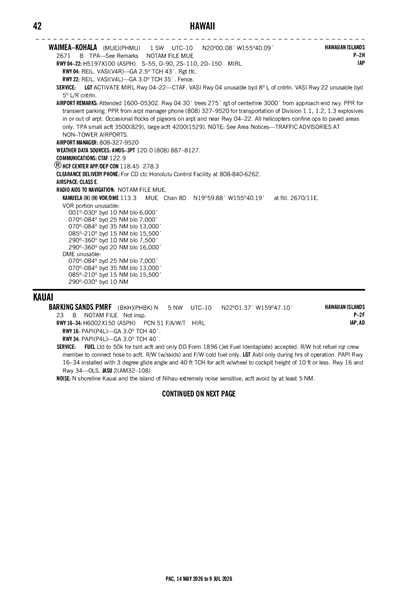

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PHKO (27nm)
Mon, 12/23 2:45 AM HST
Mon, 12/23 3:00 AM HST - Tue, 12/24 2:00 AM HST
VFR
3:00 AM HST - 10:00 AM HST
Few 4,500'
6sm
070° 6kts
VFR
10:00 AM HST - 7:00 PM HST
Scattered 4,500'
Few 2,500'
6sm
210° 9kts
VFR
7:00 PM HST - 2:00 AM HST
Sky Clear
6sm
VRB° 6kts
PHKO 231245Z 2313/2412 07006KT P6SM FEW045
   FM232000 21009KT P6SM FEW025 SCT045
   FM240500 VRB06KT P6SM SKC
PHMU
Domestic
11/25/242359Z !MUE 11/014 MUE RWY 22 RWY END ID LGT U/S 2411252359-2505222111EST
11/1/240400Z !MUE 11/001 MUE OBST TOWER LGT (ASR 1003503) 200135.70N1553821.00W (2.0NM NE MUE) 2974.1FT (138.1FT AGL) U/S 2411010400-2501300400
FDC
10/16/241518Z !FDC 4/9833 MUE IAP WAIMEA-KOHALA, KAMUELA, HI.
RNAV (GPS) RWY 22, ORIG-D...
CIRCLING CAT D MDA 3980/HAA 1309.
CHANGE PBN REQUIREMENTS NOTE TO READ: RNP APCH - GPS.
CHANGE PLANVIEW NOTE TO READ: PROCEDURE NA FOR ARRIVALS AT VELLA ON
V3 NORTHEAST BOUND, V22 SOUTHEAST BOUND, AND T340 EASTBOUND.
THIS IS RNAV (GPS) RWY 22, ORIG-E. 2410161518-PERM
10/16/241517Z !FDC 4/9832 MUE IAP WAIMEA-KOHALA, KAMUELA, HI.
RNAV (GPS) RWY 4, AMDT 1B...
DELETE NOTE: DME/DME RNP-0.3 NA. PBN REQUIREMENTS NOTE: RNP APCH -
GPS.
CHART PLANVIEW NOTE: PROCEDURE NA FOR ARRIVALS AT MYNAH ON V5
SOUTHEAST BOUND, T344 SOUTHEAST BOUND, V11 SOUTHBOUND, AND V3
SOUTHWEST BOUND.
CHART PLANVIEW NOTE: PROCEDURE NA FOR ARRIVALS AT TAMMI ON T342
NORTHBOUND.
CIRCLING CAT C MDA 3620/HAA 949, CAT D MDA 3980/HAA 1309.
THIS IS RNAV (GPS) RWY 4, AMDT 1C. 2410161517-PERM
10/16/241517Z !FDC 4/9831 MUE IAP WAIMEA-KOHALA, KAMUELA, HI.
VOR/DME RWY 4, AMDT 1C...
CIRCLING CAT C MDA 3620/HAA 949, CAT D MDA 3980/HAA 1309.
THIS IS VOR/DME RWY 4, AMDT 1D. 2410161517-PERM
6/25/242110Z !FDC 4/3434 MUE ODP WAIMEA-KOHALA, KAMUELA, HI.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 1...
TAKE-OFF MINIMUMS: RWY 4, 400-2 1/4 OR STANDARD WITH A MINIMUM CLIMB OF 240 FEET PER NM TO 3100.
ALL OTHER DATA REMAINS AS PUBLISHED. 2406252110-2606252110EST
2/14/231429Z !FDC 3/5720 MUE IAP WAIMEA-KOHALA, KAMUELA, HI.
VOR/DME-A, ORIG-B...
PROCEDURE NA.
2302141429-2502141429EST
No
0600-1930
STATE OF HAWAII AIRPORTS DIV
400 RODGERS BLVD, SUITE 700
HONOLULU, HI 96819
Phone: 808-838-8701
CHAUNCEY WONG YUEN
73-200 KUPIPI STREET
KAILUA-KONA, HI 96740-2645
Phone: 808-327-9520
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
MUE
--
ACTVT MIRL RY 04/22 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 04/22

5197 ft. x 100 ft.
ASPH
Good
NONE
MED

55,000lbs
90,000lbs
150,000lbs
--
  Runway 04 Runway 22
True Heading 52°232°
Traffic Pattern Right Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 19° 59' 49"N 20° 00' 21"N
Longitude 155° 40' 27"W 155° 39' 44"W
Elevation 2,662' 2,671'
Threshold Crossing Height 43 ft. AGL 35 ft. AGL
Visual Glide Path Angle 2.5° 3°
Visual Slope Indicator V4R V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1<TPA SMALL ACFT 3500' MSL. LARGE ACFT 4200' MSL.
A110-2OCNL FLOCKS OF PIGEONS ON ARPT AND NEAR RY 04/22.
A110-3PPR FOR TRANSIENT PARKING.
A110-4PPR FM ARPT MGR PHONE (808)327-9520 FOR TRANSPORTATION OF DIVISION 1.1,1.2,1.3 EXPLOSIVES IN OR OUT OF AIRPORT.
A110-5ALL HELICOPTERS CONFINE OPNS TO PAVED AREAS ONLY.
A110-6RY 04 30 FT TREES 275 FT R OF CNTRLN 3000 FT FM APCH END RY.
A110-8FOR CD CTC HONOLULU CONTROL FACILITY AT 808-840-6262.
WAIMEA-KOHALA (ICAO: PHMU, IATA: MUE) is a public airport located in KAMUELA, HI.
