BRADSHAW ARMY AIRFIELD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PHSF
BRADSHAW ARMY AIRFIELD
PrivatePVT

1 miles W of CAMP POHAKULOA, HI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
19° 45' 36"N 155° 33' 14"W
6190' MSL
7190' MSL
10E
None Listed
HONOLULU (HNL)
HAWAIIAN ISLANDS
HONOLULU CONTROL FACILITY (ZHN)
12/26/24-1/23/25
PHSF VFR
5:55 AM HST
Clear
10sm
39°F
30°F
30.22"Hg
Calm
AO2 SLP149 T00371009 $
PHSF 221555Z AUTO 00000KT 10SM CLR 04/M01 A3022 RMK AO2 SLP149 T00371009 $
Add Your Business

PHSF FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 119.275

ATIS

ATIS
 124.7

Ground

GND/P
 121.7

Tower

LCL/P
FM
 41.5
LCL/P
 119.275

Other

PMSV METRO
 122.75
RANGE CTL
FM
 38.3
RANGE CTL
 141.05
VFR ADZY
PMSV
 121.65

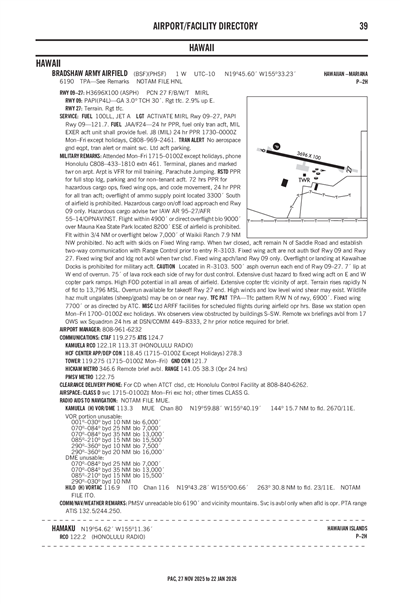

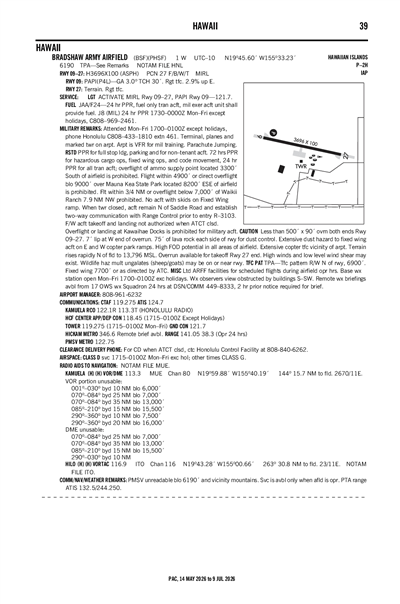

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PHKO (28nm)
Wed, 1/22 1:31 AM HST
Wed, 1/22 2:00 AM HST - Thu, 1/23 2:00 AM HST
VFR
2:00 AM HST - 10:00 AM HST
Broken 6,000'
Few 4,000'
6sm
VRB° 5kts
VFR
10:00 AM HST - 8:00 PM HST
Scattered 5,000'
Few 3,500'
6sm
230° 13kts
VFR
8:00 PM HST - 11:00 PM HST
Showers in vicinity
Broken 5,000'
Scattered 2,500'
6sm
200° 8kts
VFR
11:00 PM HST - 2:00 AM HST
Showers in vicinity
Broken 5,000'
Scattered 2,500'
6sm
150° 6kts
PHKO 221131Z 2212/2312 VRB05KT P6SM FEW040 BKN060
   FM222000 23013KT P6SM FEW035 SCT050
   FM230600 20008KT P6SM VCSH SCT025 BKN050
   FM230900 15006KT P6SM VCSH SCT025 BKN050
PHSF
Military
1/15/251840Z AERODROME MAIN RAMP CONST AREA ADJACENT WEST SIDE OF CHARLIE APRON PAD 1 AND PAD 2 CLOSED UNTIL FURTHER NOTICE DUE TO BARRICADED AND EQUIPMENT WITHIN 10 FEET OF PARKING PADS
1/10/251316Z TWY A R3103 ACTIVE SURFACE TO 30,000 FEET MSL. 10JAN25 1600Z UNTIL 01MAR25 0400Z. POC IS THE AIRSPACE MANAGER PHONE 808-969-2459
12/2/241715Z !PHSF M0105/24 BSF SVC MOBILE FUEL NOT AVBL START 12/02/24 1700Z END 0/31/25 1700Z 2412021715-2501311700
12/1/241630Z AERODROME EFFECTIVE 18 NOV 2024 1600Z UNTIL 01 SEP 2025 1600Z, BRADSHAW ARMY AIRFIELD (BAAF) RUNWAY 09/27, TAXIWAY AND VIP RAMP IS CLOSED TO ROTARY AND FIX WING OPERATIONS DUE TO RUNWAY CONSTRUCTION EXPECT EQUIPMENT AND PERSONNEL ON SITE AT ALL TIMES FLIGHTS OVER RUNWAY/TAXIWAY AND VIP RAMP IS PROHIBITED. . CONTACT BAAF OPS DURING NORMAL DUTY HOURS FOR A PRIOR PERMISSION REQUIRED (PPR) REQUEST FOR APPROVAL OR RESCHEDULING VIA PHONE 808-787-7806 OR EMAIL BAAFHAWAII@ARMY.MIL AT LEAST 24 HOURS PRIOR TO ARRIVAL. CONTACT BAAF TOWER PRIOR TO INITIATING APPROACHES FROM THE SOUTH VIA BLUE ROUTE, WHEN TOWER IS CLOSED USE LEFT TRAFFIC LANDING TO THE WEST VIA EASTERN MOST PADS OF CHARLIE ROW. POINT OF CONTACT IS BAAF MANAGER AT (808) 787-7806 OR BAAF TOWER 808-787-7807
Yes
MON-FRI 0700-1500
EXC HOL
PHONE HONOLULU C808-433-1810 EXTN 461.
USAR HAW
C/O POSTMASTER
SAN FRANCISCO, CA 96557
COMMANDING OFFICER
POHAKULOA TRNG AREA
APO SAN FRANCISCO, CA 96556
Phone: 808-961-6232
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
HNL
--
ACTVT MIRL RY 09/27 AND PAPI RY 09 - 121.7.
N/A
Yes
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 09/27

3696 ft. x 90 ft.

ASPH
NONE
MED
27 /F/B/W/T
--
--
--
--
  Runway 09 Runway 27
True Heading 101°281°
Traffic Pattern Right Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 19° 45' 39"N 19° 45' 33"N
Longitude 155° 33' 33"W 155° 32' 55"W
Elevation 6,081' 6,190'
Threshold Crossing Height 30 ft. AGL --
Visual Glide Path Angle 3° --
Visual Slope Indicator P4L --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-1TRML, PLANES & MRKD TWR ON ARPT.
A110-12LMT CRASH/FIRE FACILITY FOR SKEDD FLTS DURING AFLD OPERG HOURS..
A110-15F/W ACFT TAKEOFF AND LANDING NOT AUTHORIZED WHEN ATCT CLSD.
A110-17FUEL- JAA/F24 - 24 HR PPR, FUEL ONLY TRAN ACFT, MIL EXER ACFT UNIT SHALL PROVIDE FUEL .
A110-18FLT WITHIN 4900 FT OR DRCT OVFLT BLO 9000 FT OVER MAUNA KEA STATE PARK LCTD 8200 FT ESE OF AFLD IS PROH.
A110-2<500 X 90 OVRN BOTH ENDS RWY 9-27.
A110-20HI FOD POTENTIAL IN ALL AREAS OF AFLD.
A110-21FLT WITHIN 3/4 NM OR OVFLT BLO 7000 FT OF WAIKII RANCH 7.9 NM NW PROH.
A110-22OVFLT OR LNDG AT KAWAIHAE DOCKS IS PROH FOR ALL MIL ACFT.
A110-23WHEN ATCT CLSD, ACFT REMAIN N OF SADDLE ROAD AND ESTAB TWO-WAY COM WITH RANGE CON PRIOR TO ENTRY R-3103.
A110-24OVERUN AVBL FOR TKOFF RY 27 END.
A110-25CAUTION: HI WINDS AND LO LEVEL WIND SHEAR MAY EXIST
A110-26MISC: BASE WX STATION OPEN MON-FRI 1700-0100Z EXC HOL. WX OBSERVERS VIEW OBSTRUCTED BY BUILDINGS S-SW. REMOTE WX BRIEFINGS AVBL FR 17 OWS WX SQ 24HRS AT DSN/COMM 449-8333, 2HR PRIOR NTC RQR FOR BRIEF.
A110-27EXTSV HOP & F/W OPR. DUTY HRS ARE FLEX'D DURING EXER. 16/5 DUTY HRS FOR TWR OPNS & WX CHECK NOTAMS FOR CURRENT OPN HRS.
A110-29FUEL - J8 (MIL): 24 HR PPR, 1730-0000Z MON-FRI EXC HOL, C808-969-2461.
A110-3ARPT IS VFR FLD FOR MIL TRAINING.
A110-30FOR CD WHEN ATCT CLSD, CTC HONOLULU CONTROL FACILITY AT 808-840-6262.
A110-31CAUTION: WILDLIFE HAZ MULT UNGALATES (SHEEP/GOATS) MAY BE ON OR NEAR RWY.
A110-4RSTD - PPR FOR FULL STOP LDG, PKG AND FOR NON-TENANT ACFT. 72 HR PPR FOR HAZ CARGO OPNS, F/W OPNS, & CODE MOVEMENT, 24 HR PPR FOR ALL TRAN ACFT; OVFT OF AMMO SUPPLY PT LCTD 3300 FT S OF AFLD IS PROH.
A110-5NO ACFT WITH SKIDS ON FIXED WING RAMP.
A110-6CAUTION: 7 FT LIP AT W END OF OVRN. 75 FT OF LAVA ROCK EACH SIDE OF RWY FOR DUST CTL. EXTV DUST HAZARD TO F/W ACFT ON E & W COPTER PKG RAMPS.
A110-72.9% UP SLOPE W TO E. EXTSV COPTER TFC VCNTY OF AFLD. TERRAIN RISES RAPIDLY N OF AFLD TO 13796' MSL.
A110-8TFC PAT FOR ROTOR WING NORTH OF RWY 09/27. F/W AS DIRECTED BY ATC.
BRADSHAW ARMY AIRFIELD (ICAO: PHSF, IATA: BSF) is a private airport located in CAMP POHAKULOA, HI.
