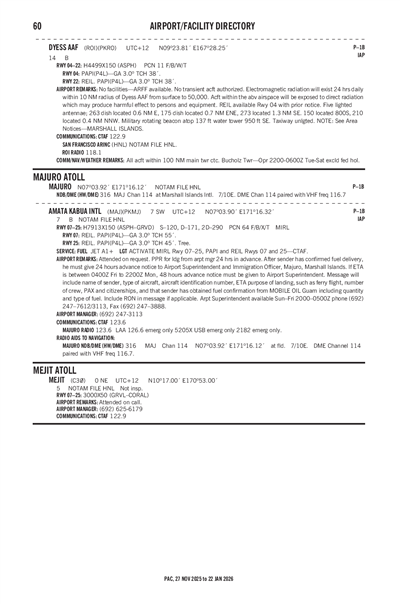

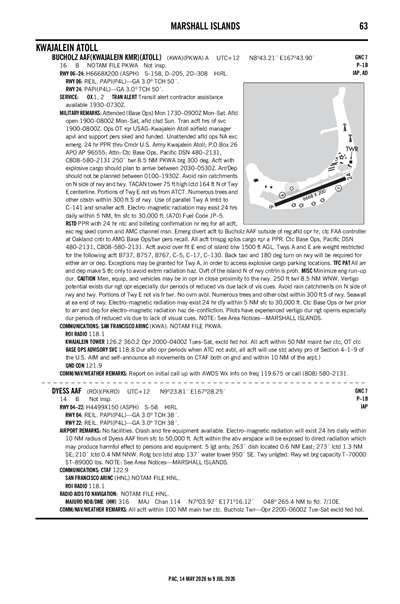

DYESS AAF - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PKRO
DYESS AAF
PrivatePVT

View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
9° 23' 49"N 167° 28' 15"E
14' MSL
1014' MSL
09E
None Listed
HONOLULU (HNL)
GNC 7
OAKLAND OCEANIC ARTCC (ZAK)
11/28/24-12/26/24
PKWA (43nm) VFR
11:40 PM +11
Scattered 4,400'
Scattered 3,100'
Scattered 2,200'
10sm
81°F
75°F
29.85"Hg
050° 9kts
AO2 T02730237
PKWA 231240Z AUTO 05009KT 10SM SCT022 SCT031 SCT044 27/24 A2985 RMK AO2 T02730237
Add Your Business

PKRO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PKWA (43nm)
Mon, 12/23 10:25 PM +11
Mon, 12/23 11:00 PM +11 - Tue, 12/24 11:00 PM +11
VFR
11:00 PM +11 - 11:00 PM +11
Showers in vicinity
Scattered 2,400'
6sm
070° 12kts
PKWA 231125Z 2312/2412 07012KT P6SM VCSH SCT024
PKRO
Military
11/29/241847Z NO SIGNAGE INSTALLED.
11/29/241846Z TWY AND APN MRKG NON-STANDARD.
11/29/241844Z !PKRO M0443/24 ROI RWY 04 PAPI LEFT SIDE U/S 2411291844-2502012359
11/29/241843Z !PKRO M0442/24 ROI RWY 04 RTHL U/S 2411291843-2502012359
11/29/241841Z !PKRO M0441/24 ROI RWY 04/22 REDL U/S LESS THAN 85% OPERATIONAL 2411291841-2502012359
11/29/241840Z !PKRO M0440/24 ROI RWY 22 RTHL U/S 2411291840-2502012359
11/29/241838Z AVOID OVERFLIGHT OF ISLAND WITHIN 10NM SURFACE TO 50,000FT DUE TO ELECTROMAGNETIC RADIATION HAZARD
11/29/241837Z TWY A CLSD BARRICADED. WATER PIPE CROSSING FROM CENTER CATCHMENT TO GRASS AREA ON SOUTH SIDE
4/29/241630Z !PKRO V0204/24 ROI AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT RNAV (GPS) RWY 22 FEEDER SEGMENT FROM NDJ - BUCHOLZ NDB TO ZAPUM NA 2404291630-2412310001
4/29/241628Z !PKRO V0202/24 ROI AERODROME INSTRUMENT APPROACH PROCEDURE AMENDMENT RNAV (GPS) RWY 04 FEEDER SEGMENT FROM NDJ - BUCHOLZ NDB TO ZAPUM NA 2404291628-2412310001
No
Unknown
US ARMY AERONAUTICAL SVCS AGENCY

FT BELVOIR, VA 22060
N/A
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
N/A
--
--
N/A
ROTG BCN LCTD ATOP 137' WATER TWR 950' SE
N/A
No
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 04/22

4500 ft. x 150 ft.

ASPH
NONE
HIGH

58,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 48°228°
Traffic Pattern
Markings
Markings Condition
Latitude 9° 23' 34"N 9° 24' 04"N
Longitude 167° 27' 58"E 167° 28' 32"E
Elevation 13' 14'
Threshold Crossing Height 38 ft. AGL 38 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes
A110-15 LGT ANTS; 263' DISH LCTD 0.6 NM EAST; 273' LCTD 1.3 NM SE; 210' LCTD 0.4 NM NNW.
A110-2TWY UNLGTED.
A110-3ELECTRO-MAGNETIC RADIATION WILL EXIST 24 HRS DLY WITHIN 10 NM RADIUS OF DYESS AAF FROM SFC TO 50,000 FT. ACFT WITHIN THE ABV AIRSPACE WILL BE EXPOSED TO DIRECT RADIATION WHICH MAY PRODUCE HARMFULL EFFECT TO PERSONS AND EQUIPMENT.
A110-4NO FACILITIES.
A110-5CRASH AND FIRE EQUIPMENT AVBL.
A110-6(A36) RWY WT BRG CAPACITY T-70000 ST- 89000 LBS.
A110-7ALL ACFT WITHIN 100 NM MAINT TWR CTC. BUCHOLZ TWR - OPR 2200-0600Z TUE - SAT EXCLD FED HOL.
DYESS AAF (ICAO: PKRO, IATA: ROI) is a private airport located in ROI-NAMUR.
