POHNPEI INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PTPN
POHNPEI INTL
PublicPUB

1 miles N of POHNPEI ISLAND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
6° 59' 06"N 158° 12' 35"E
9' MSL
1009' MSL
07E
JET A-1+, 100LL, 100
HONOLULU (HNL)
N/A
OAKLAND OCEANIC ARTCC (ZAK)
12/26/24-1/23/25
PTPN VFR
3:55 PM +11
Broken 30,000'
Broken 13,000'
Scattered 1,800'
15sm
86°F
79°F
29.75"Hg
050° 7kts
TCU SW LAST
PTPN 220455Z 05007KT 15SM SCT018TCU BKN130 BKN300 30/26 A2975 RMK TCU SW LAST
Add Your Business

PTPN FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.6

No communication frequencies available for this airport.

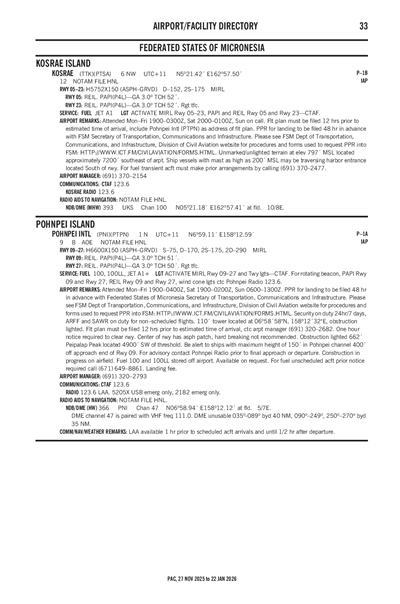

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PTPN
Wed, 1/22 10:34 AM +11
Wed, 1/22 11:00 AM +11 - Thu, 1/23 11:00 AM +11
VFR
11:00 AM +11 - 11:00 AM +11
Showers in vicinity
Broken 13,000'
Scattered 1,800'
6sm
080° 10kts
PTPN 212334Z 2200/2224 08010KT P6SM VCSH SCT018 BKN130
PTPN
Domestic
12/15/241041Z !HNL 12/155 PNI RWY 27 RWY END ID LGT U/S 2412151041-2501312359EST
No
MON-FRI 0800-1700
SAT 0800-1500
SUN 1900-0200
SECURITY ON DUTY 24 HR/7 DAYS, ARFF & SAWR ON DUTY FOR NON-SCHEDULED FLTS.
POHNPEI STATE
P.O. BOX 1150
KOLONIA, POHNPEI, FM 96941
Phone: 691-320-2793
RONALD REYES
P.O. BOX 1150
KOLONIA, POHNPEI, FM 96941
Phone: 691-320-2793
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
HNL
--
ACTVT MIRL RY 09/27 & TWY LGTS - CTAF. FOR PAPI RYS 09 & 27, REIL RYS 09 & 27, WINDCONE LGTS CTC POHNPEI RADIO FREQ 123.6.
FOR ROTG BCN CTC POHNPEI RADIO FREQ 123.6.
N/A
Yes - Lighted
Yes
Yes
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling
Charter Service

Runway 09/27

6600 ft. x 150 ft.
ASPH
Fair
GRVD
MED

75,000lbs
170,000lbs
290,000lbs
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern Left Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 6° 59' 06"N 6° 59' 06"N
Longitude 158° 12' 03"E 158° 13' 08"E
Elevation 9' 8'
Threshold Crossing Height 51 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1<110' LGTD TWR LCTD 06-58-58N LAT 158-12-32E LONG.
A110-2<LGTD 662' PEIPALAP PEAK 4900' SW RWY 9 THR. OBSTN LGT LCTD 06-58-40N LAT 158-11-53E LONG.
A110-4BE ALERT TO SHIPS WITH MAX HT OF 150 FT IN PONAPE CHANNEL 400 FT OFF RWY 09. FOR ADVISORY CTC PONAPE RADIO PRIOR TO FINAL APCH OR DEP.
A110-5PLEASE SEE FSM DOTC&I: DIV. OF CIVIL AVIATION'S WEBSITE FOR PROCEDURES AND FORMS USED TO REQUEST PPR INTO FSM; HTTP://WWW.ICT.FM/CIVILAVIATION/FORMS.HTML.
POHNPEI INTL (ICAO: PTPN, IATA: PNI) is a public airport located in POHNPEI ISLAND.
