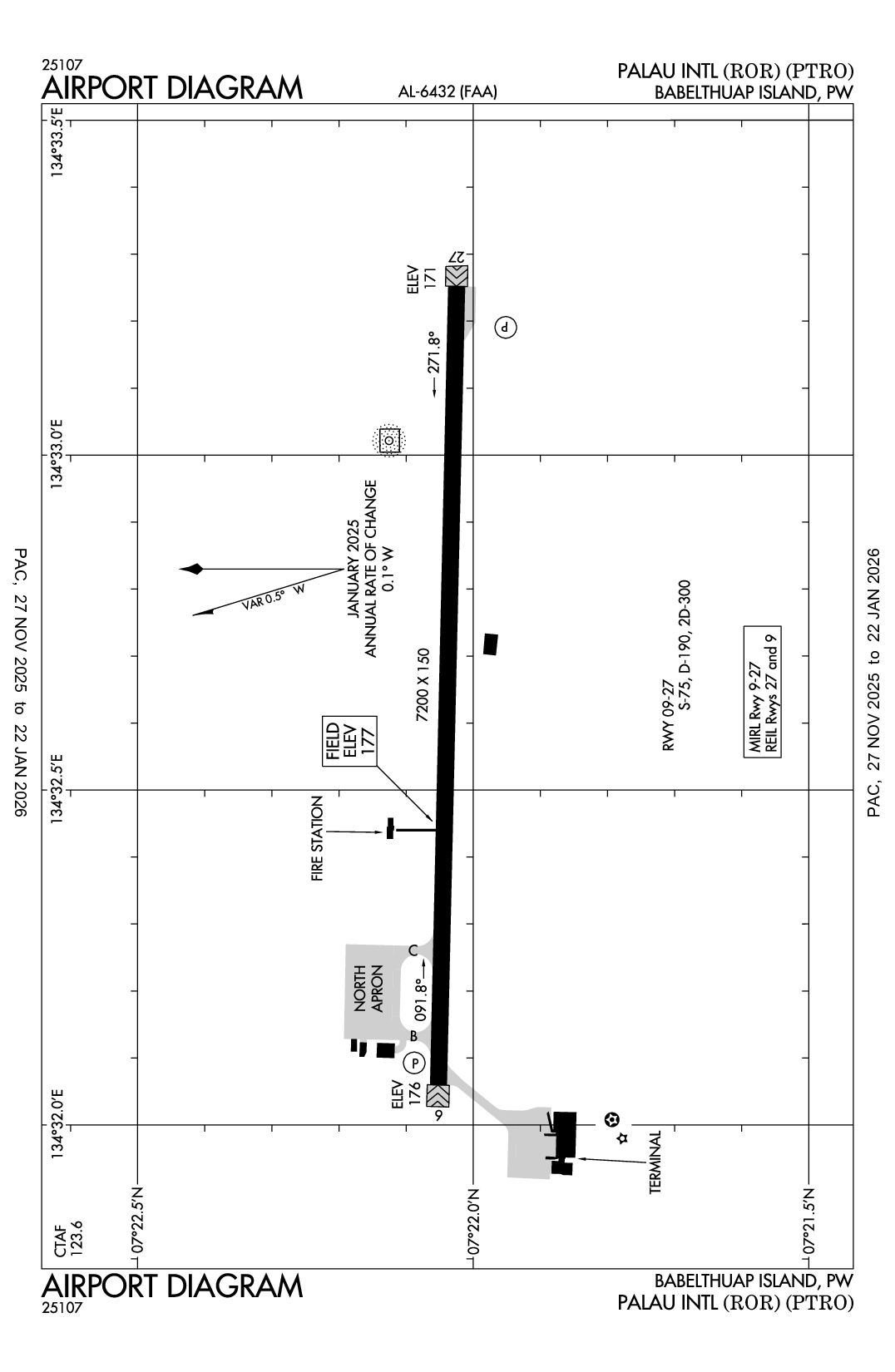

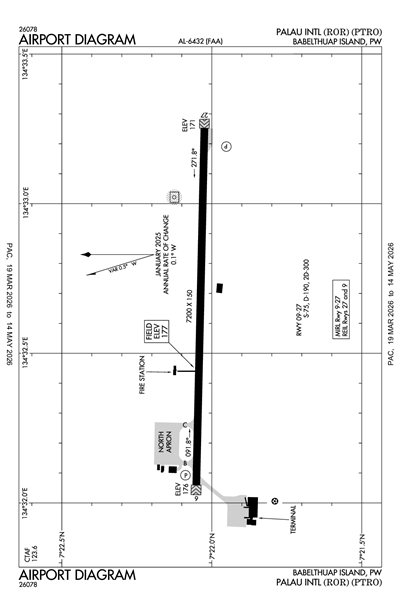

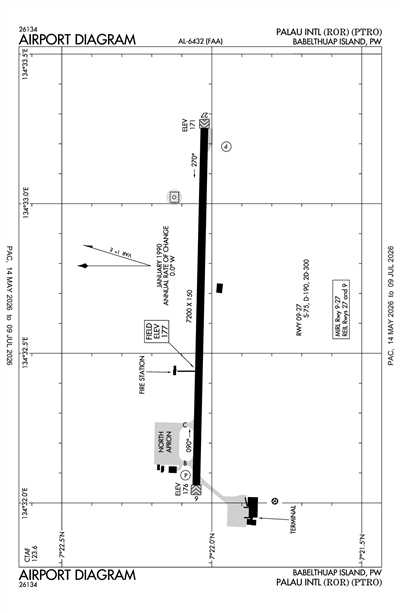

PALAU INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PTRO
PALAU INTL
PublicPUB

4 miles NE of BABELTHUAP ISLAND
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
7° 22' 02"N 134° 32' 39"E
176' MSL
1176' MSL
01E
JET A-1
HONOLULU (HNL)
GNC 13
OAKLAND OCEANIC ARTCC (ZAK)
11/28/24-12/26/24
PTRO MVFR
9:25 PM +09
Light Showers and Rain
Broken 29,000'
Broken 11,000'
Broken 1,300'
10sm
79°F
75°F
29.84"Hg
350° 3kts
CB ALQDS
PTRO 231225Z 35003KT 10SM -SHRA BKN013CB BKN110 BKN290 26/24 A2984 RMK CB ALQDS
Add Your Business

PTRO FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.6

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PTRO
Mon, 12/23 8:25 PM +09
Mon, 12/23 9:00 PM +09 - Tue, 12/24 9:00 PM +09
MVFR
9:00 PM +09 - 9:00 PM +09
Showers in vicinity
Broken 12,000'
Broken 1,500'
6sm
VRB° 4kts
MVFR
Temporary 9:00 PM +09 - 10:00 PM +09
Light Showers and Rain
Overcast 3,000'
Broken 1,300'
5sm
Calm
PTRO 231125Z 2312/2412 VRB04KT P6SM VCSH BKN015 BKN120
   TEMPO 2312/2313 5SM -SHRA BKN013 OVC030
PTRO
FDC
11/5/241721Z !FDC 4/9288 ROR IAP PALAU INTL, BABELTHUAP ISLAND, PW.
RNAV (GPS) RWY 27 ORIG-C ...
CIRCLING CAT A MDA 940/HAA 763, CAT B MDA 980/HAA 803, CAT C/D MDA 1020/HAA 843 2411051721-2506171721EST
10/15/242049Z !FDC 4/9523 ROR IAP PALAU INTL, BABELTHUAP ISLAND, PW.
RNAV (GPS) RWY 9, ORIG-C ...
CHANGE TERMINAL ROUTE TO READ LUBEY (IAF) TO JAKEF (IF/IAF)
180.29/5.00. THIS IS RNAV (GPS) RWY 9, AMDT ORIG-D. 2410152049-PERM
10/15/240326Z !FDC 4/8982 ROR IAP PALAU INTL, BABELTHUAP ISLAND, PW.
RNAV (GPS) RWY 9, ORIG-C ...
LNAV ALL CATS MDA 680/HAT 503
CIRCLING CAT C/D MDA 800/HAA 623 2410150326-2610140326EST
No
ALL
REPUBLIC OF PALAU
P.O. BOX 1471
KOROR, PALAU, PW 96940
Phone: 680-587-3539
PETER POLLOI
P.O. BOX 1471
KOROR, PALAU, PW 96940
Phone: 680-775-7622
HONOLULU FSS (HNL)
Toll Free: 1-800-WX-BRIEF
HNL
--
FOR MIRL RWY 09/27 CTC KOROR RADIO - 123.6.
FOR ROTG BCN CTC KOROR RADIO - 123.6.
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling
Charter Service

Runway 09/27

7200 ft. x 150 ft.
ASPH CONC
Fair
PFC
MED

75,000lbs
190,000lbs
300,000lbs
--
  Runway 09 Runway 27
True Heading 91°271°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 7° 22' 03"N 7° 22' 01"N
Longitude 134° 32' 04"E 134° 33' 15"E
Elevation 176' 171'
Threshold Crossing Height 52 ft. AGL 52 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1ALL UNSKED FLTS MUST FILE A FLT PLAN AT LEAST 7 DAYS PRIOR TO ARRIVAL AND ALL FLTS MUST CTC KOROR COMMUNICATIONS ON 123.6 AT LEAST 20 MINUTES PRIOR TO ARRIVAL.
A110-2ARFF AVBL 24/7.
A110-3BE ALERT TO LARGE NUMBER OF BIRDS ON RY AT NIGHT.
A110-4ALL ACFT EXCEEDING 100000 LBS GWT TAXI TO THR TURN AROUND BEFORE TAXING TO APRON. ACFT UNDER 100000 LBS GWT MAY MAKE A TURN AROUND WHERE FEASIBLE.
A110-5ENTRY PERMIT RQRD CALL 011-680-488-2498 FAX 011-680-488-4385; LANDING PERMIT RQRD MUST GIVE SEVEN DAYS NOTICE EMAIL: POLICEPIA@GMAIL.COM; MPIICOFFICE@GMAIL.COM CALL: 680-587-1411;680-587-2182
A110-6(E94) WX STN 5 MI FM ARPT.
PALAU INTL (ICAO: PTRO, IATA: ROR) is a public airport located in BABELTHUAP ISLAND.
