T16
RESERVE
Public
PUB
5 miles SW of RESERVE, NM
View on
Map
Status
Operational
Coordinates
33° 41' 40"N
108° 50' 60"W
Elevation
6365' MSL
Pattern Alt
7365' MSL
Mag Variation
12E
Fuel
None Listed
FSS
ALBUQUERQUE (ABQ)
Sectional
ALBUQUERQUE
ARTCC
ALBUQUERQUE (ZAB)
Data Effective
11/28/24-12/26/24
KJTC (35nm)
VFR
5:15 AM MST
RAW
Clear
Viz
10sm
Temp
41°F
Dew
23°F
Pres
30.20"Hg
Wind
Calm
RMK
AO2
KJTC 231215Z AUTO 00000KT 10SM CLR 05/M05 A3020 RMK AO2
Services
Frequencies & Documents
Freqs & Docs
TAF
NOTAM
Operations
Runways
Remarks
Add Your Business
T16 FBOs
No FBOs (Fixed Base Operators) are listed for this airport.
X
Send Message to Airport Company
Enter your information and message below.
Your Information
Business
x
UNICOM
--
CTAF
122.9
No communication frequencies available for this airport.

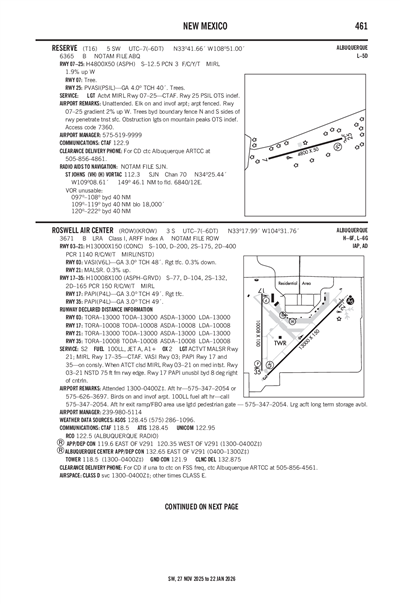

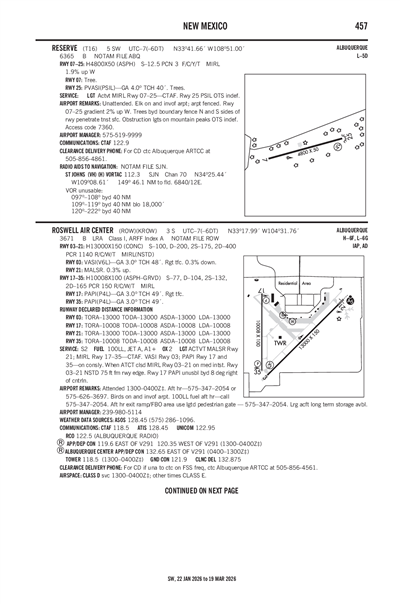

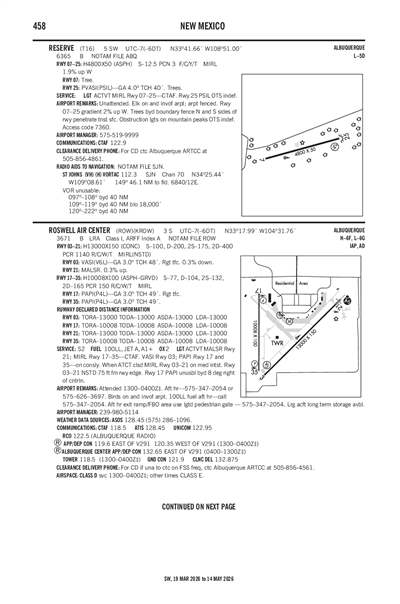

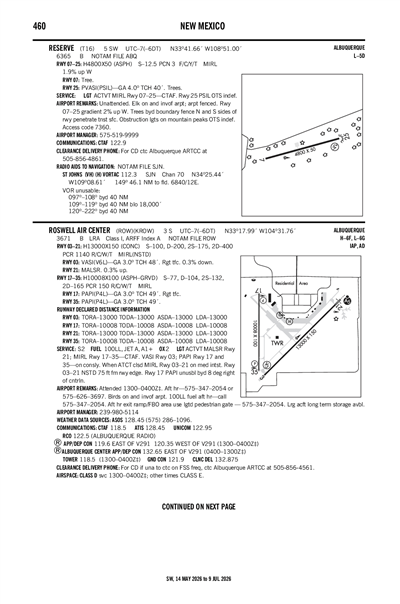

FAA A/FD Pages
FAA A/FD Page
Airport Diagrams
No Documents
Airport Minimums
No Documents
Departure Procedures
No Documents
Hotspot
No Documents
Standard Term. Arrival
No Documents
Instrument Approach
No Documents
Terminal Area Forecast
KTCS (84nm)
RAW
Reported
Mon, 12/23 4:27 AM MST
Valid
Mon, 12/23 5:00 AM MST - Tue, 12/24 5:00 AM MST
VFR
5:00 AM MST - 12:00 PM MST
Broken 20,000'
Scattered 12,000'
Viz
6sm
Wind
340° 5kts
VFR
12:00 PM MST - 6:00 PM MST
Broken 15,000'
Viz
6sm
Wind
150° 5kts
VFR
6:00 PM MST - 5:00 AM MST
Few 25,000'
Viz
6sm
Wind
340° 8kts
KTCS 231127Z 2312/2412 34005KT P6SM SCT120 BKN200
FM231900 15005KT P6SM BKN150
FM240100 34008KT P6SM FEW250
T16
No NOTAM Available
ATC Tower
No
Attendance
UNATNDD
Owner
U. S. FOREST SERVICE
FEDERAL BUILDING
ALBUQUERQUE, NM 87102
Phone: 575-766-2444
Manager
STAN BROWN
PO BOX 507
RESERVE, NM 87830
Phone: 575-519-9999
FSS
ALBUQUERQUE FSS (ABQ)
Toll Free: 1-800-WX-BRIEF
NOTAM
ABQ
Light Schedule
--
Lights
ACTVT MIRL RWY 07/25 - CTAF.
Beacon
N/A
Wind Indicator
Yes - Lighted
Segmented Cir.
Yes
Landing Fee
No
Parking
Tie-Down
Int'l Operations
NOT a Landing Rights Airport
NOT an Airport of Entry
# Single Engine
0
# Multi Engine
0
# Jets
0
# Helicopters
0
# Military
0
# Ultralights
0
Airframe Repair
None
Pwrplant Repair
None
Bottled Oxygen
None
Bulk Oxygen
None
Other Services
None
Runway 07/25
Dimensions
4800 ft. x 50 ft.
Surface Type
ASPH
Surface Cond
Good
Treatment
NONE
Rwy Edge Lgts
MED
Pavement Class
3 /F/C/Y/T
Single Wheel
12,000lbs
Double Wheel
--
Double Tandem
--
Dual Dbl Tand
--
Runway 07
Runway 25
True Heading
75°
255°
Traffic Pattern
Left
Left
Markings
BSC
BSC
Markings Condition
GOOD
GOOD
Latitude
33° 41' 33"N
33° 41' 46"N
Longitude
108° 51' 27"W
108° 50' 33"W
Elevation
6,365'
6,274'
Threshold Crossing Height
--
40 ft. AGL
Visual Glide Path Angle
--
4°
Visual Slope Indicator
--
PSIL
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-3
ELK ON & INVOF ARPT; ARPT FENCED.
A110-5
OBSTN LGTS ON MTN PEAKS OTS INDEF.
A110-6
ACES CODE 7360.
A110-8
FOR CD CTC ALBUQUERQUE ARTCC AT 505-856-4861.
RESERVE (IATA: T16) is a public airport located in RESERVE, NM.
