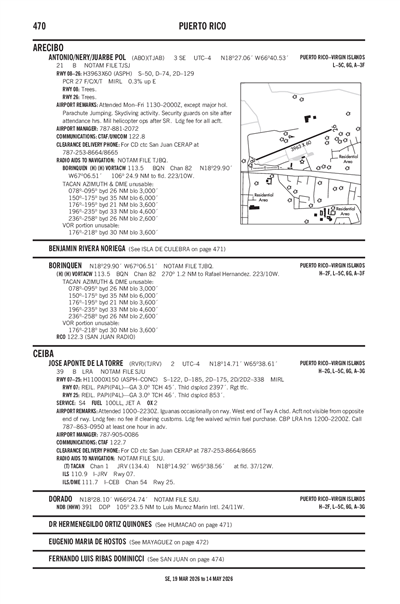

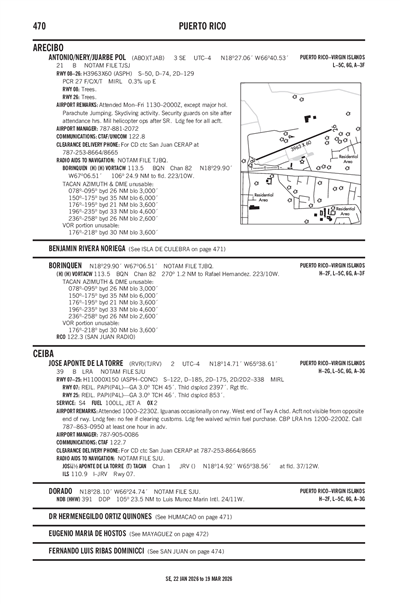

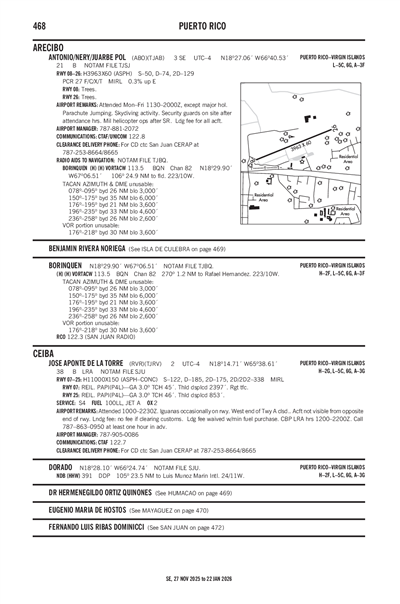

ANTONIO/NERY/JUARBE POL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

TJAB
ANTONIO/NERY/JUARBE POL
PublicPUB

3 miles SE of ARECIBO, PR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
18° 27' 03"N 66° 40' 32"W
21' MSL
1021' MSL
10W
None Listed
SAN JUAN (SJU)
PUERTO RICO-VIRGIN ISLANDS
SAN JUAN (ZSU)
11/28/24-12/26/24
TJBQ (26nm) MVFR
7:50 AM AST
Thunderstorm in vicinity
Broken 3,200'
Broken 1,900'
Broken 1,400'
7sm
75°F
73°F
30.06"Hg
Calm
LTG DSNT NE/ E / SW
TJBQ 231150Z 00000KT 7SM VCTS BKN014 BKN019 BKN032 24/23 A3006 RMK LTG DSNT NE/ E / SW
Add Your Business

TJAB FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

TJBQ (26nm)
Mon, 12/23 7:38 AM AST
Mon, 12/23 8:00 AM AST - Tue, 12/24 8:00 AM AST
VFR
8:00 AM AST - 10:00 AM AST
Light Showers and Rain and Thunderstorm in vicinity
Broken 8,000'
Scattered 4,500'
Few 2,500'
6sm
VRB° 4kts
VFR
10:00 AM AST - 2:00 PM AST
Few 3,000'
6sm
090° 8kts
VFR
2:00 PM AST - 7:00 PM AST
Showers in vicinity
Scattered 5,000'
Scattered 2,500'
6sm
080° 12kts
Gusts 20kts
VFR
7:00 PM AST - 8:00 AM AST
Showers in vicinity
Scattered 5,000'
Few 2,500'
6sm
060° 6kts
TJBQ 231138Z 2312/2412 VRB04KT P6SM -SHRA VCTS FEW025CB SCT045 BKN080
   FM231400 09008KT P6SM FEW030
   FM231800 08012G20KT P6SM VCSH SCT025 SCT050
   FM232300 06006KT P6SM VCSH FEW025 SCT050 AMD NOT SKED 2402/2411
TJAB
Domestic
12/22/242330Z !TJSJ 12/263 ABO OBST TOWER LGT (ASR 1234836) 182839.90N0662507.50W (15.1NM E ABO) 231.0FT (209.0FT AGL) U/S 2412222330-2503220500
12/20/241428Z !TJSJ 12/241 ABO OBST TOWER LGT (ASR 1238405) 182117.70N0664853.60W (10.4NM SW ABO) 1321.9FT (256.9FT AGL) U/S 2412201428-2503200500
12/17/240644Z !TJSJ 12/189 ABO OBST TOWER LGT (ASR 1208558) 182618.10N0664028.20W (0.7NM S ABO) 293.0FT (200.1FT AGL) U/S 2412170644-2501010544
12/10/242251Z !TJSJ 12/115 ABO OBST TOWER LGT (ASR 1320790) 181724.63N0663030.49W (12.8NM SE ABO) 1476FT (199FT AGL) U/S 2412102251-2501102300
12/6/241743Z !TJSJ 12/056 ABO OBST TOWER LGT (ASN 2023-ASO-28148-OE) 182628N0664436W (4.0NM W ABO) 541FT (261FT AGL) U/S 2412061743-2501201730
11/14/240340Z !TJSJ 11/132 ABO OBST TOWER LGT (ASR 1219637) 181905.90N0662356.20W (17.0NM ESE ABO) 1072.8FT (274.9FT AGL) U/S 2411140340-2502110500
11/11/241615Z !TJSJ 11/109 ABO OBST TOWER LGT (ASR 1232271) 182119.20N0662818.80W (12.5NM ESE ABO) 727.7FT (272.0FT AGL) U/S 2411111615-2502090500
11/11/240700Z !TJSJ 11/103 ABO OBST TOWER LGT (ASR 1222669) 182640.90N0663237.30W (7.6NM E ABO) 456.0FT (317.9FT AGL) U/S 2411110700-2502090500
10/31/242104Z !TJSJ 10/285 ABO OBST TOWER LGT (ASR 1011025) 182714.00N0664515.00W (4.5NM W ABO) 508.9FT (298.9FT AGL) U/S 2410312104-2504302359
10/30/241925Z !TJSJ 10/251 ABO OBST TOWER LGT (ASR 1210785) 182746.10N0665224.70W (11.4NM W ABO) 697.8FT (272.0FT AGL) U/S 2410301925-2501280400
10/7/241535Z !TJSJ 10/073 ABO OBST TOWER LGT (ASR 1215922) 181821.00N0665202.10W (14.8NM SW ABO) 1691.9FT (215.9FT AGL) U/S 2410071535-2501050400
9/19/241835Z !TJSJ 09/226 ABO AD AP WDI SEGMENTED CIRCLE LGT U/S 2409191835-2412312200
3/24/241028Z !TJSJ 03/152 ABO AIRSPACE PJE WI AN AREA DEFINED AS 3NM RADIUS OF ABO SFC-17500FT DLY SR-SS 2403241028-2412312202
No
MON-FRI 0730-1600
EXCEPT MAJ. HOL.
PUERTO RICO PORTS AUTH
GPO BOX 362829
SAN JUAN, PR 00936-2829
Phone: (787) 729-8715
EDGAR TORRELLAS
1079 SANTANA
ARECIBO, PR 00612-6614
Phone: 787-881-2072
SAN JUAN FSS (SJU)
Toll Free: 1-800-WX-BRIEF
TJSJ
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
Yes
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Parachute Jump Activity

Runway 08/26

3964 ft. x 60 ft.
ASPH
Fair
NONE
MED

50,000lbs
74,000lbs
129,000lbs
--
  Runway 08 Runway 26
True Heading 68°248°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition FAIR FAIR
Latitude 18° 26' 56"N 18° 27' 11"N
Longitude 66° 40' 51"W 66° 40' 13"W
Elevation 10' 21'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2SECURITY GUARD ON SITE AFTR ATND HRS.
A110-3MILITARY HELICOPTER OPERATIONS AFTER SR.
A110-5FOR CD CTC SAN JUAN CERAP AT 787-253-8664/8665
A110-6SKYDIVING ACTIVITY.
ANTONIO/NERY/JUARBE POL (ICAO: TJAB, IATA: ABO) is a public airport located in ARECIBO, PR.
