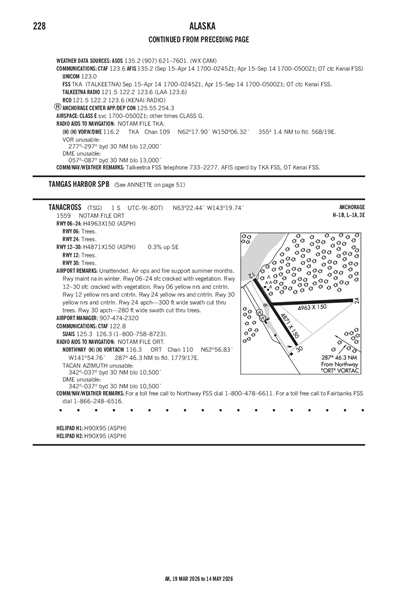

TANACROSS - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

TSG
TANACROSS
PublicPUB

1 miles S of TANACROSS, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
63° 22' 27"N 143° 19' 44"W
1559' MSL
2559' MSL
29E
None Listed
NORTHWAY (ORT)
ANCHORAGE
ANCHORAGE (ZAN)
11/28/24-12/26/24
PFTO (11nm) IFR
2:56 AM AKST
Light Snow
Overcast 600'
9sm
7°F
4°F
29.04"Hg
090° 3kts
AO2 SNB50 SLP497 P0000 60000 T11391156 11139 21150 55005 FZRANO $
PFTO 231156Z AUTO 09003KT 9SM -SN OVC006 M14/M16 A2904 RMK AO2 SNB50 SLP497 P0000 60000 T11391156 11139 21150 55005 FZRANO $
Add Your Business

TSG FBOs

No FBOs (Fixed Base Operators) are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PAOR (45nm)
Mon, 12/23 2:28 AM AKST
Mon, 12/23 3:00 AM AKST - Tue, 12/24 3:00 AM AKST
IFR
3:00 AM AKST - 11:00 AM AKST
Mist
Obscured
1sm
Calm
LIFR
Temporary 3:00 AM AKST - 6:00 AM AKST
Mist
No Clouds
0.75sm
Calm
IFR
11:00 AM AKST - 4:00 PM AKST
Overcast 700'
6sm
Calm
VFR
4:00 PM AKST - 3:00 AM AKST
Fog in vicinity
Scattered 700'
6sm
VRB° 1kts
PAOR 231128Z 2312/2412 00000KT 1SM BR VV003
   TEMPO 2312/2315 3/4SM BR
   FM232000 00000KT P6SM OVC007
   FM240100 VRB01KT P6SM VCFG SCT007
TSG
Domestic
12/10/240135Z !ORT 12/005 TSG AIRSPACE SEE ZAN 11/409 BLASTING 2412100135-2706290600
No
UNATNDD
BUREAU OF LAND MANAGEMENT
1150 UNIVERSITY AVE
FAIRBANKS, AK 99709-3844
Phone: 907-474-2200
LANORE HEPPLER
1150 UNIVERSITY AVE
FAIBANKS, AK 99709
Phone: 907-474-2320
NORTHWAY FSS (ORT)
Toll Free: 1-800-478-6611
ORT
--
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
Cargo Handling

Runway 06/24

4963 ft. x 150 ft.
ASPH
Poor
NONE


--
--
--
--
  Runway 06 Runway 24
True Heading 87°267°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition POOR POOR
Latitude 63° 22' 28"N 63° 22' 31"N
Longitude 143° 20' 14"W 143° 18' 25"W
Elevation 1,547' 1,554'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway 12/30

4871 ft. x 150 ft.
ASPH
Poor
NONE


--
--
--
--
  Runway 12 Runway 30
True Heading 147°327°
Traffic Pattern Left Left
Markings NSTD NSTD
Markings Condition POOR POOR
Latitude 63° 22' 44"N 63° 22' 04"N
Longitude 143° 20' 39"W 143° 19' 41"W
Elevation 1,544' 1,559'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No

Runway H1

90 ft. x 95 ft.

ASPH
NONE


--
--
--
--
  Runway H1 Runway
True Heading 40°220°
Traffic Pattern
Markings
Markings Condition
Latitude 63° 22' 20"N N/A
Longitude 143° 20' 28"W N/A
Elevation 1,556' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway H2

90 ft. x 95 ft.

ASPH
NONE


--
--
--
--
  Runway H2 Runway
True Heading 40°220°
Traffic Pattern
Markings
Markings Condition
Latitude 63° 22' 21"N N/A
Longitude 143° 20' 29"W N/A
Elevation 1,556' --
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1AIR OPS & FIRE SUPPORT SUMMER MONTHS. RWY MAINT NA IN WINTER.
A110-4SUAIS - 125.3/126.3/1-800-758-8723.
TANACROSS (IATA: TSG) is a public airport located in TANACROSS, AK.
