X13

CARRABELLE-THOMPSON

PublicPUB

3 miles W of CARRABELLE, FL

View on Map

Status

Operational

Coordinates

29° 50' 31"N 84° 42' 04"W

Elevation

20' MSL

Pattern Alt

1020' MSL

Mag Variation

01W

Fuel

100LL

FSS

GAINESVILLE (GNV)

Sectional

JACKSONVILLE

ARTCC

JACKSONVILLE (ZJX)

Data Effective

12/26/24-1/23/25

KAAF (18nm) VFR

10:53 AM EST RAW

Clear

Viz

10sm

Temp

32°F

Dew

27°F

Pres

30.44"Hg

Wind

040° 13kts

Gusts 20kts

RMK

AO2 SLP306 T00001028 $

KAAF 221553Z AUTO 04013G20KT 10SM CLR 00/M03 A3044 RMK AO2 SLP306 T00001028 $

Add Your Business

X13 FBOs

Promote Listing

Carrabelle-Thompson Airport

UNICOM: 122.9

Phone: (850) 697-3618

0 Reviews (Read | Sign In To Write)

Titan

As of 1/21	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	4.88
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM -- CTAF 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

FAA A/FD Page

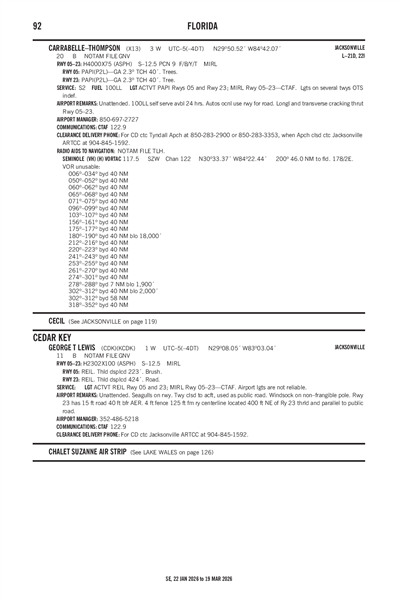

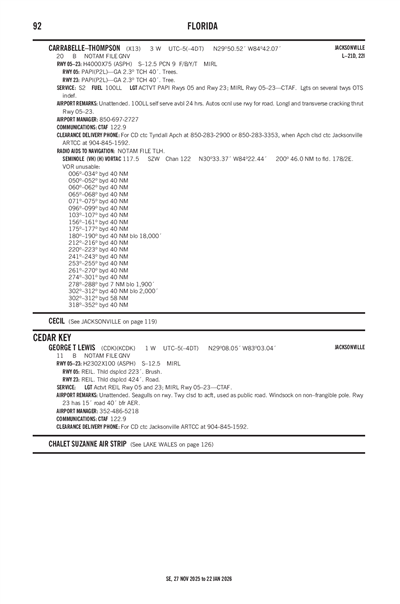

Airport Diagrams

No Documents

Airport Minimums

No Documents

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

No Documents

Terminal Area Forecast

KTLH (38nm)

RAW

Reported

Wed, 1/22 6:20 AM EST

Valid

Wed, 1/22 7:00 AM EST - Thu, 1/23 7:00 AM EST

MVFR

7:00 AM EST - 8:00 AM EST

Broken 4,000'
Broken 2,000'

Viz

6sm

Wind

350° 12kts

VFR

8:00 AM EST - 3:00 PM EST

Sky Clear

Viz

6sm

Wind

020° 9kts

MVFR

3:00 PM EST - 10:00 PM EST

Broken 2,000'

Viz

6sm

Wind

030° 7kts

IFR

10:00 PM EST - 7:00 AM EST

Mist

Broken 900'

Viz

3sm

Wind

050° 3kts

KTLH 221120Z 2212/2312 35012KT P6SM BKN020 BKN040
   FM221300 02009KT P6SM SKC
   FM222000 03007KT P6SM BKN020
   FM230300 05003KT 3SM BR BKN009

X13

Domestic
1/22/250756Z	!GNV 01/297 X13 OBST TOWER LGT (ASR 1288252) 300140.70N0845828.20W (17.9NM NW X13) 368.1FT (346.1FT AGL) U/S 2501220756-2502060656
1/22/250753Z	!GNV 01/295 X13 OBST TOWER LGT (ASR 1234767) 295326.20N0843525.00W (6.6NM ENE X13) 340.2FT (306.1FT AGL) U/S 2501220753-2502060653
1/22/250550Z	!GNV 01/287 X13 OBST TOWER LGT (ASR 1251819) 295424.30N0843815.80W (5.2NM NE X13) 214.9FT (206.0FT AGL) U/S 2501220550-2505220550
1/11/251503Z	!GNV 01/142 X13 OBST TOWER LGT (ASR 1028378) 295154.70N0843955.60W (2.4NM NE X13) 309.1FT (293.0FT AGL) U/S 2501111503-2502172359
1/4/252035Z	!GNV 01/050 X13 OBST TOWER LGT (ASR 1029262) 295052.50N0843927.20W (2.3NM E X13) 248.0FT (232.0FT AGL) U/S 2501042035-2504040500

ATC Tower

Attendance

UNATNDD

Owner

CITY OF CARRABELLE
CITY ADMINISTRATOR, 1001 GRAY AVE.
CARRABELLE, FL 32322
Phone: 850-697-2727

Manager

COURTNEY MILLENDER DEMPSEY
317 AIRPORT RD
CARRABELLE, FL 32322
Phone: 850-697-2727

FSS

GAINESVILLE FSS (GNV)
Toll Free: 1-800-WX-BRIEF

NOTAM

GNV

Light Schedule

Lights

ACTVT PAPI RWYS 05 & 23; MIRL RWY 05/23 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 05/23

Dimensions

4000 ft. x 75 ft.

Surface Type

ASPH

Surface Cond

Poor

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

9 /F/B/Y/T

Single Wheel

12,000lbs

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 05	Runway 23
True Heading	57°	237°
Traffic Pattern	Left	Left
Markings	BSC	BSC
Markings Condition	FAIR	FAIR
Latitude	29° 50' 20"N	29° 50' 42"N
Longitude	84° 42' 23"W	84° 41' 45"W
Elevation	--	--
Threshold Crossing Height	40 ft. AGL	40 ft. AGL
Visual Glide Path Angle	2.3°	2.3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

A110-1	LGTS ON SEVERAL TWYS OTS INDEFLY.
A110-2	FOR CD CTC TYNDALL APCH AT 850-283-2900 OR 850-283-3353, WHEN APCH CLSD CTC JACKSONVILLE ARTCC AT 904-845-1592.

CARRABELLE-THOMPSON (IATA: X13) is a public airport located in CARRABELLE, FL.
