iFlightPlanner



...

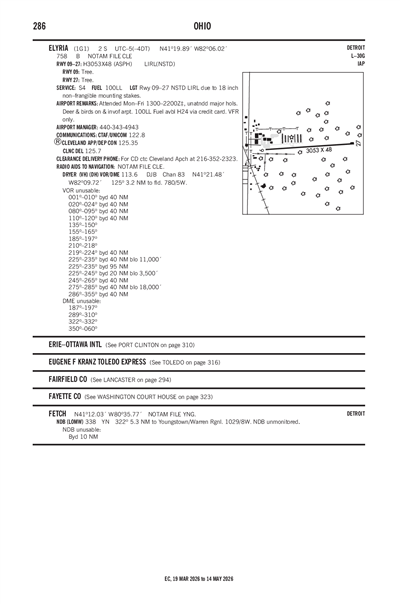

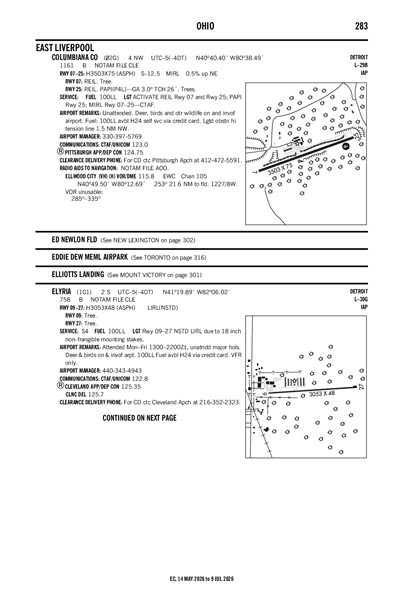

ELYRIA - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

1G1
ELYRIA
PublicPUB

2 miles S of ELYRIA, OH
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
41° 19' 53"N 82° 06' 01"W
758' MSL
1758' MSL
06W
100LL
CLEVELAND (CLE)
DETROIT
CLEVELAND (ZOB)
5/16/24-6/13/24
KLPR (4nm) VFR
10:53 PM EDT
Overcast 12,000'
Broken 9,000'
10sm
60°F
55°F
29.97"Hg
290° 3kts
AO2 SLP146 T01560128 51007
KLPR 290253Z AUTO 29003KT 10SM BKN090 OVC120 16/13 A2997 RMK AO2 SLP146 T01560128 51007
List Your Business

1G1 FBOs, Flight Schools and Ground Support

Promote Listing
Elyria Airport
Freq: 122.8
Phone: (440) 336-0215
No Rating Available
1 Review (Read | Sign In To Write)
1 out of 1 Recommend
Independent
As of 5/21
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.25
Full Serve

1G1 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

1G1 Hotels

No hotels are listed for this airport.

1G1 Restaurants

No restaurants are listed for this airport.

1G1 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCLE (12nm)
Tue, 5/28 10:43 PM EDT
Tue, 5/28 11:00 PM EDT - Thu, 5/30 2:00 AM EDT
VFR
11:00 PM EDT - 5:00 AM EDT
Broken 10,000'
6sm
320° 5kts
VFR
5:00 AM EDT - 10:00 AM EDT
Showers in vicinity
Overcast 6,000'
Scattered 4,000'
6sm
050° 4kts
VFR
10:00 AM EDT - 5:00 PM EDT
Showers in vicinity
Broken 4,000'
6sm
350° 7kts
MVFR
Temporary 2:00 PM EDT - 4:00 PM EDT
Light Showers and Rain
Broken 3,000'
5sm
Calm
VFR
5:00 PM EDT - 8:00 PM EDT
Broken 5,000'
6sm
350° 13kts
Gusts 22kts
VFR
8:00 PM EDT - 2:00 AM EDT
Scattered 10,000'
6sm
360° 9kts
KCLE 290243Z 2903/3006 32005KT P6SM BKN100
   FM290900 05004KT P6SM VCSH SCT040 OVC060
   FM291400 35007KT P6SM VCSH BKN040
   TEMPO 2918/2920 5SM -SHRA BKN030
   FM292100 35013G22KT P6SM BKN050
   FM300000 36009KT P6SM SCT100
1G1
Domestic
11/9/231513Z !CLE 11/238 1G1 OBST STACK LGT (ASN UNKNOWN) 413016N0820313W (10.5NM NNE 1G1) 1190FT (600FT AGL) U/S 2311091513-2412312359
FDC
5/29/241100Z !FDC 4/9832 1G1 IAP ELYRIA, ELYRIA, OH.
VOR OR GPS-A, AMDT 7D...
VOR PORTION NA,
DJB VOR/DME OUT OF SERVICE. 2405291100-2406042119EST
4/29/241334Z !FDC 4/6125 1G1 ODP ELYRIA, ELYRIA, OH.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 2...
ADD TAKEOFF OBSTACLES NOTE: RWY 27, BUILDING 634FT FROM DER, 218FT RIGHT OF CENTERLINE, 25FT AGL/778FT MSL.
ALL OTHER DATA REMAINS AS PUBLISHED. 2404291334-2604291334EST
No
MON-FRI 0800-1700
ANGELO A GOUSIOS
3593 MEDINA RD #319
MEDINA, OH 44256-8182
Phone: 440-343-4393
ANGELO GOUSIOS
3593 MEDINA RD #319
MEDINA, OH 44256-8182
Phone: 440-343-4943
CLEVELAND FSS (CLE)
Toll Free: 1-800-WX-BRIEF
CLE
Sunset to Sunrise
--
N/A
Yes
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
66
1
0
0
0
0
Major
Major
None
None
Avionics

Runway 09/27

3053 ft. x 48 ft.
ASPH
Excellent
NONE
NSTD

--
--
--
--
  Runway 09 Runway 27
True Heading 85°265°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 41° 19' 52"N 41° 19' 55"N
Longitude 82° 06' 21"W 82° 05' 41"W
Elevation 756' 758'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights No No
A110-1DEER & BIRDS ON & INVOF ARPT.
A110-2FOR CD CTC CLEVELAND APCH AT 216-352-2323.
ELYRIA (IATA: 1G1) is a public airport located in ELYRIA, OH.
