PADGHAM FLD - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

35D
PADGHAM FLD
PublicPUB

1 miles E of ALLEGAN, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
42° 31' 50"N 85° 49' 26"W
706' MSL
1706' MSL
05W
100LL
LANSING (LAN)
CHICAGO
CHICAGO (ZAU)
5/16/24-6/13/24
KBIV (18nm) VFR
6:53 AM EDT
Clear
10sm
58°F
56°F
29.82"Hg
270° 5kts
AO2 SLP098 T01440133
KBIV 091053Z AUTO 27005KT 10SM CLR 14/13 A2982 RMK AO2 SLP098 T01440133
Add Your Business

35D FBOs

Promote Listing
Padgham Field
UNICOM: 122.8
Phone: (269) 673-5511
Other: (616) 990-2153
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 6/1
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.90
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

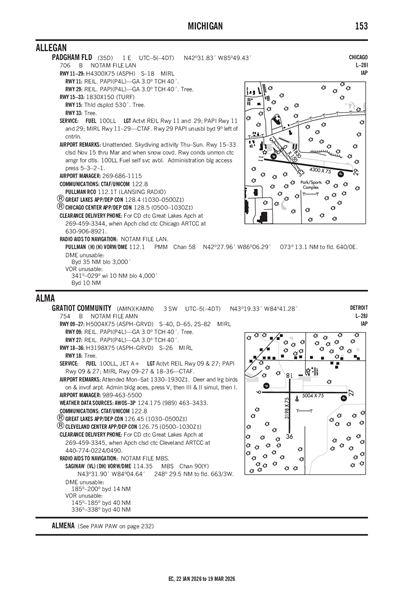

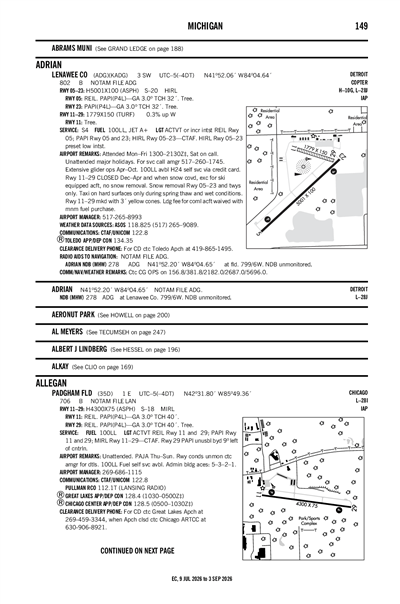

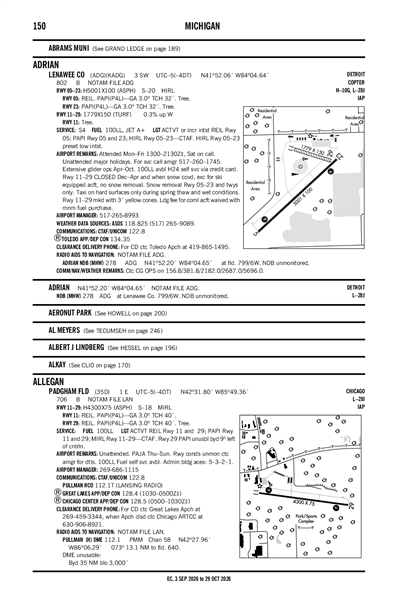

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAZO (22nm)
Sun, 6/9 1:45 AM EDT
Sun, 6/9 2:00 AM EDT - Mon, 6/10 2:00 AM EDT
IFR
2:00 AM EDT - 8:00 AM EDT
Broken 500'
6sm
VRB° 3kts
VFR
8:00 AM EDT - 12:00 PM EDT
Scattered 8,000'
6sm
260° 8kts
VFR
12:00 PM EDT - 9:00 PM EDT
Broken 12,000'
Scattered 6,000'
6sm
300° 16kts
Gusts 23kts
VFR
9:00 PM EDT - 2:00 AM EDT
Overcast 5,000'
6sm
320° 9kts
KAZO 090545Z 0906/1006 VRB03KT P6SM BKN005
   FM091200 26008KT P6SM SCT080
   FM091600 30016G23KT P6SM SCT060 BKN120
   FM100100 32009KT P6SM OVC050
35D
Domestic
6/1/241438Z !LAN 06/006 35D OBST TOWER LGT (ASR 1005884) 423453.20N0854517.40W (4.3NM NE 35D) 1360.2FT (435.0FT AGL) U/S 2406011438-2407161437
5/28/240426Z !LAN 05/466 35D OBST TOWER LGT (ASR 1241738) 422837.10N0855123.10W (3.5NM SSW 35D) 981.0FT (251.0FT AGL) U/S 2405280426-2406120326
4/8/241815Z !LAN 04/142 35D RWY 15/33 CLSD 2404081815-2408082359
3/25/240312Z !LAN 03/427 35D OBST TOWER LGT (ASR 1205909) 423236.90N0855232.90W (2.4NM WNW 35D) 926.8FT (292.0FT AGL) U/S 2403250312-2407230312
2/23/241916Z !LAN 02/354 35D RWY 11 PAPI U/S 2402231916-2408232111EST
No
UNATNDD
CITY OF ALLEGAN
231 TROWBRIDGE ST
ALLEGAN, MI 49010-1306
Phone: 269-673-5511
DOUG KADZBAN
231 TROWBRIDGE ST
ALLEGAN, MI 49010-1306
Phone: 269-686-1115
LANSING FSS (LAN)
Toll Free: 1-800-WX-BRIEF
LAN
--
ACTVT REIL RWY 11 & 29; PAPI RWY 11 & 29; MIRL RWY 11/29 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
36
5
0
0
0
0
None
None
None
None
Parachute Jump Activity

Runway 11/29

4300 ft. x 75 ft.
ASPH
Good
NONE
MED

18,000lbs
--
--
--
  Runway 11 Runway 29
True Heading 98°278°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 42° 31' 51"N 42° 31' 45"N
Longitude 85° 49' 50"W 85° 48' 53"W
Elevation 704' 703'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes

Runway 15/33

1830 ft. x 150 ft.
TURF
Fair
NONE


--
--
--
--
  Runway 15 Runway 33
True Heading 141°321°
Traffic Pattern Left Left
Markings
Markings Condition
Latitude 42° 31' 60"N 42° 31' 46"N
Longitude 85° 49' 43"W 85° 49' 28"W
Elevation 700' 704'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights No No
Runway End Identifier Lights No No
A110-5ADMIN BLDG ACCESS, PRESS 5-3-2-1.
A110-6SKYDIVING ACTIVITY THU - SUN.
A110-7FOR CD CTC GREAT LAKES APCH AT 269-459-3344, WHEN APCH CLSD CTC CHICAGO ARTCC AT 630-906-8921.
A110-8RWY CONDS UNMON CTC AMGR FOR DTLS.
PADGHAM FLD (IATA: 35D) is a public airport located in ALLEGAN, MI.
