iFlightPlanner



...

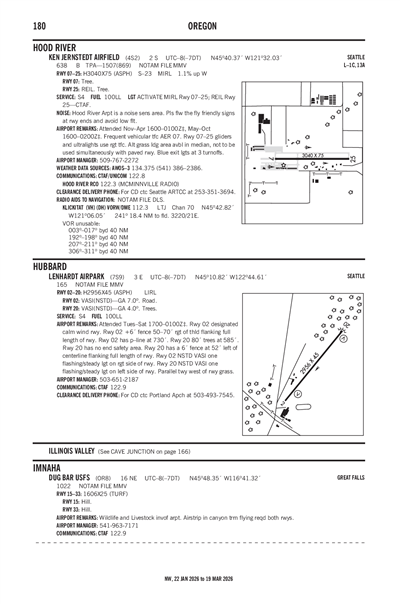

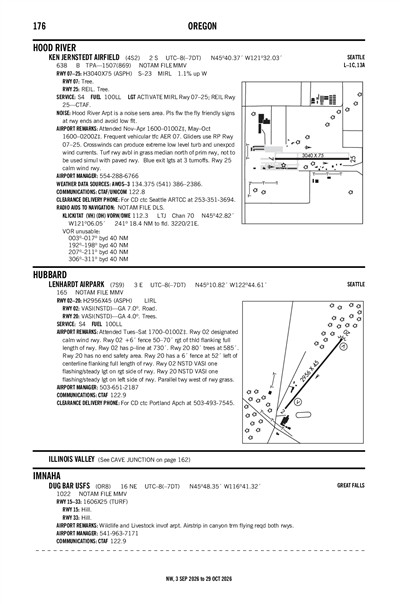

LENHARDT AIRPARK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

7S9
LENHARDT AIRPARK
PublicPUB

3 miles E of HUBBARD, OR
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 10' 49"N 122° 44' 36"W
165' MSL
1165' MSL
19E
100LL
MC MINNVILLE (MMV)
SEATTLE
SEATTLE (ZSE)
5/16/24-6/13/24
KUAO (4nm) VFR
3:53 AM PDT
Scattered 4,700'
Few 2,400'
10sm
50°F
48°F
30.28"Hg
210° 3kts
AO2 RAE0959B01E32 SLP251 P0001 T01000089
KUAO 291053Z AUTO 21003KT 10SM FEW024 SCT047 10/09 A3028 RMK AO2 RAE0959B01E32 SLP251 P0001 T01000089
List Your Business

7S9 FBOs, Flight Schools and Ground Support

Promote Listing
AirHaven at Lenhardt Airpark
Phone: (503) 651-2187
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/21
 100LL Jet A Jet A+ Mogas UL94
Self Serve 6.05
Full Serve

7S9 Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

7S9 Hotels

No hotels are listed for this airport.

7S9 Restaurants

No restaurants are listed for this airport.

7S9 Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

KUAO (4nm)
Tue, 5/28 10:20 PM PDT
Tue, 5/28 11:00 PM PDT - Wed, 5/29 11:00 PM PDT
VFR
11:00 PM PDT - 1:00 PM PDT
Broken 4,500'
6sm
VRB° 5kts
VFR
1:00 PM PDT - 8:00 PM PDT
Scattered 4,000'
6sm
240° 7kts
VFR
8:00 PM PDT - 11:00 PM PDT
Scattered 8,000'
6sm
320° 5kts
KUAO 290520Z 2906/3006 VRB05KT P6SM BKN045
   FM292000 24007KT P6SM SCT040
   FM300300 32005KT P6SM SCT080
7S9
No NOTAM Available
No
TUE-SAT 0900-1700
LENHARDT FAMILY
29502 S MERIDIAN RD
HUBBARD, OR 97032
Phone: 503-651-2187
GLENN LENHARDT
29502 S MERIDIAN RD
HUBBARD, OR 97032
Phone: 503-651-2187
MC MINNVILLE FSS (MMV)
Toll Free: 1-800-WX-BRIEF
MMV
Sunset to Sunrise
--
N/A
Yes - Lighted
No
No
None
NOT a Landing Rights Airport
NOT an Airport of Entry
108
1
0
0
0
4
Major
Major
None
None
Pilot Instruction

Runway 02/20

2956 ft. x 45 ft.
ASPH
Good
NONE
LOW

--
--
--
--
  Runway 02 Runway 20
True Heading 40°220°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 45° 10' 42"N 45° 11' 05"N
Longitude 122° 44' 49"W 122° 44' 22"W
Elevation -- --
Threshold Crossing Height -- --
Visual Glide Path Angle 7° 4°
Visual Slope Indicator NSTD NSTD
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2RY 02 +6 FT FENCE 50-70' FT R OF THLD FLANKING FULL LENGTH OF RUNWAY.
A110-4RY 02 HAS POWERLINE AT 730 FT.
A110-5PARALLEL TWY WEST OF RY - GRASS.
A110-6RY 02 DESIGNATED CALM WIND RY.
A110-7RUNWAY 20 HAS NO END SAFETY AREA.
A110-8RUNWAY 20 HAS A 6' FENCE AT 52' LEFT OF CENTERLINE FLANKING FULL LENGTH OF RUNWAY.
A110-9FOR CD CTC PORTLAND APCH AT 503-493-7545.
LENHARDT AIRPARK (IATA: 7S9) is a public airport located in HUBBARD, OR.
