iFlightPlanner



...

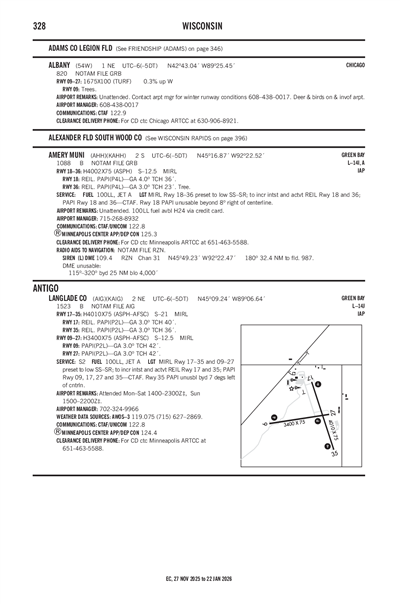

LANGLADE COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAIG
LANGLADE COUNTY
PublicPUB

2 miles NE of ANTIGO, WI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
45° 09' 14"N 89° 06' 38"W
1523' MSL
2523' MSL
02W
JET A, 100LL
GREEN BAY (GRB)
GREEN BAY
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KAIG VFR
7:55 AM CDT
Clear
10sm
53°F
41°F
30.00"Hg
150° 8kts
AO2 T01150051
KAIG 111255Z AUTO 15008KT 10SM CLR 12/05 A3000 RMK AO2 T01150051
Add Your Business

KAIG FBOs

Promote Listing
1521, LLC
UNICOM: 122.8
Phone: (715) 623-4525
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/17
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.84 4.35
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
715-627-2869
 119.075

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KAUW (26nm)
Tue, 6/11 6:30 AM CDT
Tue, 6/11 7:00 AM CDT - Wed, 6/12 7:00 AM CDT
VFR
7:00 AM CDT - 12:00 PM CDT
Broken 25,000'
6sm
150° 6kts
VFR
12:00 PM CDT - 2:00 PM CDT
Overcast 8,000'
6sm
190° 9kts
Gusts 15kts
VFR
2:00 PM CDT - 5:00 PM CDT
Light Showers and Rain
Overcast 4,000'
6sm
190° 9kts
Gusts 17kts
MVFR
5:00 PM CDT - 6:00 PM CDT
Light Showers and Rain
Broken 2,500'
6sm
190° 9kts
Gusts 18kts
MVFR
6:00 PM CDT - 12:00 AM CDT
Broken 2,200'
6sm
190° 8kts
Gusts 16kts
VFR
Temporary 9:00 PM CDT - 12:00 AM CDT
Broken 3,500'
N/A
Calm
VFR
12:00 AM CDT - 7:00 AM CDT
Scattered 3,500'
6sm
260° 4kts
KAUW 111130Z 1112/1212 15006KT P6SM BKN250
   FM111700 19009G15KT P6SM OVC080
   FM111900 19009G17KT P6SM -SHRA OVC040
   FM112200 19009G18KT P6SM -SHRA BKN025
   FM112300 19008G16KT P6SM BKN022
   TEMPO 1202/1205 BKN035
   FM120500 26004KT P6SM SCT035
KAIG
Domestic
5/29/240323Z !AIG 05/011 AIG OBST TOWER LGT (ASR 1247723) 445753.90N0890018.40W (12.2NM SSE AIG) 1740.2FT (500.0FT AGL) U/S 2405290323-2407312359
5/23/241129Z !AIG 05/008 AIG RWY 17 RWY END ID LGT U/S 2405231129-2411252111EST
5/9/241438Z !AIG 05/003 AIG OBST TOWER LGT (ASN 2023-AGL-15313-OE) 450333N0890030W (7.2NM SE AIG) 1580FT (255FT AGL) U/S 2405091438-2406231430
4/15/241453Z !AIG 04/005 AIG RWY 35 RWY END ID LGT U/S 2404151453-2410152111EST
4/15/241452Z !AIG 04/004 AIG RWY 09 PAPI U/S 2404151452-2410152111EST
3/20/241733Z !AIG 03/008 AIG RWY 17 PAPI U/S 2403201733-2409202111EST
FDC
5/22/241322Z !FDC 4/7982 AIG IAP LANGLADE COUNTY, ANTIGO, WI.
RNAV (GPS) RWY 17, AMDT 2A...
CIRCLING CAT C/D MDA
2260/HAA 737, VISBILITY CAT C 2, CAT D 2 1/4. CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER
SETTING NOT RECEIVED, USE WAUSAU DOWNTOWN ALTIMETER SETTING AND INCREASE LPV DA TO 1877 FEET
AND ALL VISIBILITIES 1/4 SM. INCREASE LNAV/VNAV DA TO 2029 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE ALL
MDAS 120 FEET AND LNAV VISIBILITY CAT C/D 1/4 SM, AND CIRCLING VISIBILITY CAT C/D 1/2 SM.
2405221322-2605221322EST
5/22/241322Z !FDC 4/7981 AIG IAP LANGLADE COUNTY, ANTIGO, WI.
RNAV (GPS) RWY 35, AMDT 2B...
CIRCLING CAT C/D MDA
2260/HAA 737, VISBILITY CAT C 2, CAT D 2 1/4. CHANGE ALTIMETER NOTE TO READ: WHEN LOCAL ALTIMETER
SETTING NOT RECEIVED, USE WAUSAU DOWNTOWN ALTIMETER SETTING AND INCREASE LPV DA TO 1877 FEET
AND ALL VISIBILITIES 1/4 SM. INCREASE LNAV/VNAV DA TO 2029 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE ALL
MDAS 120 FEET AND LNAV VISIBILITY CAT C/D 1/4 SM, AND CIRCLING VISIBILITY CAT C/D 1/2 SM.
2405221322-2605221322EST
No
MON-SAT 0800-1700
SUN 0900-1600
LANGLADE COUNTY
N3689 N LANGLADE RD
ANTIGO, WI 54409
Phone: (715) 623-3539
DONALD BINTZ
N3689 N LANGLADE RD
ANTIGO, WI 54409
Phone: 702-324-9966
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
AIG
--
MIRL RWY 17/35 & 09/27 PRESET TO LOW SS-SR; TO INCR INTST AND ACTVT REIL RWY 17 & 35; PAPI RWY 09, 17, 27 & 35 - CTAF.
N/A
Yes - Lighted
No
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
19
0
1
0
0
0
Minor
Minor
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 09/27

3400 ft. x 75 ft.
ASPH
Excellent
AFSC
MED

12,000lbs
--
--
--
  Runway 09 Runway 27
True Heading 83°263°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 45° 09' 13"N 45° 09' 17"N
Longitude 89° 07' 12"W 89° 06' 25"W
Elevation 1,516' 1,523'
Threshold Crossing Height 42 ft. AGL 42 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 17/35

4010 ft. x 75 ft.
ASPH
Fair
AFSC
MED

21,000lbs
--
--
--
  Runway 17 Runway 35
True Heading 164°344°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 45° 09' 33"N 45° 08' 55"N
Longitude 89° 06' 37"W 89° 06' 22"W
Elevation 1,520' 1,518'
Threshold Crossing Height 40 ft. AGL 36 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights No No
Runway End Identifier Lights Yes Yes
A110-1FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.
LANGLADE COUNTY (ICAO: KAIG, IATA: AIG) is a public airport located in ANTIGO, WI.
