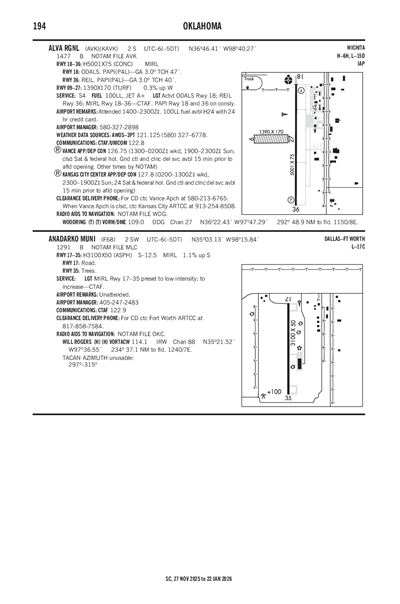

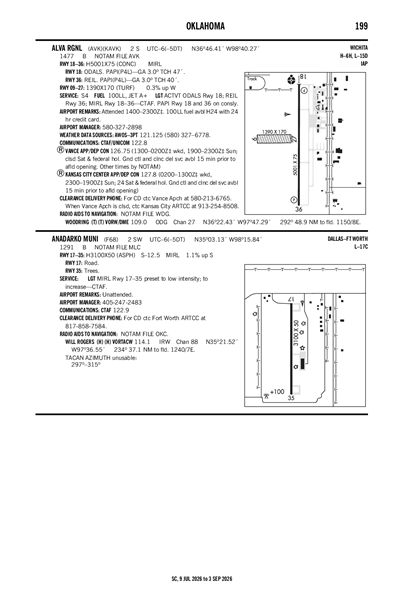

ALVA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KAVK
ALVA RGNL
PublicPUB

2 miles S of ALVA, OK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
36° 46' 25"N 98° 40' 16"W
1477' MSL
2477' MSL
04E
JET A, 100LL
MC ALESTER (MLC)
WICHITA
KANSAS CITY (ZKC)
5/16/24-6/13/24
KAVK VFR
3:55 AM CDT
Clear
10sm
70°F
66°F
29.83"Hg
020° 14kts
Gusts 24kts
AO2
KAVK 090855Z AUTO 02014G24KT 10SM CLR 21/19 A2983 RMK AO2
Add Your Business

KAVK FBOs

Promote Listing
Alva Regional Airport
UNICOM: 122.8
Phone: (580) 327-2898
Other: (580) 748-2709
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/28
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 4.99
Full Serve 4.00
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
580-327-6778
 121.125

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KWWR (46nm)
Sun, 6/9 4:09 AM CDT
Sun, 6/9 4:00 AM CDT - Mon, 6/10 1:00 AM CDT
VFR
4:00 AM CDT - 9:00 AM CDT
Broken 8,000'
6sm
360° 10kts
MVFR
9:00 AM CDT - 2:00 PM CDT
Overcast 2,500'
6sm
030° 12kts
Gusts 19kts
VFR
2:00 PM CDT - 1:00 AM CDT
Broken 5,000'
6sm
050° 11kts
KWWR 090909Z 0909/1006 36010KT P6SM BKN080
   FM091400 03012G19KT P6SM OVC025
   FM091900 05011KT P6SM BKN050
KAVK
FDC
5/20/241821Z !FDC 4/6930 AVK IAP ALVA RGNL, ALVA, OK.
RNAV (GPS) RWY 36, ORIG-A...
LNAV/VNAV CATS A/B/C DA 1785/HAT 314.
LNAV CATS A/B/C MDA 1900/HAT 429. VIS CAT C 1 1/4.
VDP 1.22 NM TO RW36.
WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE VANCE AFB ALTIMETER SETTING AND INCREASE ALL DA 127 FEET AND ALL MDA 140 FEET; INCREASE LPV ALL CATS AND LNAV CATS C VISIBILITY 3/8 MILE AND LNAV/VNAV ALL CATS VISIBILITY 1/2 MILE.
TEMPORARY RIG, 1585 MSL, 3117FT WEST OF KAVK (2023-ASW-217-NRA).
2405201821-2412301821EST
No
0800-1700
CITY OF ALVA
415 4TH ST.
ALVA, OK 73717
Phone: 580-327-1340
DERRICK COURSON
2875 COLLEGE BLVD.
ALVA, OK 73717
Phone: 580-327-2898
MC ALESTER FSS (MLC)
Toll Free: 1-800-WX-BRIEF
AVK
--
ACTVT ODALS RWY 18; REIL RWY 36; MIRL RWY 18/36 - CTAF. PAPI RWY 18 & 36 ON CONSLY.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
32
1
2
1
0
0
Major
Major
None
None
Crop Dusting
Pilot Instruction
Aircraft Rental

Runway 09/27

1390 ft. x 170 ft.
TURF
Good
NONE


--
--
--
--
  Runway 09 Runway 27
True Heading 90°270°
Traffic Pattern
Markings
Markings Condition
Latitude 36° 46' 27"N 36° 46' 27"N
Longitude 98° 40' 35"W 98° 40' 17"W
Elevation 1,476' 1,472'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 18/36

5001 ft. x 75 ft.
CONC
Good
NONE
MED

--
--
--
--
  Runway 18 Runway 36
True Heading 180°360°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 36° 46' 49"N 36° 45' 60"N
Longitude 98° 40' 13"W 98° 40' 14"W
Elevation 1,477' 1,469'
Threshold Crossing Height 47 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights ODALS
Centerline Lights
Runway End Identifier Lights No Yes
A110-1FOR CD CTC VANCE APCH AT 580-213-6765. WHEN VANCE APCH IS CLSD, CTC KANSAS CITY ARTCC AT 913-254-8508.
ALVA RGNL (ICAO: KAVK, IATA: AVK) is a public airport located in ALVA, OK.
