iFlightPlanner



...

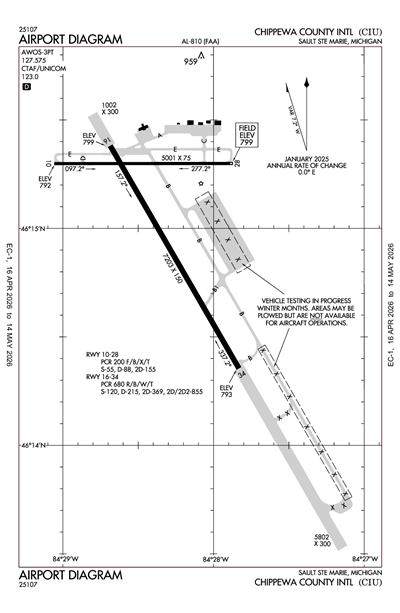

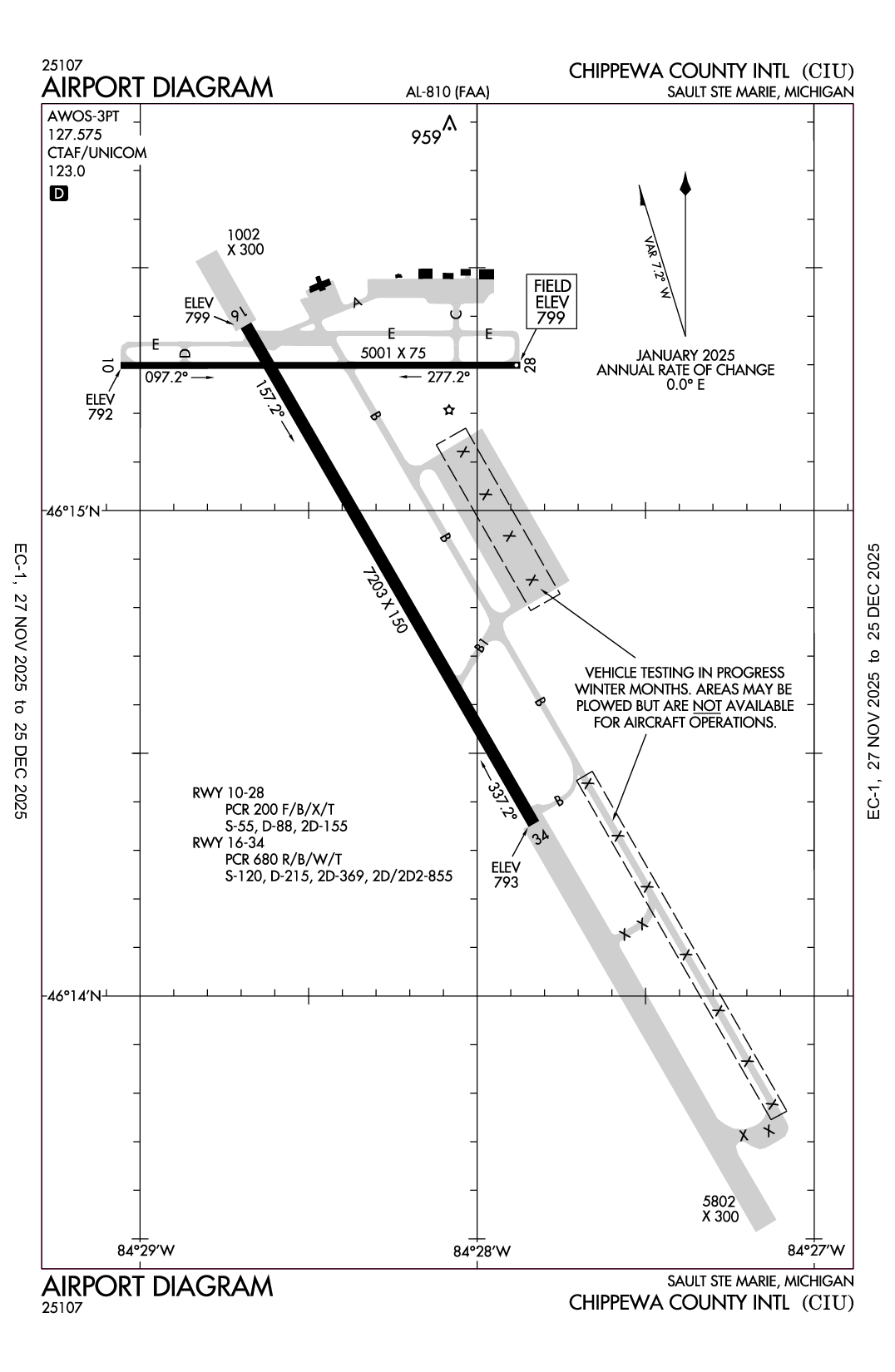

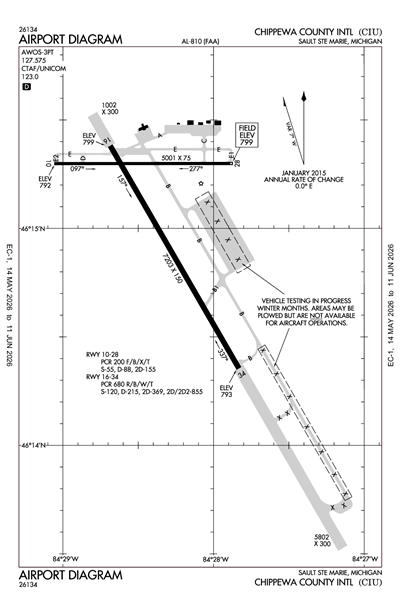

CHIPPEWA COUNTY INTL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KCIU
CHIPPEWA COUNTY INTL
PublicPUB

15 miles S of SAULT STE MARIE, MI
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
46° 15' 03"N 84° 28' 21"W
799' MSL
1599' MSL
07W
JET A, 100LL
GREEN BAY (GRB)
LAKE HURON
MINNEAPOLIS (ZMP)
9/5/24-10/3/24
KCIU VFR
7:56 PM EDT
Overcast 3,700'
10sm
66°F
60°F
29.83"Hg
120° 12kts
AO2 SLPNO T01890156 10233 20189 53009
KCIU 202356Z AUTO 12012KT 10SM OVC037 19/16 A2983 RMK AO2 SLPNO T01890156 10233 20189 53009
Add Your Business

KCIU FBOs

Promote Listing
Chippewa County International Airport
UNICOM: 123.0
Phone: (906) 495-3835
Other: (906) 495-5631
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 8/30
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 6.75 5.30
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3PT

AWOS-3PT
906-495-1156
 127.575

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCIU
Fri, 9/20 7:20 PM EDT
Fri, 9/20 8:00 PM EDT - Sat, 9/21 8:00 PM EDT
VFR
8:00 PM EDT - 2:00 AM EDT
Showers in vicinity
Broken 3,500'
6sm
VRB° 3kts
MVFR
2:00 AM EDT - 9:00 AM EDT
Mist
Scattered 300'
3sm
VRB° 3kts
LIFR
Temporary 4:00 AM EDT - 8:00 AM EDT
Mist
Broken 200'
1sm
Calm
IFR
9:00 AM EDT - 11:00 AM EDT
Broken 500'
6sm
VRB° 3kts
VFR
11:00 AM EDT - 8:00 PM EDT
Few 25,000'
6sm
150° 4kts
KCIU 202320Z 2100/2124 VRB03KT P6SM VCSH BKN035
   FM210600 VRB03KT 3SM BR SCT003
   TEMPO 2108/2112 1SM BR BKN002
   FM211300 VRB03KT P6SM BKN005
   FM211500 15004KT P6SM FEW250
KCIU
No NOTAM Available
No
0600-1800
CHIPPEWA COUNTY ECON DEV CORP
5019 W AIRPORT DR
KINCHELOE, MI 49788-1643
Phone: 906-495-5631
TAMI L BESEAU
5019 W AIRPORT DR
KINCHELOE, MI 49788-1643
Phone: 906-495-5631
GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF
CIU
--
ACTVT MALSR RWY 16; REIL RWY 34, 10, & 28; PAPI RWY 16, 34, 10, & 28; HIRL RWY 16/34; MIRL RWY 10/28 - CTAF. REIL & PAPI RWY 34 OPR CONSLY DEC-MAR; PAPI RWY 10 & 28 OPR CONSLY DRG DALGT HRS.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
0
0
0
0
0
0
None
None
None
None
None

Runway 10/28

5001 ft. x 75 ft.
ASPH
Good
GRVD
MED
15 /F/B/Y/U
100,000lbs
100,000lbs
--
--
  Runway 10 Runway 28
True Heading 90°270°
Traffic Pattern
Markings NPI NPI
Markings Condition FAIR FAIR
Latitude 46° 15' 18"N 46° 15' 18"N
Longitude 84° 29' 03"W 84° 27' 52"W
Elevation 792' 799'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 16/34

7203 ft. x 150 ft.
ASPH CONC
Fair
GRVD
HIGH
31 /R/B/X/U
155,000lbs
330,000lbs
600,000lbs
--
  Runway 16 Runway 34
True Heading 150°330°
Traffic Pattern Right
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 46° 15' 23"N 46° 14' 21"N
Longitude 84° 28' 41"W 84° 27' 50"W
Elevation 798' 793'
Threshold Crossing Height 57 ft. AGL 41 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR
Centerline Lights No No
Runway End Identifier Lights No Yes
A110-1BIRDS ON & INVOF ARPT.
A110-3EXP SNOW REMOVAL ACT DLY DEC-MAR.
A110-5VEHICLE TESTING INPR DRG WINTER MONTHS ON SECTIONS OF CLSD/ABNDD PARL TWY, SE OF APCH END RWY 34. AREA MAY BE PLOWED TO BARE SFC BUT UNAVBL FOR ARR OR DEP.
A110-6FICONS UNMON 2100-0700.
A110-7FOR CD IF UNA TO CTC ON FSS FREQ, CTC MINNEAPOLIS ARTCC AT 651-463-5588.
CHIPPEWA COUNTY INTL (ICAO: KCIU, IATA: CIU) is a public airport located in SAULT STE MARIE, MI.
