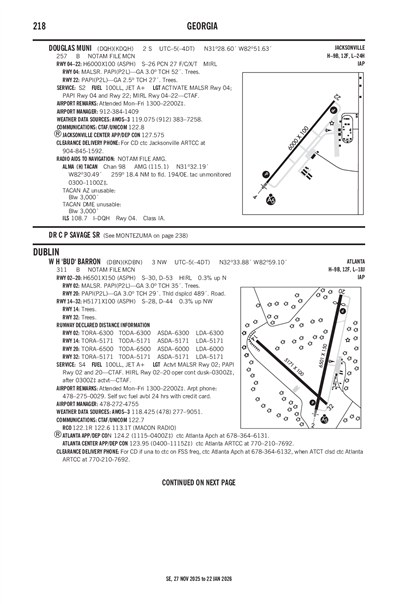

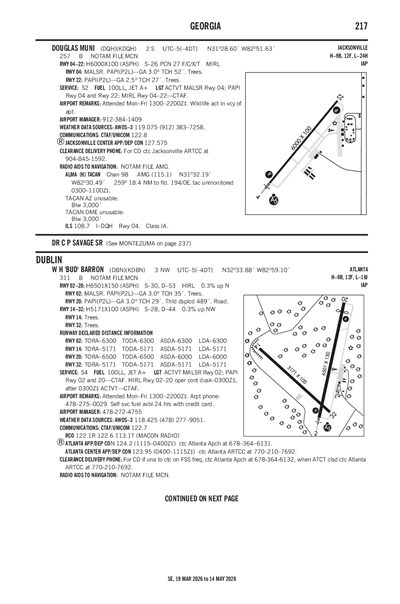

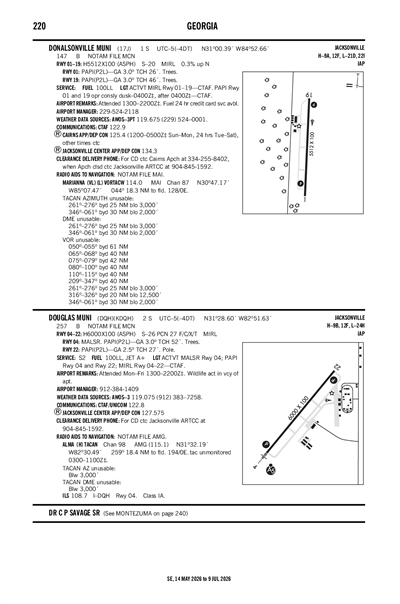

DOUGLAS MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KDQH
DOUGLAS MUNI
PublicPUB

2 miles S of DOUGLAS, GA
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
31° 28' 36"N 82° 51' 38"W
256' MSL
1256' MSL
06W
Jet A+, 100LL
MACON (MCN)
JACKSONVILLE
JACKSONVILLE (ZJX)
5/16/24-6/13/24
KDQH VFR
6:15 AM EDT
Clear
10sm
66°F
64°F
30.05"Hg
Calm
AO2 T01870175
KDQH 291015Z AUTO 00000KT 10SM CLR 19/18 A3005 RMK AO2 T01870175
List Your Business

KDQH FBOs, Flight Schools and Ground Support

Promote Listing
Douglas Municipal Airport
Freq: 122.8
Phone: (912) 384-1409
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/13
 100LL Jet A Jet A+ Mogas UL94
Self Serve 4.99 4.95
Full Serve 5.72 5.45

KDQH Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KDQH Hotels

No hotels are listed for this airport.

KDQH Restaurants

No restaurants are listed for this airport.

KDQH Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3

AWOS-3
912-383-7258
 119.075

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KVAD (34nm)
Wed, 5/29 4:00 AM EDT
Wed, 5/29 4:00 AM EDT - Thu, 5/30 10:00 AM EDT
VFR
4:00 AM EDT - 11:00 AM EDT
Sky Clear
6sm
30.03"Hg
340° 6kts
VFR
Becoming 11:00 AM EDT - 7:00 AM EDT
Scattered 5,000'
6sm
30.03"Hg
310° 9kts
VFR
Becoming 7:00 AM EDT - 10:00 AM EDT
Scattered 10,000'
6sm
30.06"Hg
020° 6kts
TAF KVAD 290800Z 2908/3014 34006KT 9999 SKC QNH3002INS
   BECMG 2915/2916 31009KT 9999 SCT050 QNH3002INS
   BECMG 3011/3012 02006KT 9999 SCT100 QNH3007INS TX33/2921Z TN20/2910Z
KDQH
Domestic
5/29/240846Z !MCN 05/003 DQH OBST TOWER LGT (ASR 1273593) 313645.40N0824411.00W (10.5NM NE DQH) 512.8FT (256.9FT AGL) U/S 2405290846-2406291200
5/28/240030Z !MCN 05/944 DQH OBST TOWER LGT (ASR 1039138) 311720.90N0825034.00W (11.2NM S DQH) 678.8FT (482.0FT AGL) U/S 2405280030-2408250400
5/21/242241Z !MCN 05/744 DQH NAV ILS RWY 04 GP U/S 2405212241-2406212000EST
5/5/240353Z !MCN 05/154 DQH OBST TOWER LGT (ASR 1313831) 313433.50N0825458.40W (6.5NM NNW DQH) 544FT (275FT AGL) U/S 2405050353-2406052300
5/3/240748Z !MCN 05/081 DQH OBST TOWER LGT (ASN 2019-ASO-34847-OE) 313434N0825458W (6.5NM NNW DQH) 544FT (275FT AGL) U/S 2405030748-2406170747
4/17/241255Z !MCN 04/563 DQH NAV OWC NDB U/S 2404171255-PERM
2/22/242022Z !MCN 02/618 DQH OBST TOWER LGT (ASR 1276366) 312909.30N0824127.60W (8.7NM E DQH) 692.9FT (503.0FT AGL) U/S 2402222022-2408222359
8/24/211650Z !MCN 08/669 DQH AD AP WILDLIFE ACT IN VCY 2108241650-PERM
FDC
5/29/241400Z !FDC 4/9858 DQH IAP DOUGLAS MUNI, DOUGLAS, GA.
ILS OR LOC RWY 4, AMDT 2C...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS,
AYS VORTAC OUT OF SERVICE. 2405291400-2406042210EST
No
M-F 0800-1700
CITY OF DOUGLAS
PO BOX 470
DOUGLAS, GA 31534
Phone: 912-389-3401
DANIEL BEAUCHAMP
CITY OF DOUGLAS PO BOX 470
DOUGLAS, GA 31534
Phone: 912-384-1409
MACON FSS (MCN)
Toll Free: 1-800-WX-BRIEF
MCN
--
ACTVT MALSR RWY 04; PAPI RWY 04 & 22; MIRL RWY 04/22 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
51
7
0
3
0
0
Minor
Minor
None
None
Crop Dusting
Air Ambulance
Pilot Instruction

Runway 04/22

6000 ft. x 100 ft.
ASPH
Good
NONE
MED
27 /F/C/X/T
26,000lbs
--
--
--
  Runway 04 Runway 22
True Heading 37°217°
Traffic Pattern Left Left
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 31° 28' 13"N 31° 28' 60"N
Longitude 82° 51' 59"W 82° 51' 17"W
Elevation 250' 256'
Threshold Crossing Height 52 ft. AGL 27 ft. AGL
Visual Glide Path Angle 3° 2.5°
Visual Slope Indicator P2L P2L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights
A110-2FOR CD CTC JACKSONVILLE ARTCC AT 904-845-1592.
DOUGLAS MUNI (ICAO: KDQH, IATA: DQH) is a public airport located in DOUGLAS, GA.
