FAIRFIELD COUNTY - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KFDW
FAIRFIELD COUNTY
PublicPUB

3 miles SW of WINNSBORO, SC
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
34° 18' 57"N 81° 06' 31"W
578' MSL
1400' MSL
07W
JET A, 100LL
ANDERSON (AND)
CHARLOTTE
JACKSONVILLE (ZJX)
5/16/24-6/13/24
KFDW VFR
7:55 AM EDT
Clear
10sm
70°F
61°F
29.87"Hg
Calm
AO1
KFDW 091155Z AUTO 00000KT 10SM CLR 21/16 A2987 RMK AO1
Add Your Business

KFDW FBOs

Promote Listing
S&S Aviation
UNICOM: 123.05
Phone: (803) 635-3086
No Rating Available
0 Reviews (Read | Sign In To Write)
Titan
As of 5/24
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 5.95
Full Serve 5.25
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.05 123.05

AWOS-3

AWOS-3
803-712-2577
 119.075

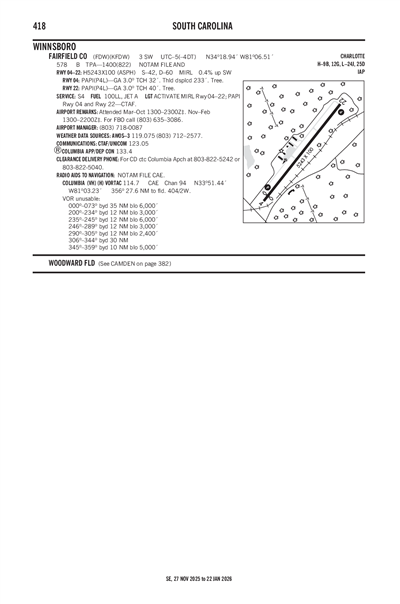

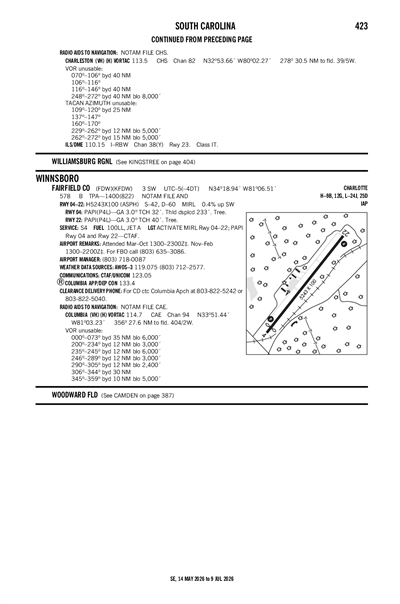

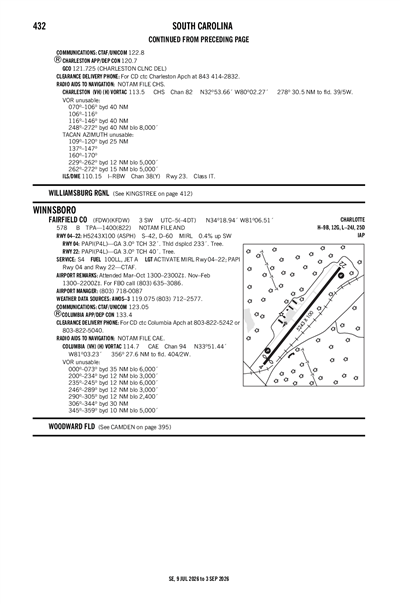

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KCUB (21nm)
Sun, 6/9 7:20 AM EDT
Sun, 6/9 8:00 AM EDT - Mon, 6/10 8:00 AM EDT
VFR
8:00 AM EDT - 12:00 PM EDT
Broken 25,000'
Scattered 8,000'
6sm
Calm
VFR
12:00 PM EDT - 9:00 PM EDT
Broken 25,000'
Scattered 6,000'
6sm
270° 13kts
Gusts 20kts
VFR
9:00 PM EDT - 8:00 AM EDT
Broken 20,000'
Broken 8,000'
6sm
290° 5kts
KCUB 091120Z 0912/1012 00000KT P6SM SCT080 BKN250
   FM091600 27013G20KT P6SM SCT060 BKN250
   FM100100 29005KT P6SM BKN080 BKN200
KFDW
Domestic
6/7/240144Z !AND 06/091 FDW OBST TOWER LGT (ASR 1047599) 341245.50N0812113.10W (13.8NM WSW FDW) 769.0FT (221.1FT AGL) U/S 2406070144-2407220130
6/7/240025Z !AND 06/090 FDW OBST TOWER LGT (ASR 1048362) 341500.20N0805906.90W (7.2NM ESE FDW) 794.9FT (319.9FT AGL) U/S 2406070025-2409040400
6/5/240048Z !AND 06/046 FDW OBST TOWER LGT (ASR 1245445) 341759.10N0811911.80W (10.5NM W FDW) 644.0FT (208.0FT AGL) U/S 2406050048-2407200047
5/25/242103Z !AND 05/384 FDW OBST TOWER LGT (ASR 1049564) 341919.40N0805621.50W (8.4NM E FDW) 794.9FT (202.1FT AGL) U/S 2405252103-2409222103
5/1/240426Z !AND 05/001 FDW OBST TOWER LGT (ASR 1049570) 342814.80N0810427.80W (9.5NM NE FDW) 743.8FT (233.9FT AGL) U/S 2405010426-2406150425
4/29/240000Z !AND 04/395 FDW OBST TOWER LGT (ASR 1255189) 341633.10N0811935.70W (11.1NM WSW FDW) 636.2FT (202.1FT AGL) U/S 2404290000-2406122359
4/16/240010Z !AND 04/231 FDW OBST TOWER LGT (ASR 1043166) 342817.20N0805941.10W (11.0NM NNE FDW) 700.1FT (270.0FT AGL) U/S 2404160010-2407140400
No
MAR-OCT 0800-1800
NOV-FEB 0800-1700
FAIRFIELD COUNTY
PO BOX 216
WINNSBORO, SC 29180
Phone: (803) 635-1058
DENISE BRYAN
1291 RUNWAY RD
WINNSBORO, SC 29180
Phone: (803) 718-0087
ANDERSON FSS (AND)
Toll Free: 1-800-WX-BRIEF
AND
--
ACTVT MIRL RY 04/22 & PAPI RYS 04 & 22 - CTAF.
N/A
Yes - Lighted
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
32
4
0
0
0
0
Major
Major
None
None
Avionics
Pilot Instruction
Aircraft Rental

Runway 04/22

5243 ft. x 100 ft.
ASPH
Excellent
NONE
MED

42,000lbs
60,000lbs
--
--
  Runway 04 Runway 22
True Heading 38°218°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 34° 18' 36"N 34° 19' 17"N
Longitude 81° 06' 50"W 81° 06' 11"W
Elevation 578' 559'
Threshold Crossing Height 32 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-2TPA 1400 MSL.
A110-3FOR CD CTC COLUMBIA APCH AT 803-822-5242 OR 803-822-5040.
A110-4(CONTACT TITLE) FOR FBO CALL (803) 635-3086.
FAIRFIELD COUNTY (ICAO: KFDW, IATA: FDW) is a public airport located in WINNSBORO, SC.
