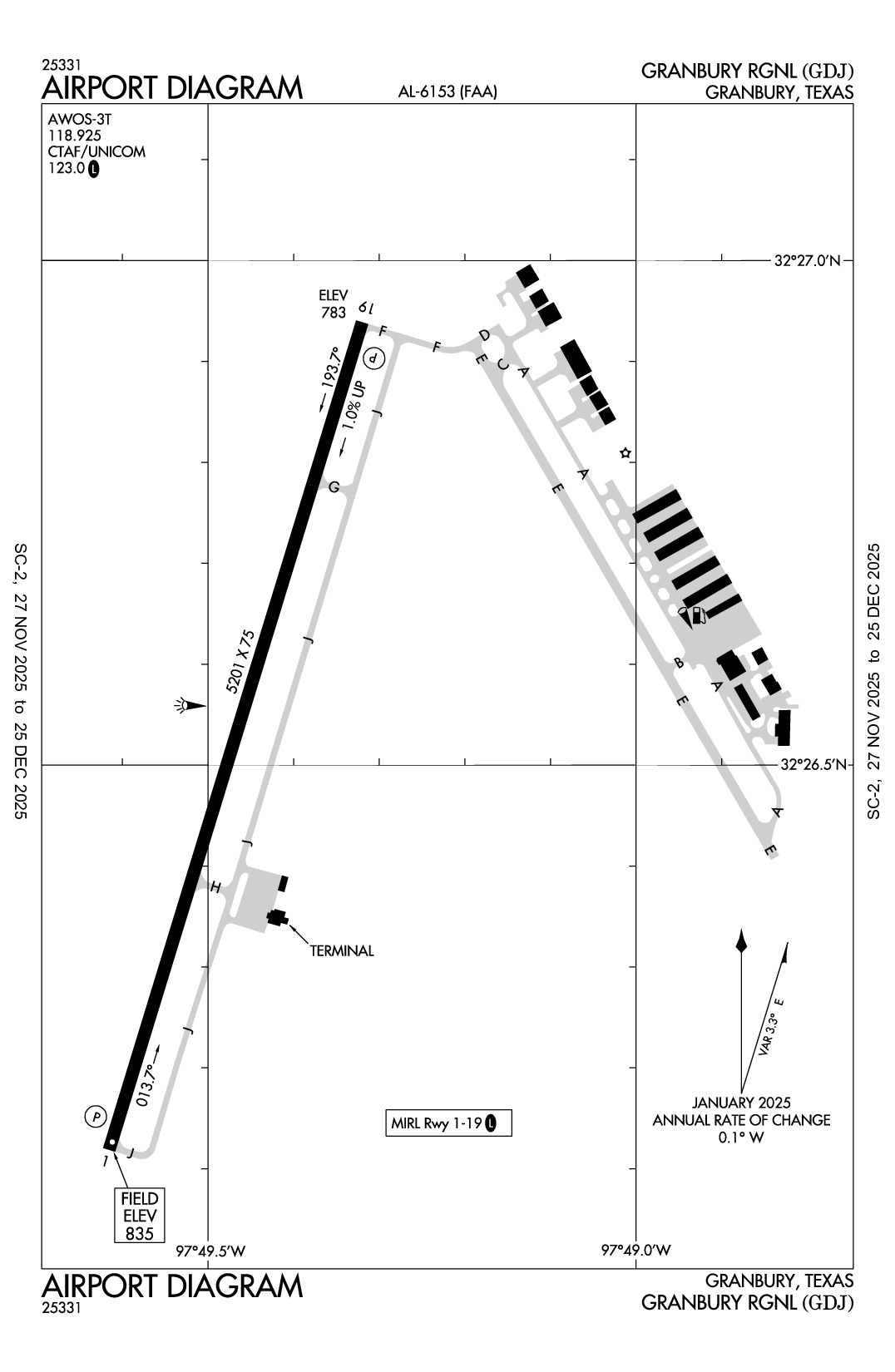

GRANBURY RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KGDJ
GRANBURY RGNL
PublicPUB

2 miles W of GRANBURY, TX
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
32° 26' 35"N 97° 49' 17"W
835' MSL
1835' MSL
03E
Jet A, 100LL
FORT WORTH (FTW)
DALLAS-FT WORTH
FORT WORTH (ZFW)
5/16/24-6/13/24
KGDJ VFR
4:55 PM CDT
Scattered 5,000'
Scattered 4,500'
10sm
94°F
75°F
29.88"Hg
130° 11kts
Gusts 14kts
AO2 T03420240
KGDJ 272155Z AUTO 13011G14KT 10SM SCT045 SCT050 34/24 A2988 RMK AO2 T03420240
List Your Business

KGDJ FBOs, Flight Schools and Ground Support

Promote Listing
Granbury Regional Airport
Freq: 123.0
Phone: (817) 579-8533
No Rating Available
0 Reviews (Read | Sign In To Write)
Avfuel
As of 5/23
 100LL Jet A Jet A+ Mogas UL94
Self Serve 4.97
Full Serve 4.97 4.90

KGDJ Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

KGDJ Hotels

No hotels are listed for this airport.

KGDJ Restaurants

No restaurants are listed for this airport.

KGDJ Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
123.0 123.0

AWOS-3T

AWOS-3T
817-573-7514
 118.925

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KNFW (28nm)
Tue, 5/28 5:54 PM CDT
Tue, 5/28 6:00 PM CDT - Wed, 5/29 6:00 PM CDT
VFR
6:00 PM CDT - 10:00 PM CDT
Broken 25,000'
Few 4,000'
6sm
29.97"Hg
060° 12kts
VFR
10:00 PM CDT - 6:00 AM CDT
Thunderstorm in vicinity
Broken 25,000'
Scattered 4,000'
6sm
30.00"Hg
070° 8kts
LIFR
Temporary 11:00 PM CDT - 3:00 AM CDT
Heavy Thunderstorm and Rain
Overcast 900'
0.99sm
VRB° 25kts
Gusts 40kts
MVFR
6:00 AM CDT - 12:00 PM CDT
Showers in vicinity
Broken 2,000'
6sm
30.03"Hg
VRB° 4kts
VFR
12:00 PM CDT - 6:00 PM CDT
Overcast 12,000'
Broken 4,500'
6sm
29.97"Hg
140° 8kts
TAF KNFW 2823/2923 06012KT 9999 FEW040 BKN250 QNH2997INS
   FM290300 07008KT 9999 VCTS SCT040CB BKN250 QNH2999INS
   TEMPO 2904/2908 VRB25G40KT 1600 +TSRA OVC009CB
   FM291100 VRB04KT 9999 VCSH BKN020 QNH3002INS
   FM291700 14008KT 9999 BKN045 OVC120 QNH2996INS AUTOMATED SENSOR METWATCH 2904 TIL 2911 TX30/2922Z TN19/2912Z FN20048
KGDJ
Domestic
5/28/241621Z !GDJ 05/017 GDJ OBST TOWER LGT (ASN UNKNOWN) 322725N0974806W (1.1NM NE GDJ) 934FT (150FT AGL) U/S 2405281621-2406282359
5/20/241416Z !GDJ 05/013 GDJ OBST TOWER LGT (ASR 1053505) 321757.00N0974832.00W (8.6NM S GDJ) 1141.7FT (246.1FT AGL) U/S 2405201416-2412201416
5/15/241212Z !GDJ 05/010 GDJ TWY E BTN 635FT SOUTH OF TWY C AND 1045FT NORTH OF TWY B CLSD LGTD AND BARRICADED 2405151212-2406152359
5/15/241212Z !GDJ 05/009 GDJ TWY E BTN TWY B AND TWY C, TWY A BTN TWY B AND TWY C WIP ADJ 2405151212-2406152359
5/15/240436Z !GDJ 05/008 GDJ SVC AUTOMATED WX BCST SYSTEM CEILING/VIS/PRESENT WX UNREL
2405150436-2405292359EST
5/2/241907Z !GDJ 05/002 GDJ OBST TOWER LGT (ASR 1200006) 322416.50N0974902.50W (2.3NM S GDJ) 1104.7FT (199.1FT AGL) U/S 2405021907-2406011700EST
4/30/240150Z !GDJ 04/014 GDJ OBST TOWER LGT (ASR 1055346) 321509.80N0974121.80W (13.2NM SSE GDJ) 1197.8FT (478.0FT AGL) U/S 2404300150-2408280150
11/7/221912Z !GDJ 11/008 GDJ RWY 19 RIGHT TFC PATTERN 2211071912-PERM
11/7/221911Z !GDJ 11/007 GDJ RWY 01 LEFT TFC PATTERN 2211071911-PERM
11/3/221430Z !GDJ 11/001 GDJ RWY 01/19 COMMISSIONED 5200FT X 75FT CONC LGTD. DECLARED DIST: RWY 01 TORA 5200FT TODA 5200FT ASDA 5200FT LDA 5200FT. RWY 19 TORA 5200FT TODA 5200FT ASDA 5200FT LDA 5200FT. 2211031430-PERM
FDC
2/9/231700Z !FDC 3/3708 GDJ IAP GRANBURY RGNL, GRANBURY, TX.
RNAV (GPS) RWY 1, ORIG...
RNAV (GPS) RWY 19, ORIG...
VGSI AND RNAV GLIDEPATH NOT COINCIDENT.
2302091700-2502081700EST
No
0700-1900
CITY OF GRANBURY
116 W. BRIDGE ST
GRANBURY, TX 76048
Phone: 817-573-1114
CODY J. MATHIS, C.M.
400 HOWARD CLEMMONS RD
GRANBURY, TX 76048
Phone: 817-579-8533
FORT WORTH FSS (FTW)
Toll Free: 1-800-WX-BRIEF
GDJ
--
MIRL RWY 01/19 PRESET LOW INTST; TO INCR INTST ACTVT - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
No
79
3
0
2
0
0
Major
Major
None
None
Avionics
Pilot Instruction
Aircraft Rental

Runway 01/19

5201 ft. x 75 ft.
CONC
Good
NONE
MED

--
--
--
--
  Runway 01 Runway 19
True Heading 17°197°
Traffic Pattern Right
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 32° 26' 07"N 32° 26' 56"N
Longitude 97° 49' 37"W 97° 49' 19"W
Elevation 835' 783'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P2L P2L
Approach Lights
Centerline Lights
Runway End Identifier Lights
A110-1FOR CD CTC FORT WORTH ARTCC AT 817-858-7584.
GRANBURY RGNL (ICAO: KGDJ, IATA: GDJ) is a public airport located in GRANBURY, TX.
