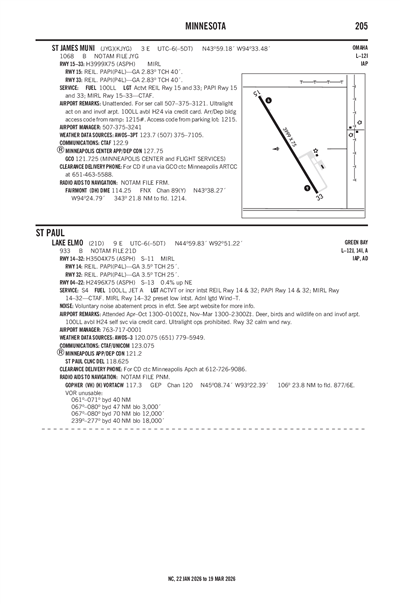

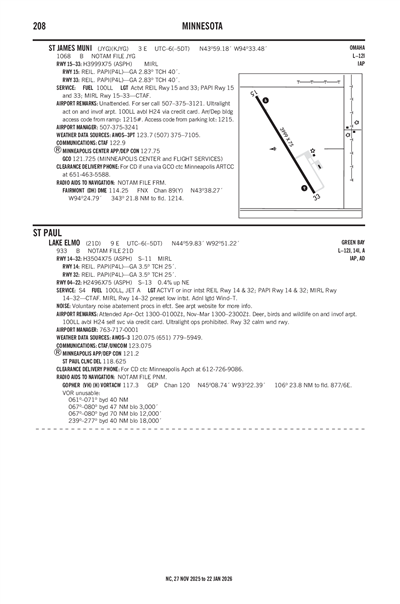

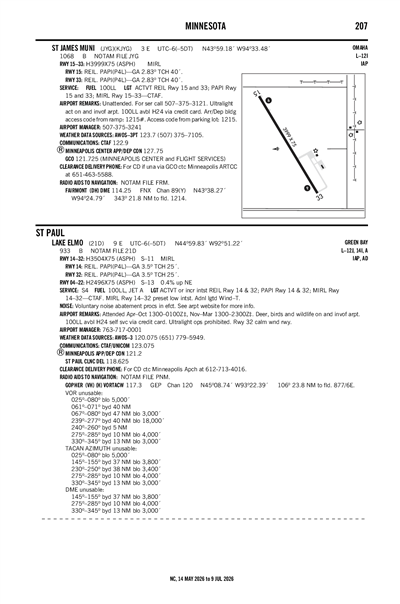

ST JAMES MUNI - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KJYG
ST JAMES MUNI
PublicPUB

3 miles E of ST JAMES, MN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
43° 59' 11"N 94° 33' 29"W
1068' MSL
2068' MSL
01E
100LL
PRINCETON (PNM)
OMAHA
MINNEAPOLIS (ZMP)
5/16/24-6/13/24
KJYG VFR
2:15 PM CDT
Clear
10sm
72°F
48°F
30.03"Hg
Calm
AO2
KJYG 101915Z AUTO 00000KT 10SM CLR 22/09 A3003 RMK AO2
Add Your Business

KJYG FBOs

Promote Listing
St. James Municipal Airport
Phone: (507) 375-3241
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 5/27
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve 6.25
Full Serve
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 122.9

AWOS-3PT

AWOS-3PT
507-375-7105
 123.7

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KMKT (31nm)
Mon, 6/10 12:30 PM CDT
Mon, 6/10 1:00 PM CDT - Tue, 6/11 1:00 PM CDT
VFR
1:00 PM CDT - 1:00 AM CDT
Sky Clear
6sm
VRB° 3kts
VFR
1:00 AM CDT - 4:00 AM CDT
Scattered 25,000'
6sm
150° 8kts
VFR
4:00 AM CDT - 6:00 AM CDT
Overcast 17,000'
6sm
160° 10kts
VFR
6:00 AM CDT - 10:00 AM CDT
Light Showers and Rain and Mist
Overcast 7,000'
Scattered 3,000'
6sm
170° 12kts
MVFR
Temporary 6:00 AM CDT - 10:00 AM CDT
Light Thunderstorm and Rain and Mist
Broken 3,000'
4sm
Calm
VFR
10:00 AM CDT - 12:00 PM CDT
Overcast 4,500'
6sm
190° 13kts
MVFR
12:00 PM CDT - 1:00 PM CDT
Broken 2,500'
6sm
210° 13kts
KMKT 101730Z 1018/1118 VRB03KT P6SM SKC
   FM110600 15008KT P6SM SCT250
   FM110900 16010KT P6SM OVC170
   FM111100 17012KT 6SM -SHRA BR SCT030 OVC070
   TEMPO 1111/1115 4SM -TSRA BR BKN030CB
   FM111500 19013KT P6SM OVC045
   FM111700 21013KT P6SM BKN025
KJYG
Domestic
6/9/240438Z !JYG 06/002 JYG OBST TOWER LGT (ASR 1220367) 440305.40N0941759.90W (11.8NM ENE JYG) 1849.1FT (854.0FT AGL) U/S 2406090438-2406240338
FDC
6/10/241917Z !FDC 4/6255 JYG IAP ST JAMES MUNI, ST JAMES, MN.
RNAV (GPS) RWY 15, AMDT 1B...
RNAV (GPS) RWY 33, AMDT 1B...
VGSI AND RNAV GLIDEPATH NOT COINCIDENT.
2406101917-2606101917EST
No
UNATNDD
FOR SER CALL 507-375-3121.
CITY OF ST JAMES
124 ARMSTRONG BLVD S, PO BOX 70
SAINT JAMES, MN 56081
Phone: 507-375-3241
AMANDA GLASS
124 ARMSTRONG BLVD S, PO BOX 70
SAINT JAMES, MN 56081
Phone: 507-375-3241
PRINCETON FSS (PNM)
Toll Free: 1-800-WX-BRIEF
JYG
--
ACTVT REIL RWY 15 & 33; PAPI RWY 15 & 33; MIRL RWY 15/33 - CTAF.
N/A
Yes - Lighted
No
No
Tie-Down
No
10
0
0
0
0
0
None
None
None
None
None

Runway 15/33

3999 ft. x 75 ft.
ASPH
Good
NONE
MED

--
--
--
--
  Runway 15 Runway 33
True Heading 149°329°
Traffic Pattern
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 43° 59' 28"N 43° 58' 54"N
Longitude 94° 33' 43"W 94° 33' 15"W
Elevation 1,061' 1,065'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 2.83° 2.83°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1ULTRALIGHT ACT ON & INVOF ARPT.
A110-2GCO AVBL ON FREQ 121.725 THRU MINNEAPOLIS ARTCC & FLT SVCS.
A110-5RWY 33 RT OF CTR LINE FRM APP END -120 TO -183 FT CATTAILS IN PRIMARY SURFACE
A110-7ARR/DEP BLDG ACES CODE FM RAMP: 1215#; ACES CODE FM PRKG LOT: 1215.
A110-8FOR CD IF UNA VIA GCO CTC MINNEAPOLIS ARTCC AT 651-463-5588.
ST JAMES MUNI (ICAO: KJYG, IATA: JYG) is a public airport located in ST JAMES, MN.
