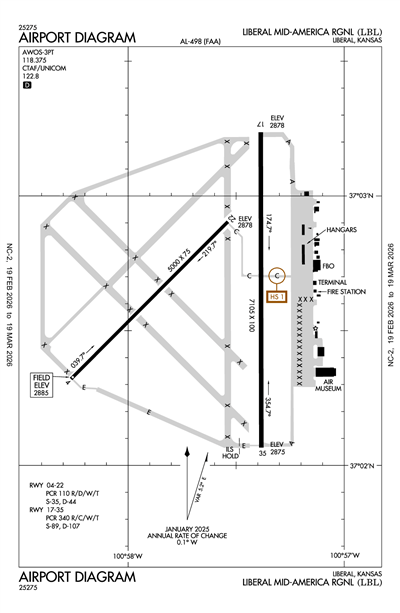

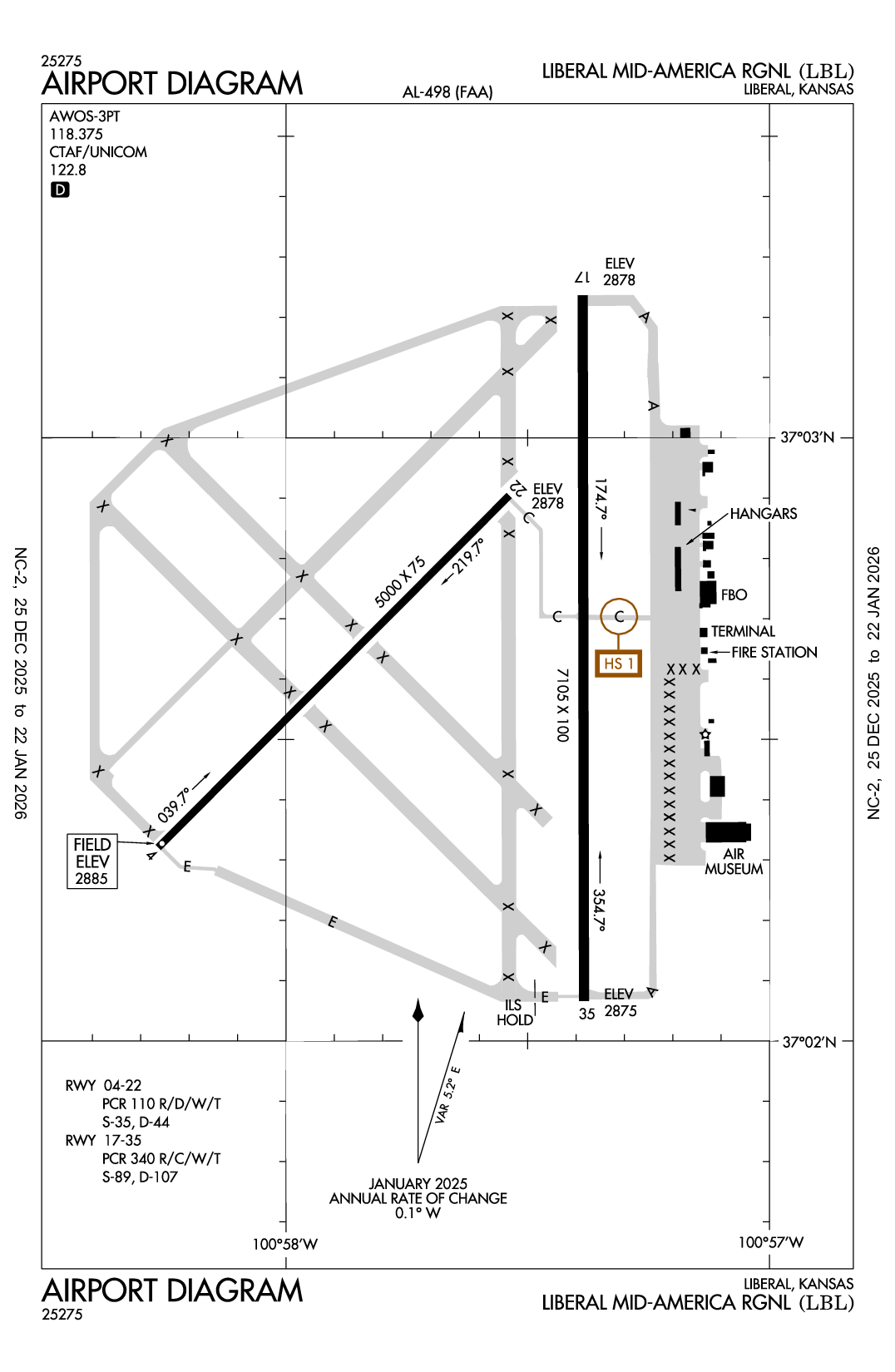

LIBERAL MID-AMERICA RGNL - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KLBL
LIBERAL MID-AMERICA RGNL
PublicPUB

2 miles W of LIBERAL, KS
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
37° 02' 38"N 100° 57' 36"W
2885' MSL
3885' MSL
06E
JET A, 100LL
WICHITA (ICT)
WICHITA
KANSAS CITY (ZKC)
5/16/24-6/13/24
KLBL VFR
5:56 PM CDT
Clear
10sm
79°F
57°F
29.98"Hg
140° 12kts
AO2 SLPNO T02610139 PNO $
KLBL 102256Z AUTO 14012KT 10SM CLR 26/14 A2998 RMK AO2 SLPNO T02610139 PNO $
Add Your Business

KLBL FBOs

Promote Listing
Lyddon Aero Center
UNICOM: 122.8
Phone: (620) 624-1646
No Rating Available
0 Reviews (Read | Sign In To Write)
Phillips 66
As of 5/25
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 5.98 4.70 4.70
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

AWOS-3PT

AWOS-3PT
620-624-1221
 118.375

FAA A/FD Pages

Airport Diagrams

Airport Minimums

Departure Procedures

  • No Documents

Hotspot

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

KGUY (34nm)
Mon, 6/10 6:45 PM CDT
Mon, 6/10 7:00 PM CDT - Tue, 6/11 7:00 PM CDT
VFR
7:00 PM CDT - 12:00 AM CDT
Broken 30,000'
Scattered 3,000'
6sm
180° 9kts
VFR
12:00 AM CDT - 12:00 PM CDT
Broken 30,000'
6sm
VRB° 6kts
VFR
12:00 PM CDT - 7:00 PM CDT
Scattered 5,000'
6sm
160° 9kts
KGUY 102345Z 1100/1124 18009KT P6SM SCT030 BKN300
   FM110500 VRB06KT P6SM BKN300
   FM111700 16009KT P6SM SCT050
KLBL
Domestic
6/8/240510Z !LBL 06/010 LBL OBST WIND TURBINE LGT (ASN 2022-WTE-794-OE) 370415N1011004W (10.1NM W LBL) 3296FT (263FT AGL) U/S 2406080510-2407230512
6/3/241129Z !LBL 06/002 LBL RWY 22 RWY END ID LGT U/S 2406031129-2406212300
6/3/241129Z !LBL 06/001 LBL RWY 22 PAPI U/S 2406031129-2406212300
4/24/240736Z !LBL 04/033 LBL OBST TOWER LGT (ASR 1019010) 371020.00N1004540.00W (12.2NM NE LBL) 2979.3FT (204.4FT AGL) U/S 2404240736-2406302359
4/24/240611Z !LBL 04/032 LBL OBST TOWER LGT (ASR 1200665) 370313.50N1005124.00W (5.0NM E LBL) 3282.2FT (497.0FT AGL) U/S 2404240611-2412312359
FDC
6/10/241212Z !FDC 4/5597 LBL IAP LIBERAL MID-AMERICA RGNL,
LIBERAL, KS.
RNAV (GPS) RWY 35, ORIG-B...
CIRCLING CAT C MDA 3400/HAA 515, VIS 1 1/2.
CHART NOTE: BARO-VNAV AND VDP NA WHEN USING GUY ALTIMETER SETTING.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
GUY ALTIMETER SETTING AND INCREASE LPV DA TO 3187 FEET; INCREASE
LNAV/VNAV DA TO 3237 FEET AND ALL VISIBILITIES 1/8 SM. INCREASE ALL
MDAS 120 FEET AND LNAV VISIBILITY CAT C/D 3/8 SM, AND CIRCLING
VISIBILITY CAT C/D 1/4 SM.
DELETE NOTE: BARO-VNAV NA WHEN USING GUYMON MUNI ALTIMETER SETTING.
DELETE NOTE: VDP NA WHEN USING GUYMON MUNI ALTIMETER SETTING.
DELETE PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK FROM MINIMUM
ALTITUDE AT VEKKU 2.80 NM TO RW35 3820. DELETE ASTERISK FROM VDP AT
0.84 NM TO RW35.
THIS IS RNAV (GPS) RWY 35, ORIG-C. 2406101212-PERM
6/10/241212Z !FDC 4/5596 LBL IAP LIBERAL MID-AMERICA RGNL,
LIBERAL, KS.
RNAV (GPS) RWY 22, AMDT 1B...
CIRCLING CAT C MDA 3400/HAA 515, VIS 1 1/2.
ALTERNATIVE MINIMUMS: STANDARD - CAT D 800-2 1/2, NA WHEN LOCAL
WEATHER NOT AVAILABLE.
CHART NOTE: BARO-VNAV AND VDP NA WHEN USING GUY ALTIMETER SETTING.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
GUY ALTIMETER SETTING AND INCREASE LPV DA TO 3192 FEET; INCREASE
LNAV/VNAV DA TO 3280 FEET AND ALL VISIBILITIES 1/8 SM. INCREASE ALL
MDAS 120 FEET AND LNAV VISIBILITY CAT C/D 3/8 SM, AND CIRCLING
VISIBILITY CAT C/D 1/4 SM.
DELETE NOTE: BARO-VNAV NA WHEN USING GUYMON MUNI ALTIMETER SETTING.
DELETE NOTE: VDP NA WHEN USING GUYMON MUNI ALTIMETER SETTING.
DELETE PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK FROM VDP 1.38 NM
TO RW22.
THIS IS RNAV (GPS) RWY 22, AMDT 1C. 2406101212-PERM
6/10/241212Z !FDC 4/5595 LBL IAP LIBERAL MID-AMERICA RGNL,
LIBERAL, KS.
RNAV (GPS) RWY 17, ORIG-B...
CIRCLING CAT C MDA 3400/HAA 515, VIS 1 1/2.
ALTERNATIVE MINIMUMS: STANDARD - CAT D 800-2 1/2, NA WHEN LOCAL
WEATHER NOT AVAILABLE.
CHART NOTE: BARO-VNAV AND VDP NA WHEN USING GUY ALTIMETER SETTING.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
GUY ALTIMETER SETTING AND INCREASE LPV DA TO 3240 FEET; INCREASE
LNAV/VNAV DA TO 3432 FEET AND ALL VISIBILITIES 1/4 SM. INCREASE ALL
MDAS 120 FEET AND LNAV VISIBILITY CAT C/D 1/4 SM, AND CIRCLING
VISIBILITY CAT C/D 1/4 SM.
DELETE NOTE: BARO-VNAV NA WHEN USING GUYMON MUNI ALTIMETER SETTING.
DELETE NOTE: VDP NA WHEN USING GUYMON MUNI ALTIMETER SETTING.
DELETE PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK FROM MINIMUM
ALTITUDE AT ZAPAP 2.70 NM TO RW17 3780. DELETE ASTERISK FROM VDP AT
1.10 NM TO RW17.
THIS IS RNAV (GPS) RWY 17, ORIG-C. 2406101212-PERM
6/10/241212Z !FDC 4/5594 LBL IAP LIBERAL MID-AMERICA RGNL,
LIBERAL, KS.
RNAV (GPS) RWY 4, ORIG-B...
CIRCLING CAT C MDA 3400/HAA 515, VIS 1 1/2.
ALTERNATIVE MINIMUMS: STANDARD - CAT D 800-2 1/2, NA WHEN LOCAL
WEATHER NOT AVAILABLE.
CHART NOTE: BARO-VNAV AND VDP NA WHEN USING GUY ALTIMETER SETTING.
CHANGE NOTE TO READ: WHEN LOCAL ALTIMETER SETTING NOT RECEIVED, USE
GUY ALTIMETER SETTING AND INCREASE LPV DA TO 3248 FEET; INCREASE
LNAV/VNAV DA TO 3412 FEET AND ALL VISIBILITIES 3/8 SM. INCREASE ALL
MDAS 120 FEET AND LNAV VISIBILITY CAT C/D 3/8 SM, AND CIRCLING
VISIBILITY CAT C/D 1/4 SM.
DELETE NOTE: BARO-VNAV NA WHEN USING GUYMON MUNI ALTIMETER SETTING.
DELETE NOTE: VDP NA WHEN USING GUYMON MUNI ALTIMETER SETTING.
DELETE PROFILE NOTE: *LNAV ONLY. DELETE ASTERISK FROM VDP 1.49 NM
TO RW04.
THIS IS RNAV (GPS) RWY 4, ORIG-C. 2406101212-PERM
No
MON-FRI 0600-2000
SAT-SUN 0700-2000
CITY OF LIBERAL
PO BOX 2199
LIBERAL, KS 67905-2199
Phone: 620-626-2207
MR. BRIAN FORNWALT
PO BOX 2199
LIBERAL, KS 67905-2199
Phone: (620) 626-0188
WICHITA FSS (ICT)
Toll Free: 1-800-WX-BRIEF
LBL
--
ACTVT MIRL RY 04/22 & HIRL RY 17/35; MALSR RY 35; VASI RYS 17 & 35; & PAPI RYS 04 & 22; REIL RYS 04, 17 & 22 - CTAF.
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
29
14
5
0
0
0
Major
Major
None
Low Pressure
Crop Dusting
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales

Runway 04/22

5000 ft. x 75 ft.
CONC
Excellent
NONE
MED
10 /R/D/Y/U
30,000lbs
60,000lbs
--
--
  Runway 04 Runway 22
True Heading 45°225°
Traffic Pattern Left Left
Markings NPI NPI
Markings Condition GOOD GOOD
Latitude 37° 02' 19"N 37° 02' 54"N
Longitude 100° 58' 16"W 100° 57' 32"W
Elevation 2,885' 2,878'
Threshold Crossing Height 40 ft. AGL 40 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes

Runway 17/35

7105 ft. x 100 ft.
CONC
Excellent
GRVD
HIGH
33 /R/D/X/U
80,000lbs
100,000lbs
--
--
  Runway 17 Runway 35
True Heading 180°360°
Traffic Pattern Left Left
Markings NPI PIR
Markings Condition GOOD GOOD
Latitude 37° 03' 14"N 37° 02' 04"N
Longitude 100° 57' 23"W 100° 57' 23"W
Elevation 2,878' 2,875'
Threshold Crossing Height 54 ft. AGL 57 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights MALSR
Centerline Lights
Runway End Identifier Lights Yes
A110-1FOR CD IF UNA TO CTC ON FSS FREQ, CTC KANSAS CITY ARTCC AT 913-254-8508.
LIBERAL MID-AMERICA RGNL (ICAO: KLBL, IATA: LBL) is a public airport located in LIBERAL, KS.
