M GRAHAM CLARK DOWNTOWN - Airport Diagram

KPLK

M GRAHAM CLARK DOWNTOWN

PublicPUB

1 miles S of BRANSON, MO

View on Map

Status

Operational

Coordinates

36° 37' 33"N 93° 13' 44"W

Elevation

940' MSL

Pattern Alt

1940' MSL

Mag Variation

02E

Fuel

JET A (FSII), 100LL

FSS

COLUMBIA (COU)

Sectional

KANSAS CITY

ARTCC

MEMPHIS (ZME)

Data Effective

5/16/24-6/13/24

KBBG (6nm) MVFR

6:45 PM CDT RAW

Overcast 3,200'
Broken 2,500'

Viz

10sm

Temp

70°F

Dew

63°F

Pres

30.01"Hg

Wind

040° 4kts

KBBG 092345Z 04004KT 10SM BKN025 OVC032 21/17 A3001

Add Your Business

KPLK FBOs

Promote Listing

M. Graham Clark Downtown Airport

UNICOM: 122.7

Phone: (417) 332-1848

0 Reviews (Read | Sign In To Write)

Phillips 66

As of 5/15	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve
Full Serve	6.35		5.50

Fuel Notes

Prices include tax

Your Information

Business

UNICOM 122.7 CTAF 122.7

No communication frequencies available for this airport.

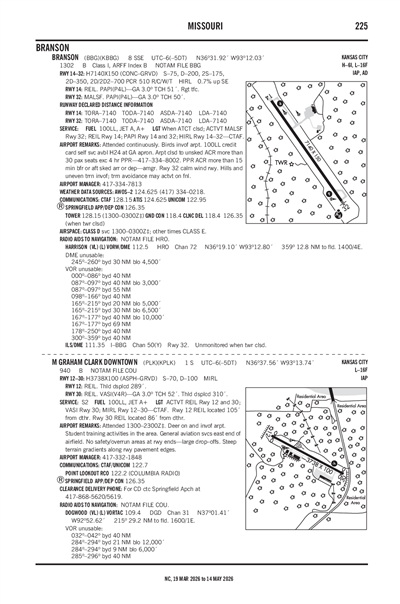

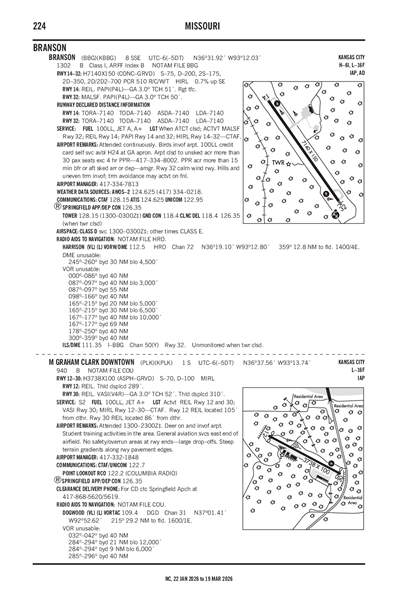

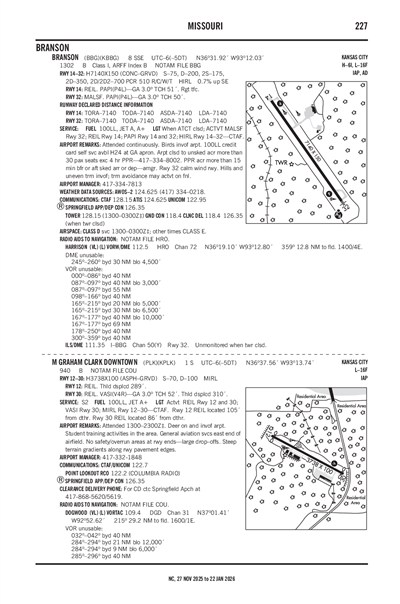

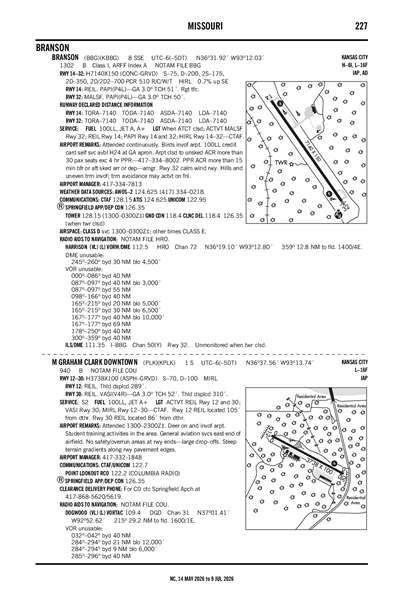

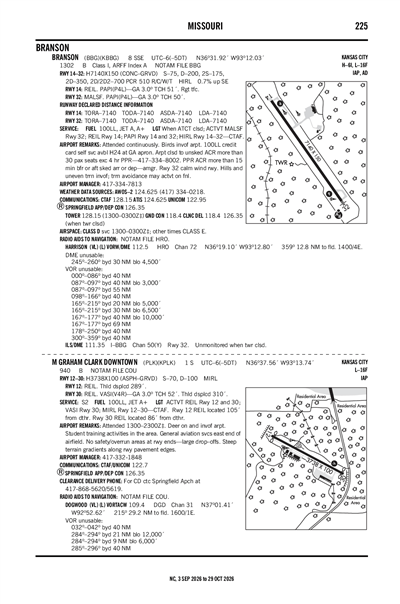

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

TAKEOFF MINIMUMS

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KBBG (6nm)

RAW

Reported

Sun, 6/9 6:20 PM CDT

Valid

Sun, 6/9 7:00 PM CDT - Mon, 6/10 7:00 PM CDT

MVFR

7:00 PM CDT - 8:00 PM CDT

Overcast 25,000'
Broken 2,500'

Viz

6sm

Wind

030° 7kts

VFR

8:00 PM CDT - 12:00 PM CDT

Few 25,000'

Viz

6sm

Wind

VRB° 3kts

VFR

12:00 PM CDT - 7:00 PM CDT

Scattered 25,000'

Viz

6sm

Wind

360° 7kts

KBBG 092320Z 1000/1024 03007KT P6SM BKN025 OVC250
FM100100 VRB03KT P6SM FEW250
FM101700 36007KT P6SM SCT250

KPLK

Domestic
6/12/241200Z	!COU 06/127 PLK RWY 12/30 CLSD 2406121200-2406222359
6/3/240838Z	!COU 06/025 PLK OBST TOWER LGT (ASR 1250080) 363505.70N0931640.50W (3.4NM SW PLK) 1449.8FT (239.8FT AGL) U/S 2406030838-2406180738
2/1/242049Z	!COU 02/008 PLK OBST TOWER LGT (ASR 1203083) 364006.00N0931835.00W (4.6NM WNW PLK) 1614.5FT (224.7FT AGL) U/S 2402012049-2502012048

ATC Tower

Attendance

0700-1700

Owner

TANEY COUNTY MISSOURI
PO BOX 1086
FORSYTH, MO 65653
Phone: 417-546-7200

Manager

MIKE MULNIK
PO BOX 1194
BRANSON, MO 65616
Phone: 417-332-1848

FSS

COLUMBIA FSS (COU)
Toll Free: 1-800-WX-BRIEF

NOTAM

COU

Light Schedule

Lights

ACTVT REIL RWY 12 & 30; VASI RWY 30; MIRL RWY 12/30 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Hanger, Tie-Down

Int'l Operations

NOT a Landing Rights Airport
NOT an Airport of Entry

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

Air Ambulance
Pilot Instruction
Aircraft Rental

Runway 12/30

Dimensions

3738 ft. x 100 ft.

Surface Type

ASPH

Surface Cond

Good

Treatment

GRVD

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

70,000lbs

Double Wheel

100,000lbs

Double Tandem

Dual Dbl Tand

	Runway 12	Runway 30
True Heading	119°	299°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	36° 37' 42"N	36° 37' 24"N
Longitude	93° 14' 04"W	93° 13' 24"W
Elevation	940'	932'
Threshold Crossing Height	--	52 ft. AGL
Visual Glide Path Angle	--	3°
Visual Slope Indicator	--	V4R
Approach Lights
Centerline Lights
Runway End Identifier Lights	Yes	Yes

A110-1	NO SAFETY/OVERRUN AREAS AT RY ENDS-LARGE DROP-OFFS. STEEP TERRAIN GRADIENTS ALONG RY PVMT EDGES.
A110-2	GA SVCS AVBL EAST END OF AIRFIELD.
A110-3	STUDENT TRAINING ACTIVITIES IN THE AREA.
A110-4	DEER ON & INVOF ARPT.
A110-5	BRANSON ARPT ATTRACTIONS NEAR ARPTS.
A110-6	FOR CD CTC SPRINGFIELD APCH AT 417-868-5620/5619.

M GRAHAM CLARK DOWNTOWN (ICAO: KPLK, IATA: PLK) is a public airport located in BRANSON, MO.
