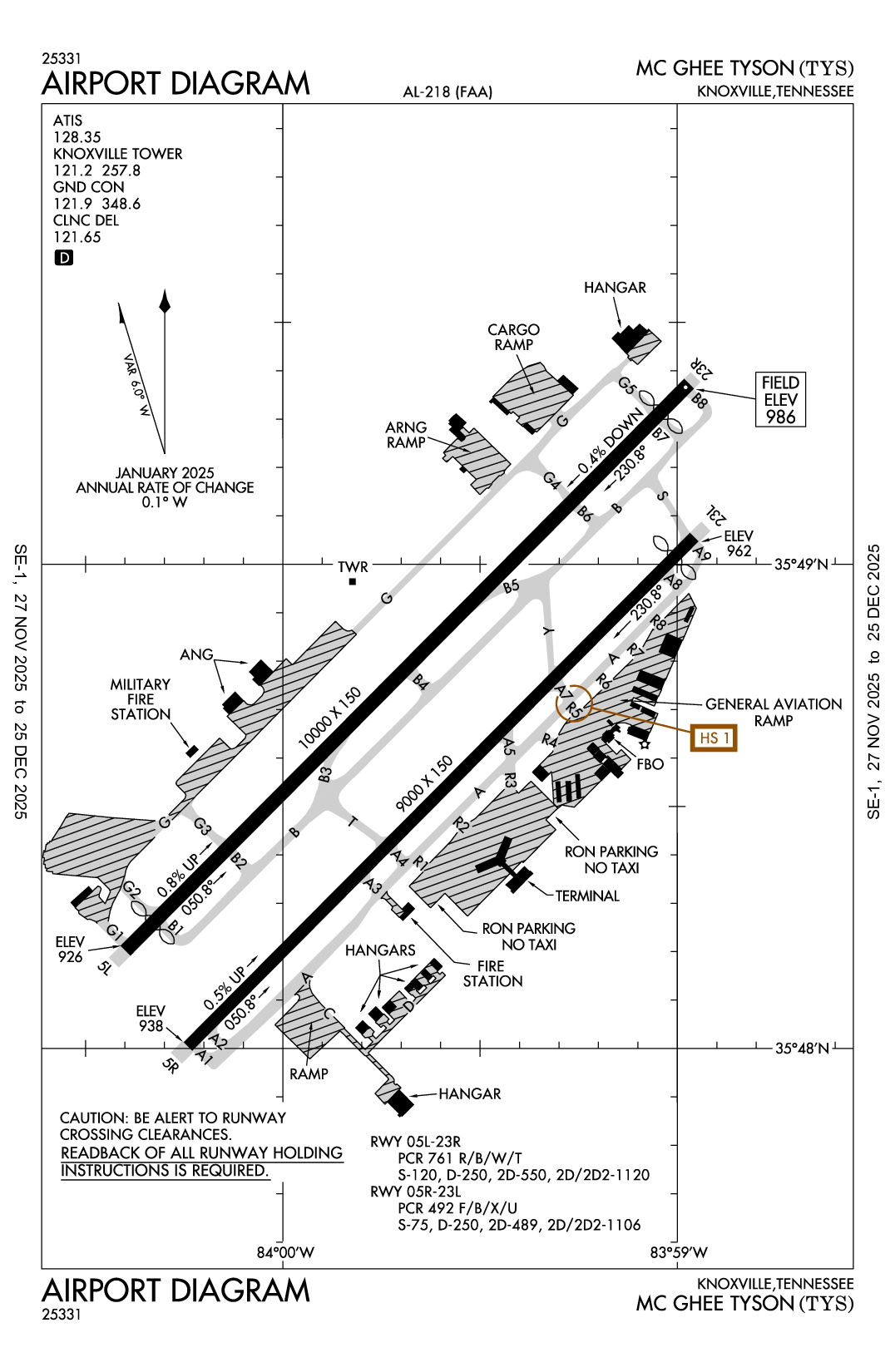

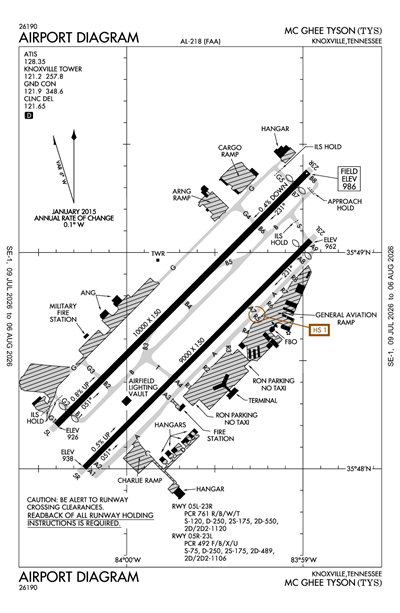

MC GHEE TYSON - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

KTYS
MC GHEE TYSON
PublicPUB

10 miles S of KNOXVILLE, TN
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
35° 48' 40"N 83° 59' 39"W
986' MSL
1986' MSL
06W
JET A, JET A+, CILI, 100LL
NASHVILLE (BNA)
ATLANTA
ATLANTA (ZTL)
5/16/24-6/13/24
KTYS MVFR
12:53 PM EDT
Overcast 9,000'
Broken 3,400'
Broken 1,700'
10sm
73°F
66°F
29.90"Hg
250° 11kts
AO2 SLP114 T02280189
KTYS 091653Z 25011KT 10SM BKN017 BKN034 OVC090 23/19 A2990 RMK AO2 SLP114 T02280189
Add Your Business

KTYS FBOs

Promote Listing
Signature Aviation
UNICOM: 128.95
Phone: (865) 970-9000
No Rating Available
0 Reviews (Read | Sign In To Write)
Other
As of 6/6
 100LL JET A JET A (FSII) MOGAS UL94
Self Serve
Full Serve 7.67 6.80 7.01
Fuel Notes
Prices include tax
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.95 --

ATIS

ATIS
 128.35

Approach/Departure

APCH/P DEP/P
051-229
 118.0
APCH/P DEP/P IC
230-050
 123.9
APCH/S DEP/S
 125.525

Clearance Delivery

CD/P
 121.65

Emergency

EMERG
 121.5

Ground

GND/P
 121.9

Tower

LCL/P
 121.2

Other

ANG OPS
 143.8
ARNG OPS
 49.95
ARNG OPS
 149.8
CLASS C
051-229
 118.0
CLASS C
230-050
 123.9

Terminal Area Forecast

KTYS
Sun, 6/9 1:20 PM EDT
Sun, 6/9 2:00 PM EDT - Mon, 6/10 2:00 PM EDT
MVFR
2:00 PM EDT - 4:00 PM EDT
Broken 1,800'
6sm
250° 12kts
VFR
4:00 PM EDT - 8:00 PM EDT
Broken 3,500'
Scattered 2,000'
6sm
250° 12kts
MVFR
Temporary 4:00 PM EDT - 8:00 PM EDT
Light Thunderstorm and Rain and Mist
Overcast 2,000'
4sm
Calm
VFR
8:00 PM EDT - 10:00 PM EDT
Showers in vicinity
Broken 3,500'
6sm
290° 9kts
VFR
10:00 PM EDT - 12:00 AM EDT
Broken 5,000'
6sm
300° 6kts
VFR
12:00 AM EDT - 2:00 PM EDT
Broken 7,000'
Scattered 3,500'
6sm
360° 7kts
KTYS 091720Z 0918/1018 25012KT P6SM BKN018
   FM092000 25012KT P6SM SCT020 BKN035
   TEMPO 0920/0924 4SM -TSRA BR OVC020CB
   FM100000 29009KT P6SM VCSH BKN035
   FM100200 30006KT P6SM BKN050
   FM100400 36007KT P6SM SCT035 BKN070
KTYS
Domestic
6/14/241300Z !TYS 06/033 TYS NAV ILS RWY 05L LOC/GP U/S 2406141300-2406142359
6/14/241300Z !TYS 06/032 TYS NAV ILS RWY 23R LOC/GP U/S 2406141300-2406142359
6/13/241700Z !TYS 06/025 TYS NAV ILS RWY 05L U/S 2406131700-2406132359
6/13/241700Z !TYS 06/024 TYS NAV ILS RWY 23R U/S 2406131700-2406132359
6/12/241300Z !TYS 06/027 TYS NAV ILS RWY 23R U/S 2406121300-2406121730
6/12/241300Z !TYS 06/026 TYS NAV ILS RWY 05L U/S 2406121300-2406121730
6/11/241300Z !TYS 06/029 TYS NAV ILS RWY 23R U/S 2406111300-2406112100
6/11/241300Z !TYS 06/028 TYS NAV ILS RWY 05L U/S 2406111300-2406112100
6/10/241100Z !TYS 06/023 TYS SVC MBST/WS DETECTION SYSTEM NOT AVBL 2406101100-2406102000
6/7/241811Z !TYS 06/038 TYS TWY B5 SFC PAINTED HLDG PSN SIGNS NOT STD 2406071811-2406121900
6/7/240550Z !TYS 06/030 TYS OBST TOWER LGT (ASR 1051162) 354903.00N0835028.40W (7.5NM E TYS) 1399.0FT (280.8FT AGL) U/S 2406070550-2406220450
5/28/241751Z !TYS 05/150 TYS TWY R1 OUBD DESTINATION SIGN FOR RWY 5R/23L AND RWY 5L/23R MISSING 2405281751-2406302100
5/27/241644Z !TYS 05/142 TYS OBST TOWER LGT (ASR 1043649) 354530.60N0835324.40W (5.9NM ESE TYS) 1244.1FT (289.0FT AGL) U/S 2405271644-2406120400
5/27/241627Z !TYS 05/141 TYS OBST TOWER LGT (ASR 1043654) 354728.60N0840453.90W (4.4NM WSW TYS) 1331.0FT (277.9FT AGL) U/S 2405271627-2406120400
5/23/241305Z !TYS 05/126 TYS AD AP CLSD TO NON SKED ACFT, CHARTER OPS MORE THAN 30 PAX SEATS EXC EMERG ACFT OR PREVIOUSLY ARRANGED PPR 2405231305-2412022100
5/13/241611Z !TYS 05/065 TYS OBST TOWER LGT (ASR 1030740) 355547.40N0840204.90W (7.4NM NNW TYS) 1287.1FT (290.0FT AGL) U/S 2405131611-2408120400
5/10/241135Z !TYS 05/053 TYS TWY A CL MARKINGS BTN TWY A4 AND TWY R2 NOT STD 2405101135-2407312100
5/3/241401Z !TYS 05/010 TYS RWY 05L TDZ CL MARKING OBSC 2405031401-2407122100
5/3/241400Z !TYS 05/011 TYS RWY 23R TDZ CL MARKING OBSC 2405031400-2407122100
4/24/241734Z !TYS 04/112 TYS OBST TOWER LGT (ASR 1034997) 354846.00N0841538.70W (13.0NM W TYS) 1235.9FT (235.9FT AGL) U/S 2404241734-2408221734
4/18/241856Z !TYS 04/090 TYS TWY A4 SFC PAINTED HLDG PSN SIGNS NOT STD 2404181856-2406242100
4/16/241458Z !TYS 04/073 TYS RWY 05L LEAD OFF CL MARKING FOR TWY G4 AND TWY B6 OBSC 2404161458-2407122100
4/16/241457Z !TYS 04/072 TYS RWY 05L LEAD OFF CL MARKING FOR TWY B2 AND TWY G3 OBSC 2404161457-2407122100EST
4/3/241050Z !TYS 04/015 TYS OBST TOWER LGT (ASR 1232028) 355012.90N0842006.90W (16.6NM W TYS) 1509.2FT (290.0FT AGL) U/S 2404031050-2407020400
4/3/240510Z !TYS 04/013 TYS OBST TOWER LGT (ASR 1055556) 355739.40N0841718.30W (16.8NM WNW TYS) 1411.1FT (291.0FT AGL) U/S 2404030510-2407020400
3/27/241908Z !TYS 03/093 TYS RWY 05L/23R EDGE MARKINGS NOT STD 2403271908-2406192100
FDC
6/29/230201Z !FDC 3/8516 TYS IAP MC GHEE TYSON, KNOXVILLE, TN.
ILS RWY 23R (SA CAT I), AMDT 14B ...
ILS RWY 23R (CAT II), AMDT 14B ...
PROCEDURE NA EXC FOR RDO ALTIMETER TOLERANT ACFT AND ACFT USING APPROVED ALTERNATIVE METHODS OF COMPLIANCE DUE TO 5G C-BAND INTERFERENCE PLUS SEE AIRWORTHINESS DIRECTIVE 2023-10-02 AND 5G C-BAND DOMESTIC NOTICES. 2306290201-2506290155EST
7/22/221307Z !FDC 2/7105 TYS ODP MC GHEE TYSON, KNOXVILLE, TN.
TAKEOFF MINIMUMS AND (OBSTACLE) DEPARTURE PROCEDURES AMDT 9...
TAKE-OFF MINIMUMS: RWY 05L, 300-1 3/4 OR STANDARD WITH MINIMUM CLIMB OF 237 FEET PER NM TO 1400.
ALL OTHER DATA REMAINS AS PUBLISHED. 2207221307-2407221307EST
Yes
ALL
METRO KNOXVILLE ARPT AUTH
MC GHEE TYSON AIRPORT, 2055 ALCOA HWY
ALCOA, TN 37701
Phone: 865-342-3000
PATRICK WILSON
P.O. BOX 15600
KNOXVILLE, TN 37901
Phone: 865-342-3088
NASHVILLE FSS (BNA)
Toll Free: 1-800-WX-BRIEF
TYS
Sunset to Sunrise
--
N/A
Yes - Lighted
Yes
No
Hanger, Tie-Down
Landing Rights Airport
NOT an Airport of Entry
84
26
50
4
22
0
Major
Major
None
High Pressure
Air Freight
Avionics
Cargo Handling
Charter Service
Pilot Instruction
Aircraft Rental
Aircraft Sales
Annual Surveying

Runway 05L/23R

10000 ft. x 150 ft.
CONC
Good
GRVD
HIGH
105/R/B/W/T
120,000lbs
250,000lbs
550,000lbs
1,120,000lbs
  Runway 05L Runway 23R
True Heading 45°225°
Traffic Pattern Left Right
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 48' 12"N 35° 49' 22"N
Longitude 84° 00' 24"W 83° 58' 58"W
Elevation 926' 986'
Threshold Crossing Height 55 ft. AGL 56 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR ALSF2
Centerline Lights Yes Yes
Runway End Identifier Lights No

Runway 05R/23L

9000 ft. x 150 ft.
ASPH
Poor
GRVD
HIGH
70 /F/B/X/T
75,000lbs
250,000lbs
489,000lbs
1,106,000lbs
  Runway 05R Runway 23L
True Heading 45°225°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 35° 48' 00"N 35° 49' 03"N
Longitude 84° 00' 14"W 83° 58' 57"W
Elevation 938' 962'
Threshold Crossing Height 50 ft. AGL 50 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights
Centerline Lights Yes Yes
Runway End Identifier Lights Yes Yes
A110-10WIDE BODY USE CTN TURNING ONTO TWY A FM RAMP 4, 5 & 6.
A110-13CTN: PTN OF TWY A NEAR RWY 05R APCH END NOT VSB FM TWR.
A110-15ANG OPS CTC SODA CTL 303.025.
A110-16ANG: COMD POST H24 - D266-4371/ C865-336-4371. AMGR DOES NOT ISSUE OR STORE COMSEC FOR TSNT. TMPRY STOR OF CLASSIFIED MATERIALS UP TO TOP SECRET AT COMD POST.
A110-17ANG: PPR 24 HR PPR; LTD TO OFFL BUS ONLY - AMGMT D266-4404/4419/ C865-336-4404/4419.
A110-18CTN: HOLD SHORT LINE FOR RWY 23L SLIGHTLY N OF TWY A-8.
A110-2ANG BASE OPS 0730-1700 MON-FRI; PPR - D266-4601/4605.
A110-20ANG: ARNG RAMP NOT SUITABLE FOR AMC ACFT EXC C-21.
A110-21CSTMS/AG/IMG: MIL CUSTOMS 72 HR PPR.
A110-23RSCD NOT MNTD 1630-0800 DLY, WKEND & HOL.
A110-24RWY 5L/23R & 5R/23L WT BRG CPTY FOR 2S LNDG GEAR IS 175.
A110-4BIRDS ON & INVOF OF ARPT; INCRD OCT-APR.
A110-6CIVIL PPR TO USE TWYS G1, G2, G3 & G SOUTH OF TWY G4 - ANG 865-336-4371.
A110-7RWY 23L & 23R DEP MNTN RWY HDG UNTIL PASSING RESIDENTIAL AREA S OF EXTDD CNTRLN UNLESS INSTRD BY ATC.
MC GHEE TYSON (ICAO: KTYS, IATA: TYS) is a public airport located in KNOXVILLE, TN.
