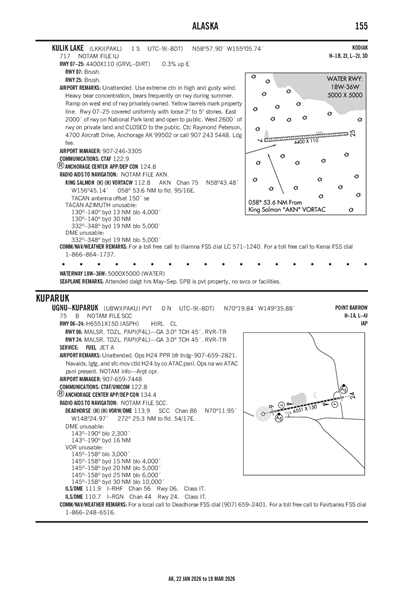

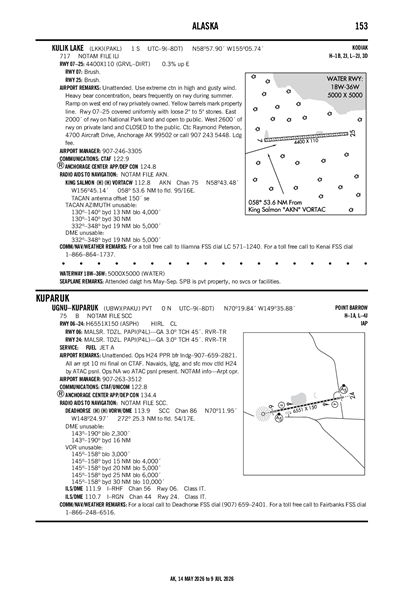

UGNU-KUPARUK - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAKU
UGNU-KUPARUK
PrivatePVT

0 miles N of KUPARUK, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
70° 19' 50"N 149° 35' 53"W
75' MSL
1075' MSL
16E
Jet A
DEADHORSE (SCC)
POINT BARROW
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAKU MVFR
3:45 AM AKDT
Mist
Few 200'
3sm
25°F
25°F
30.07"Hg
050° 3kts
PAKU 291145Z 05003KT 3SM R06/P6000FT BR FEW002 M04/M04 A3007
List Your Business

PAKU FBOs, Flight Schools and Ground Support

No FBOs, flight schools or aircraft ground support businesses are listed for this airport.

PAKU Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAKU Hotels

No hotels are listed for this airport.

PAKU Restaurants

No restaurants are listed for this airport.

PAKU Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
122.8 122.8

No communication frequencies available for this airport.

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

  • No Documents

Departure Procedures

  • No Documents

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

  • No Documents

Terminal Area Forecast

PASC (24nm)
Wed, 5/29 3:29 AM AKDT
Wed, 5/29 4:00 AM AKDT - Thu, 5/30 4:00 AM AKDT
VFR
4:00 AM AKDT - 2:00 PM AKDT
Shallow Fog
Scattered 300'
6sm
VRB° 5kts
LIFR
Temporary 5:00 AM AKDT - 9:00 AM AKDT
Patches Fog
Broken 300'
0.5sm
Calm
IFR
2:00 PM AKDT - 4:00 AM AKDT
Broken 10,000'
Broken 700'
6sm
330° 5kts
PASC 291129Z 2912/3012 VRB05KT 6SM MIFG SCT003
   TEMPO 2913/2917 1/2SM BCFG BKN003
   FM292200 33005KT P6SM BKN007 BKN100
PAKU
No NOTAM Available
No
Unknown
CONOCOPHILLIPS ALASKA INC
700 G ST.
ANCHORAGE, AK 99501-3448
Phone: (907) 276-1215
SUPERVISOR OPERATIONS SUPPPORT
CONOCO PHILLIPS ALASKA INC., PO BOX 100360
ANCHORAGE, AK 99501-0360
Phone: 907-659-7448
DEADHORSE FSS (SCC)
Toll Free: LC659-2401
SCC
--
--
N/A
Yes - Lighted
Yes
No
None
No
0
0
0
0
0
0
None
None
None
None
None

Runway 06/24

6551 ft. x 150 ft.
ASPH
Good
NONE
HIGH

--
--
--
--
  Runway 06 Runway 24
True Heading 78°258°
Traffic Pattern
Markings PIR PIR
Markings Condition FAIR FAIR
Latitude 70° 19' 44"N 70° 19' 57"N
Longitude 149° 37' 27"W 149° 34' 19"W
Elevation 67' 75'
Threshold Crossing Height 45 ft. AGL 45 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator P4L P4L
Approach Lights MALSR MALSR
Centerline Lights Yes Yes
Runway End Identifier Lights No No
A110-1ALL AIRPORT NAVAIDS LIGHTING AND SURFACE MOVEMENT ARE CONTROLLED BY COMPANY SECURITY PERSONNEL WHO OCCUPY THE UBE AIR TRAFFIC ADVISORY CENTER (ATAC) FACILITY 24 HRS A DAY, 7 DAYS A WEEK. NO AIRCRAFT ARE ALLOWED TO LAND WITHOUT UBW ATAC PERSONNEL PRESENT.
A110-3PPR 24 HRS BEFORE LANDING CALL KUPARUK (UBW) SECURITY 907-659-2821.
A110-4AIRORT NOTAM INFORMATION IS NOT AVAILABLE FROM THE FAA AND MUST BE OBTAINED FROM THE AIRPORT OPERATOR.
A110-5AIRPORT UNATTENDED.
A110-6(CONTACT TITLE) ALTERNATE CONTACT: 907-276-1215.
UGNU-KUPARUK (ICAO: PAKU, IATA: UBW) is a private airport located in KUPARUK, AK.
