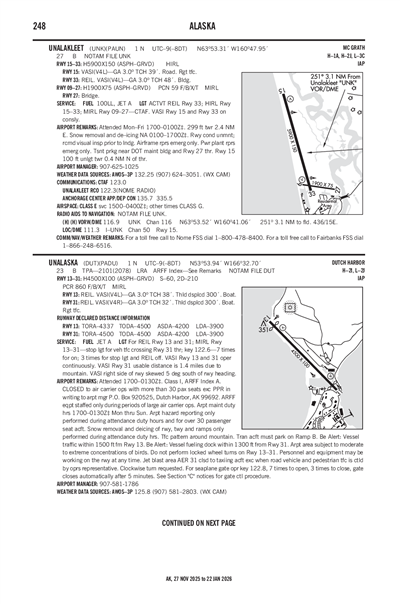

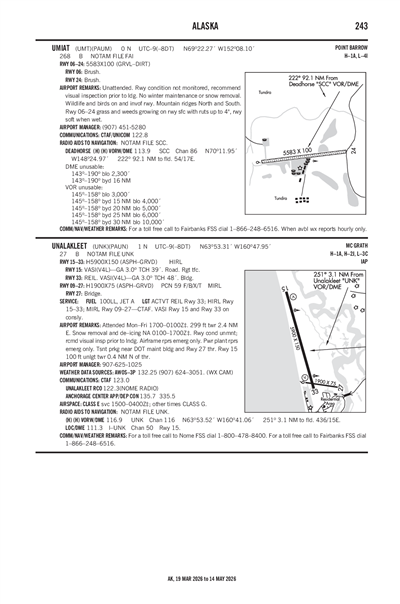

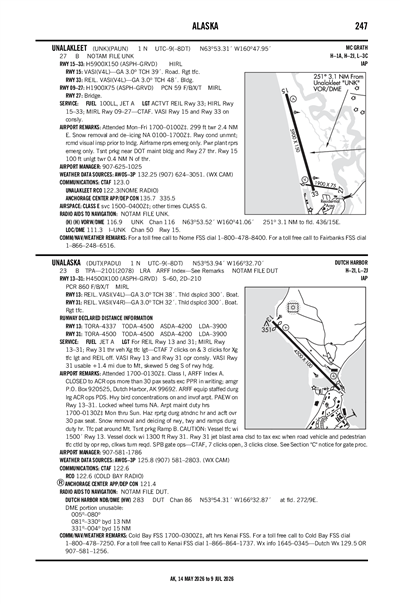

UNALAKLEET - Airport Diagram
LiveATC.net: Live Air Traffic - From Their Headsets to You

PAUN
UNALAKLEET
PublicPUB

1 miles N of UNALAKLEET, AK
View on Map
LiveATC.net: Live Air Traffic - From Their Headsets to You
Operational
63° 53' 19"N 160° 47' 57"W
27' MSL
1027' MSL
11E
Jet A, 100LL
NOME (OME)
MC GRATH
ANCHORAGE (ZAN)
5/16/24-6/13/24
PAUN VFR
1:56 AM AKDT
Overcast 10,000'
10sm
44°F
40°F
29.79"Hg
150° 6kts
AO2 SLP091 T00670044 PNO $
PAUN 290956Z AUTO 15006KT 10SM OVC100 07/04 A2979 RMK AO2 SLP091 T00670044 PNO $
List Your Business

PAUN FBOs, Flight Schools and Ground Support

Promote Listing
West Coast Aviation Services
Freq: 123.0
Phone: (907) 624-3461
No Rating Available
0 Reviews (Read | Sign In To Write)
Independent
As of 5/4
 100LL Jet A Jet A+ Mogas UL94
Self Serve 10.24 8.66
Full Serve

PAUN Ground Transportation (Taxi, Limo, Car Service)

No ground transportation services are listed for this airport.

PAUN Hotels

No hotels are listed for this airport.

PAUN Restaurants

No restaurants are listed for this airport.

PAUN Other Airport-Related Businesses

No other airport-related businesses are listed for this airport.
X

Send Message to Airport Company
Enter your information and message below.

Your Information

Processing
-- 123.0

AWOS-3P

AWOS-3P
907-624-3051
 132.25

FAA A/FD Pages

Airport Diagrams

  • No Documents

Airport Minimums

Departure Procedures

Hotspot

  • No Documents

Standard Term. Arrival

  • No Documents

Instrument Approach

Terminal Area Forecast

PAUN
Tue, 5/28 9:25 PM AKDT
Tue, 5/28 10:00 PM AKDT - Wed, 5/29 10:00 PM AKDT
VFR
10:00 PM AKDT - 12:00 AM AKDT
Showers in vicinity
Broken 10,000'
Scattered 6,000'
6sm
210° 14kts
VFR
12:00 AM AKDT - 10:00 PM AKDT
Sky Clear
6sm
080° 11kts
PAUN 290525Z 2906/3006 21014KT P6SM VCSH SCT060 BKN100
   FM290800 08011KT P6SM SKC
PAUN
Domestic
5/28/240648Z !UNK 05/016 UNK NAV LOC RWY 15 LOC NOT MNT 2405280648-2412221500EST
5/25/241439Z !UNK 05/015 UNK NAV LOC RWY 15 LOC/DME U/S 2405251439-2406091500EST
5/2/240422Z !UNK 05/002 UNK NAV LOC RWY 15 DME NOT MNT 2405020422-2406281500EST
3/29/242022Z !UNK 03/078 UNK RWY 15 RWY END ID LGT U/S 2403292022-PERM
FDC
5/23/241521Z !FDC 4/8719 UNK ODP UNALAKLEET, UNALAKLEET, AK.
UNALAKLEET ONE DEPARTURE ...
DEPARTURE PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
UNK VOR OUT OF SERVICE.
2405231521-2406231521EST
5/23/241521Z !FDC 4/8718 UNK IAP UNALAKLEET, UNALAKLEET, AK.
LOC RWY 15, AMDT 6...
PROCEDURE NA EXCEPT FOR ACFT EQUIPPED WITH SUITABLE RNAV SYSTEM WITH GPS.
UNK VOR OUT OF SERVICE.
2405231521-2406231521EST
No
MON-FRI 0800-1600
ALASKA DOT&PF NORTHERN REGION
NORTHERN REGION, 2301 PEGER RD
FAIRBANKS, AK 99701
Phone: 907-451-2200
JOHN WILSON
PO BOX 192
UNALAKLEET, AK 99684
Phone: 907-625-1025
NOME FSS (OME)
Toll Free: 1-800-478-8400
UNK
--
ACTVT REIL RWY 15 & 33; HIRL RWY 15/33; MIRL RWY 09/27 - CTAF. VASI RWY 15 & 33 ON CONSLY.
N/A
Yes
Yes
No
Tie-Down
NOT a Landing Rights Airport
NOT an Airport of Entry
12
2
0
0
0
0
None
None
None
None
Cargo Handling

Runway 09/27

1900 ft. x 75 ft.
ASPH
Good
GRVD
MED
59 /F/B/X/T
--
--
--
--
  Runway 09 Runway 27
True Heading 98°278°
Traffic Pattern Left Left
Markings BSC BSC
Markings Condition GOOD GOOD
Latitude 63° 53' 00"N 63° 52' 58"N
Longitude 160° 47' 56"W 160° 47' 14"W
Elevation 24' 19'
Threshold Crossing Height -- --
Visual Glide Path Angle -- --
Visual Slope Indicator -- --
Approach Lights
Centerline Lights
Runway End Identifier Lights

Runway 15/33

5900 ft. x 150 ft.
ASPH
Good
GRVD
HIGH

--
--
--
--
  Runway 15 Runway 33
True Heading 164°344°
Traffic Pattern Right Left
Markings PIR PIR
Markings Condition GOOD GOOD
Latitude 63° 53' 53"N 63° 52' 57"N
Longitude 160° 48' 22"W 160° 47' 46"W
Elevation 26' 25'
Threshold Crossing Height 39 ft. AGL 48 ft. AGL
Visual Glide Path Angle 3° 3°
Visual Slope Indicator V4L V4L
Approach Lights
Centerline Lights
Runway End Identifier Lights Yes Yes
A110-1299 FT TWR 2.4 NM E.
A110-2SNOW REMOVAL & DEICING NA 1600-0800.
A110-6RWY COND UNMNT; RCMD VISUAL INSP PRIOR TO LNDG.
A110-9WX CAMERA AVBL ON INTERNET AT HTTPS://WEATHERCAMS.FAA.GOV.
UNALAKLEET (ICAO: PAUN, IATA: UNK) is a public airport located in UNALAKLEET, AK.
