CHETEK MUNI/SOUTHWORTH - Airport Diagram

Y23

CHETEK MUNI/SOUTHWORTH

PublicPUB

1 miles SE of CHETEK, WI

View on Map

Status

Operational

Coordinates

45° 18' 23"N 91° 38' 13"W

Elevation

1056' MSL

Pattern Alt

2056' MSL

Mag Variation

00E

Fuel

100LL

FSS

GREEN BAY (GRB)

Sectional

GREEN BAY

ARTCC

MINNEAPOLIS (ZMP)

Data Effective

7/11/24-8/8/24

KY23 MVFR

7:15 AM CDT RAW

Overcast 1,300'

Viz

10sm

Temp

71°F

Dew

68°F

Pres

30.03"Hg

Wind

150° 5kts

RMK

AO2 T02150199

KY23 271215Z AUTO 15005KT 10SM OVC013 22/20 A3003 RMK AO2 T02150199

Add Your Business

Y23 FBOs

Promote Listing

Chetek Southworth Municipal Airport

UNICOM: 122.9

Phone: (715) 764-0554

Other: (715) 924-4838

0 Reviews (Read | Sign In To Write)

As of 7/24	100LL	JET A	JET A (FSII)	MOGAS	UL94
Self Serve	5.93
Full Serve

Fuel Notes

Prices include tax

Your Information

Business

UNICOM -- CTAF 122.9

AWOS-3P

715-924-1836

119.05

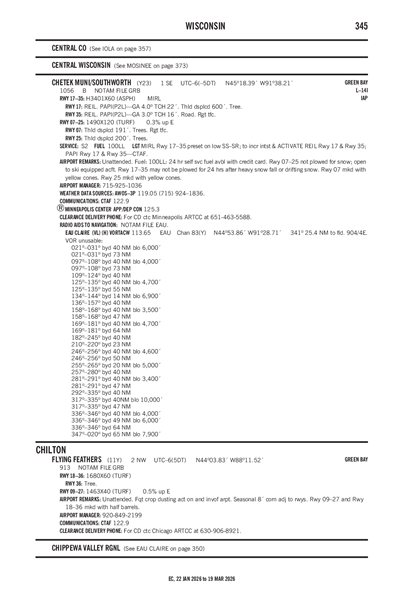

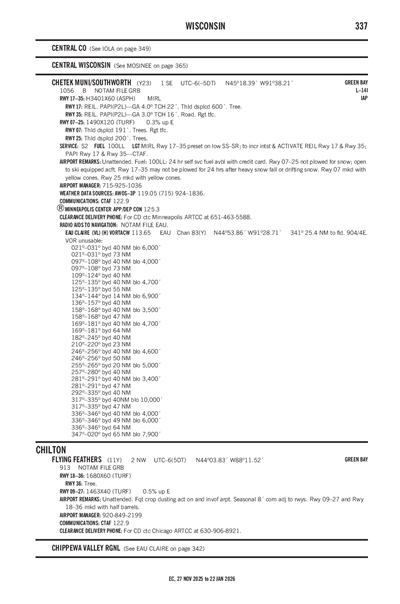

FAA A/FD Pages

FAA A/FD Page

Airport Diagrams

No Documents

Airport Minimums

Departure Procedures

No Documents

Hotspot

No Documents

Standard Term. Arrival

No Documents

Instrument Approach

Terminal Area Forecast

KEAU (27nm)

RAW

Reported

Sat, 7/27 6:27 AM CDT

Valid

Sat, 7/27 7:00 AM CDT - Sun, 7/28 7:00 AM CDT

MVFR

7:00 AM CDT - 12:00 PM CDT

Overcast 1,700'

Viz

6sm

Wind

170° 7kts

VFR

12:00 PM CDT - 8:00 PM CDT

Scattered 3,000'

Viz

6sm

Wind

190° 12kts

Gusts 21kts

VFR

8:00 PM CDT - 7:00 AM CDT

Scattered 10,000'

Viz

6sm

Wind

170° 7kts

KEAU 271127Z 2712/2812 17007KT P6SM OVC017
FM271700 19012G21KT P6SM SCT030
FM280100 17007KT P6SM SCT100

Y23

Domestic
6/30/242326Z	!GRB 06/534 Y23 TWY ALL EAST SIDE SFC MARKING NOT STD 2406302326-2407312359
6/30/242325Z	!GRB 06/533 Y23 RWY 17/35 MARKING NOT STD 2406302325-2407312359
5/29/241947Z	!GRB 05/495 Y23 RWY 17 PAPI U/S 2405291947-2412022111EST

ATC Tower

Attendance

UNATNDD

Owner

CITY OF CHETEK
220 STOUT ST
CHETEK, WI 54728
Phone: 715-924-4838

Manager

DAN KNAPP
P O BOX 194
CHETEK, WI 54728
Phone: (715) 642-0822

FSS

GREEN BAY FSS (GRB)
Toll Free: 1-800-WX-BRIEF

NOTAM

GRB

Light Schedule

Lights

MIRL RWY 17/35 PRESET ON LOW SS-SR; TO INCR INTST & ACTVT REIL RWY 17 & 35; PAPI RWY 17 & 35; MIRL RWY 17/35 - CTAF.

Beacon

N/A

Wind Indicator

Yes - Lighted

Segmented Cir.

Yes

Landing Fee

Parking

Tie-Down

Int'l Operations

# Single Engine

# Multi Engine

# Jets

# Helicopters

# Military

# Ultralights

Airframe Repair

Minor

Pwrplant Repair

Minor

Bottled Oxygen

None

Bulk Oxygen

None

Other Services

None

Runway 07/25

Dimensions

1490 ft. x 120 ft.

Surface Type

TURF

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 07	Runway 25
True Heading	75°	255°
Traffic Pattern	Left	Left
Markings	NONE	NONE
Markings Condition
Latitude	45° 18' 29"N	45° 18' 32"N
Longitude	91° 38' 34"W	91° 38' 14"W
Elevation	1,048'	1,053'
Threshold Crossing Height	--	--
Visual Glide Path Angle	--	--
Visual Slope Indicator	--	--
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	No	No

Runway 17/35

Dimensions

3401 ft. x 60 ft.

Surface Type

ASPH

Surface Cond

Fair

Treatment

NONE

Rwy Edge Lgts

MED

Pavement Class

Single Wheel

Double Wheel

Double Tandem

Dual Dbl Tand

	Runway 17	Runway 35
True Heading	175°	355°
Traffic Pattern	Left	Left
Markings	NPI	NPI
Markings Condition	GOOD	GOOD
Latitude	45° 18' 37"N	45° 18' 03"N
Longitude	91° 38' 10"W	91° 38' 05"W
Elevation	1,055'	1,055'
Threshold Crossing Height	22 ft. AGL	16 ft. AGL
Visual Glide Path Angle	4°	3°
Visual Slope Indicator	P2L	P2L
Approach Lights
Centerline Lights	No	No
Runway End Identifier Lights	Yes	Yes

A110-3	RY 17/35 MAY NOT BE PLOWED FOR 24 HRS AFT HVY SNOWFALL OR DRIFTING SNOW.
A110-5	RY 07/25 NOT PLOWED FOR SNOW, OPEN TO SKI EQUIPED AIRCRAFT.
A110-6	FOR CD CTC MINNEAPOLIS ARTCC AT 651-463-5588.

CHETEK MUNI/SOUTHWORTH (IATA: Y23) is a public airport located in CHETEK, WI.
